BS023 - #23 Beltservice PVC - 100 White Chevron Top II x FS OR Conveyor Belt

$10.00 IS FOR A PRODUCT SAMPLE
-or-
REQUEST A FREE BELT ASSEMBLY QUOTE

Use [Add to cart] to purchase a sample piece of belting which will put a $10 credit on your account if you decide to order your belt from BeltSmart. Limit 3 per customer or $30.00 total. Product samples are shipped priority mail.

Use [Request a Laced or Endless Belt Quote] to have our customer service work up a quote with mechanical lace, open-ended, or vulcanized endless. Our team of belt specialists are on hand during regular business hours to answer questions and help with any questions you may have.

If you are unsure what your belting is and would like us to identify it, please send us a sample of the belting to the address given in our [about us] page. Include name, company, phone, address and dimensions to 1/8" for width and length.

Applications:
Food Processing Incline Conveying Grains Feeds Fertilizers
Features:

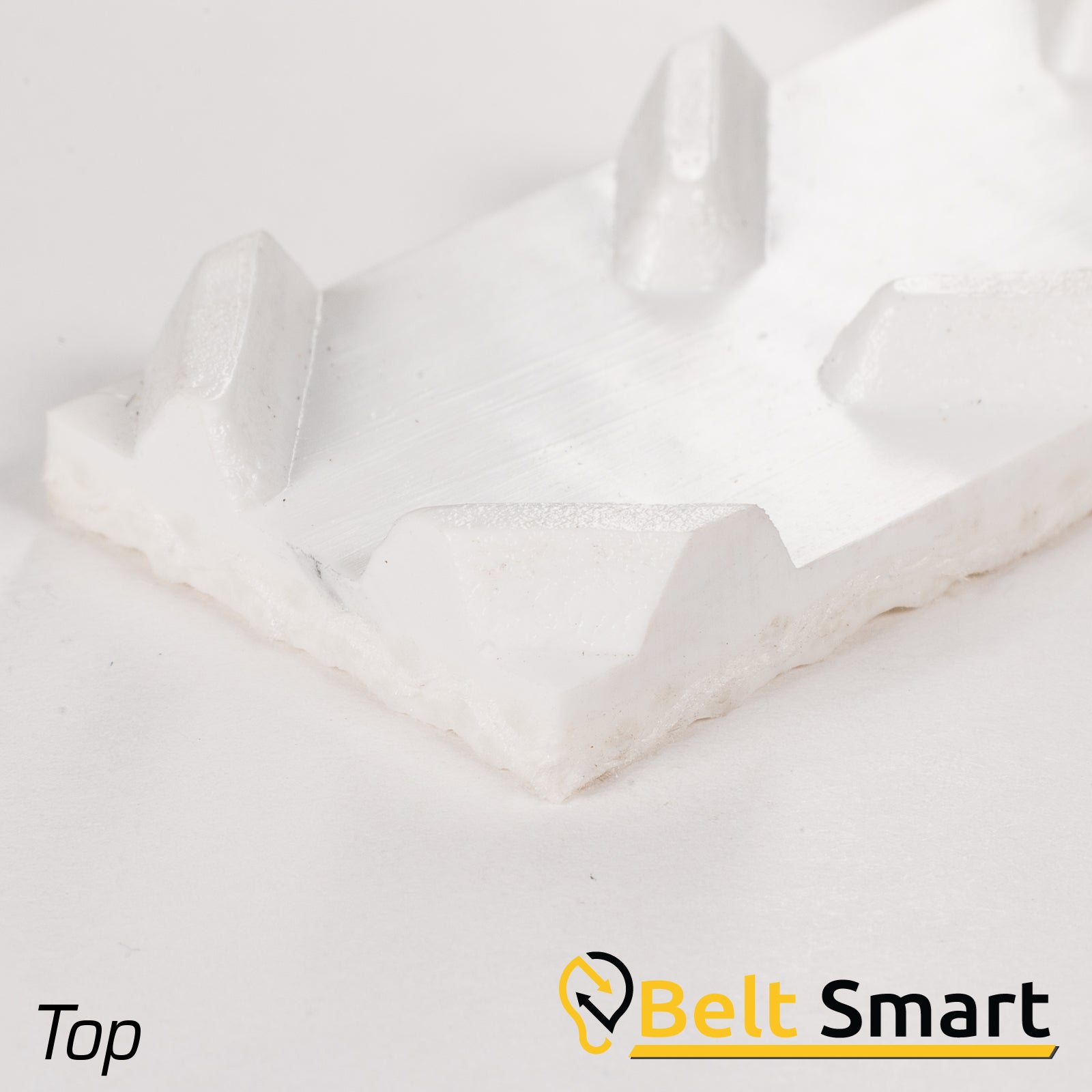

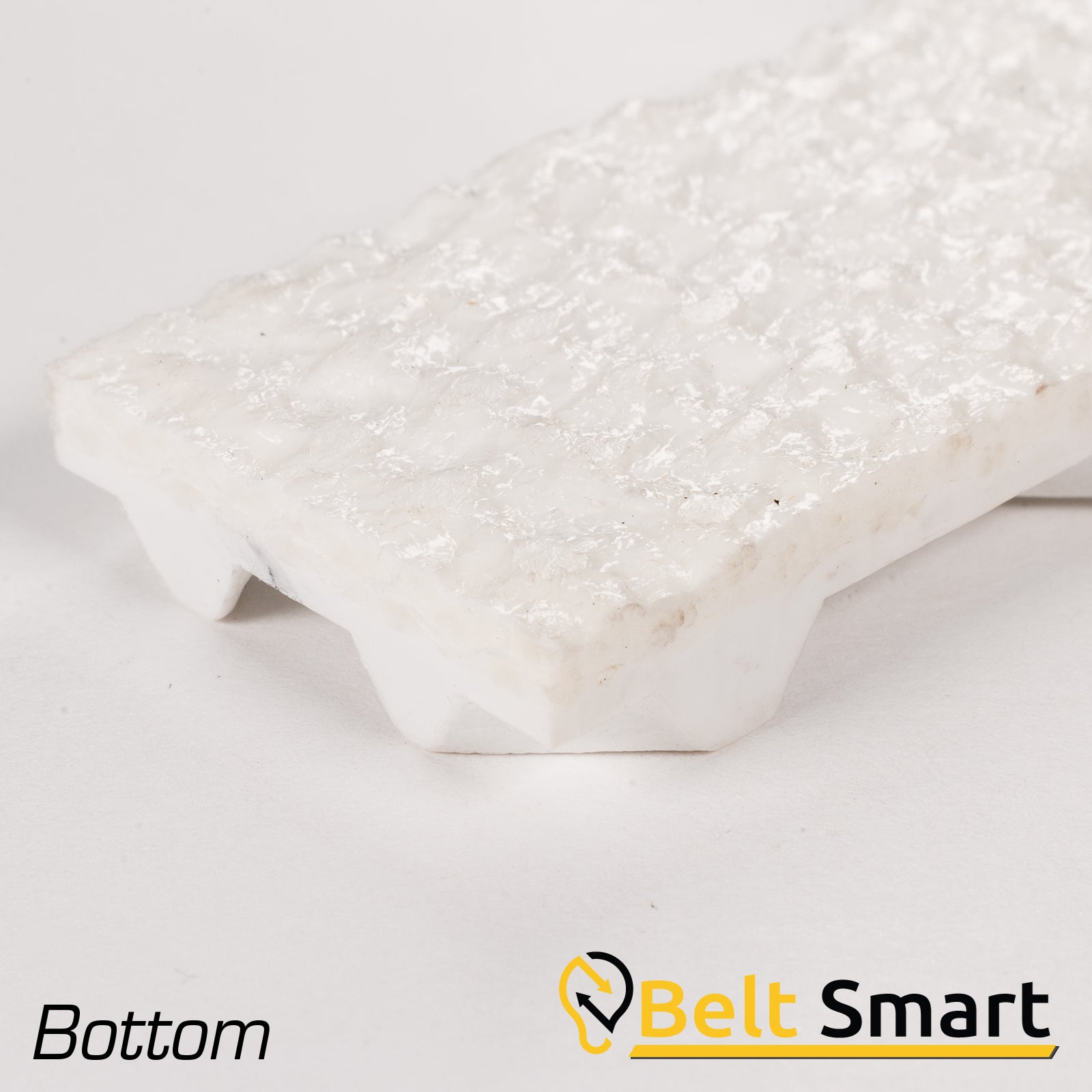

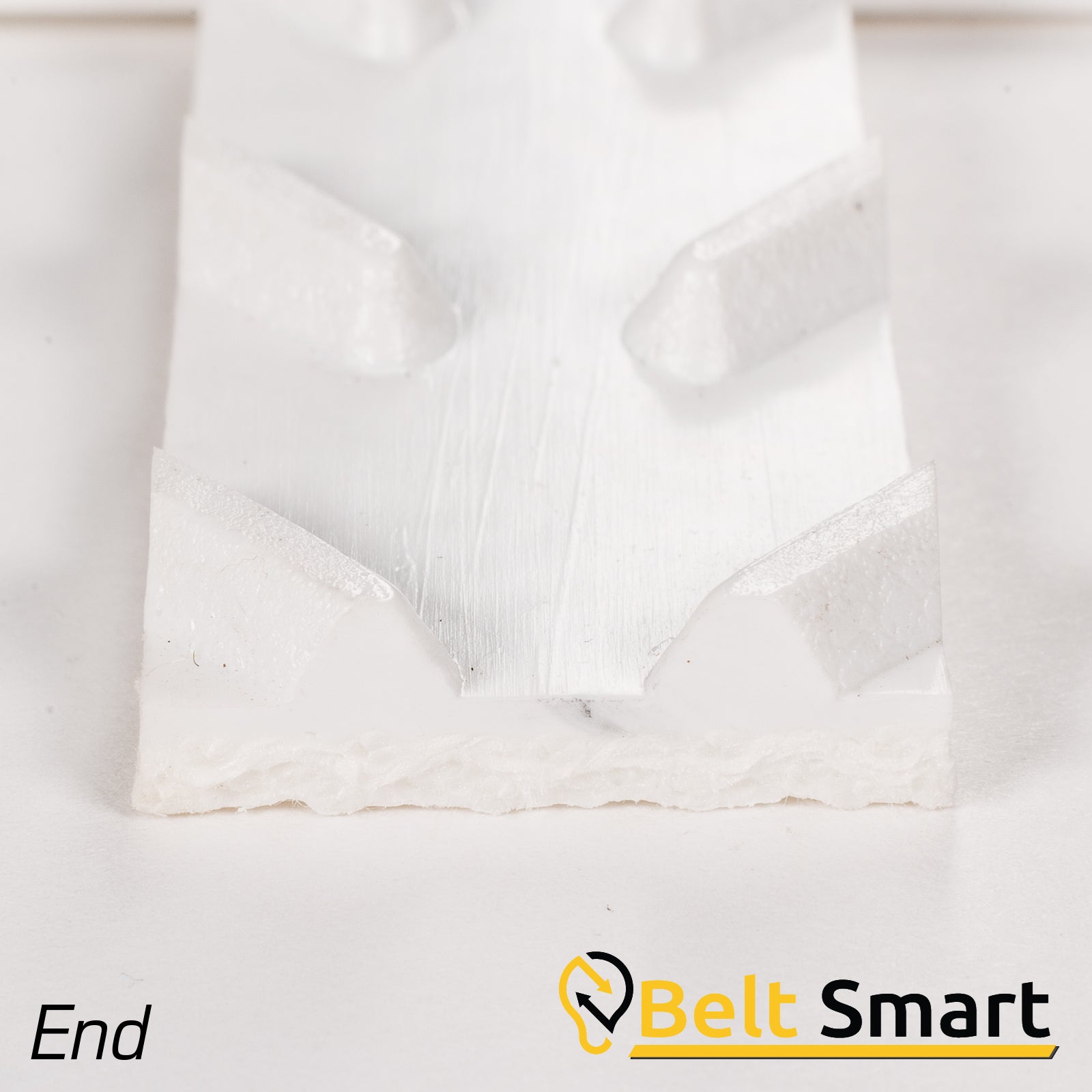

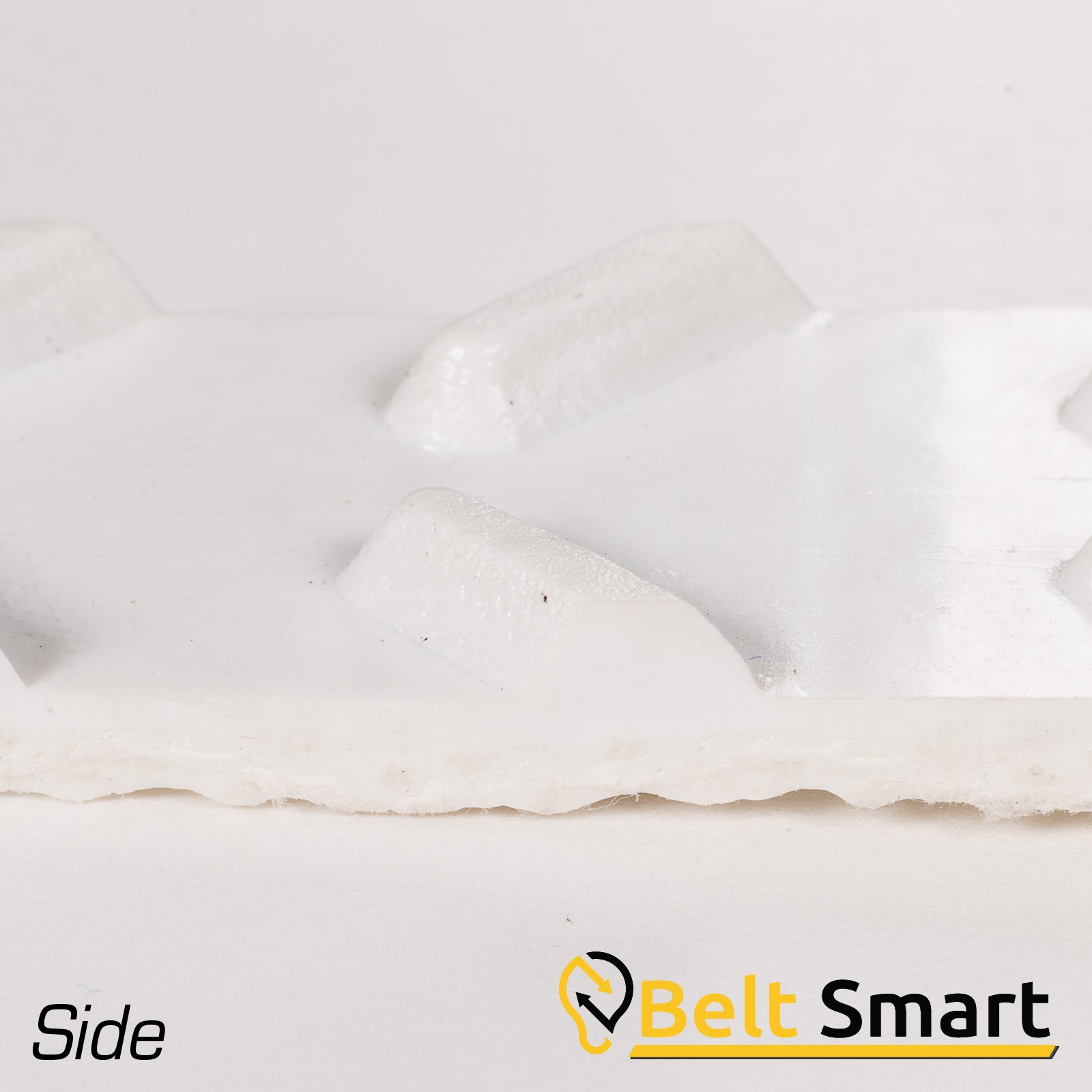

The herringbone pattern of alternating rows of solid PVC chevrons forms a cover highly capable of moving bulk, free-flowing materials Made of PVC with friction surface, this belt is resistant to mineral oil.
Specifications:
FDA Accepted

	PVC - 100 White Chevron Top II x FS OR Pt No.: 23
Thickness	7/32"
Safe Work Load PIW Conveyor	100 lbs.
Safe Work Load PIW Elevator - Allowable	NR
Safe Work Load PIW Elevator - Preferred	NR
Maximum Bucket Projection	NR
Min. Pulley Diameter Conveyor/Elevator	2-1/2" - NR
Temperature Range	0 deg. F / 180 deg. F
Approx. Weight Lbs. Per Inch Width	.089 lbs.
Clipper Lace	#1
Alligator Lace	#7

FS = Friction Surface
