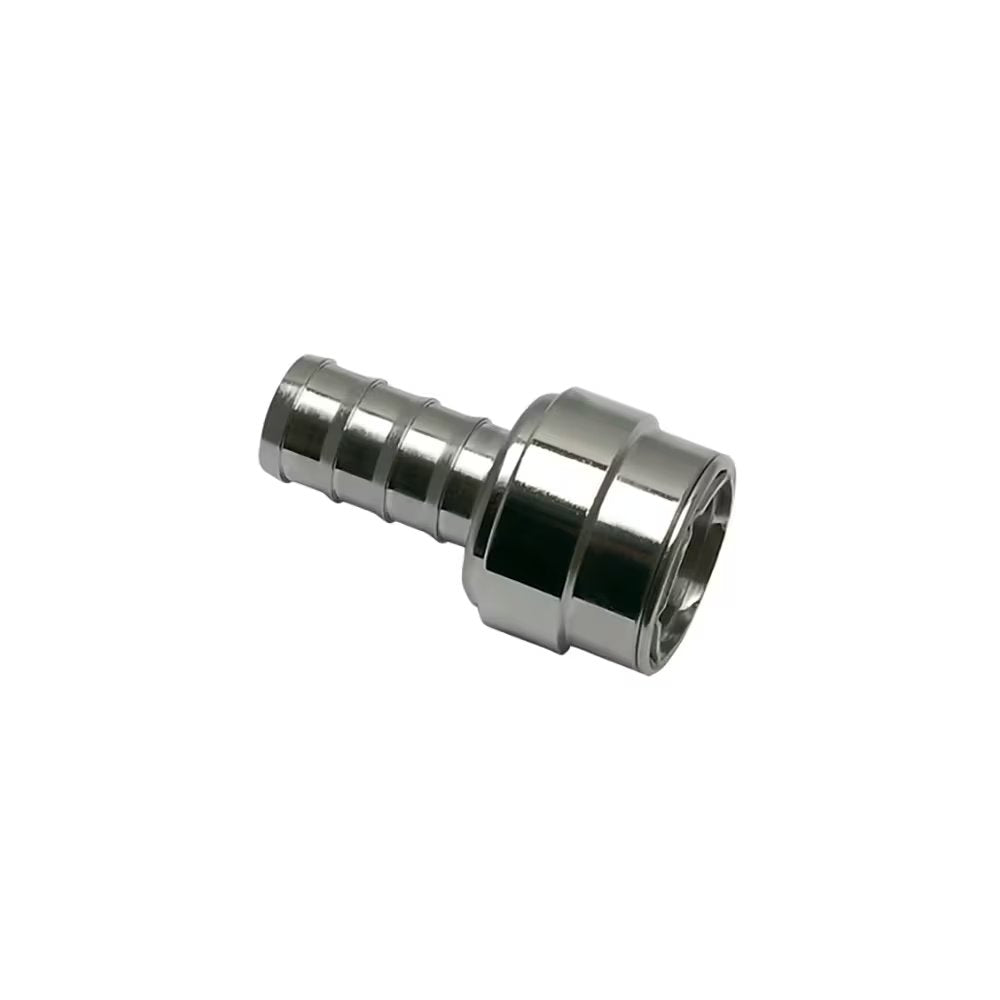

2297 18 20 by Parker | Legris Coupler Quick Disconnect | 19mm Tube Size x 20.7 Hose Barb | 69mm Length | Straight | Nickel-Plated Brass

2297 18 20 by Parker | Legris Coupler Quick Disconnect | 19mm Tube Size x 20.7 Hose Barb | 69mm Length | Straight | Nickel-Plated Brass

Sale price$124.26

by Parker Hannifin
Maxi Series:2297 Coupler without valve, with Barb Connection for Flexible Hose
Buy More, Save More!
Quantity Price Each
20–29 $116.80
30–59 $105.62
60+ $93.20
Discounts applied in cart/checkout.

Product Data:

Series:
  • Maxi Series
Shape:

Straight

Material(s):
  • Nickel-Plated Brass
Maxi Series The robust maxi series is designed for high flow applications and ensure water and compressed air handling.
  • Designed for transmission of water and fluids
  • Very High flow capabilities
  • Ideal for rinsing applications
Working Pressure:
  • up to 20 bar
Material:
  • Coupling: Nickel Plated Brass
  • Plug: Nickel Plated Brass
  • Seals: NBR
Working Temperature:
  • -20°C up to +100°C (NBR)
Flow Rate Air:
  • 8.500 NI/min.
    • (inlet pressure 6 bar, pressure drop 0.6 bar)
Part Number Diameter Nominal (DN) ØD ØD1 G L L1
2297 18 20 19 mm 19 mm 20.7 mm 39.5 mm 69 mm 37 mm

Maxi-series: straight-through = 8500 Nl/min

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
