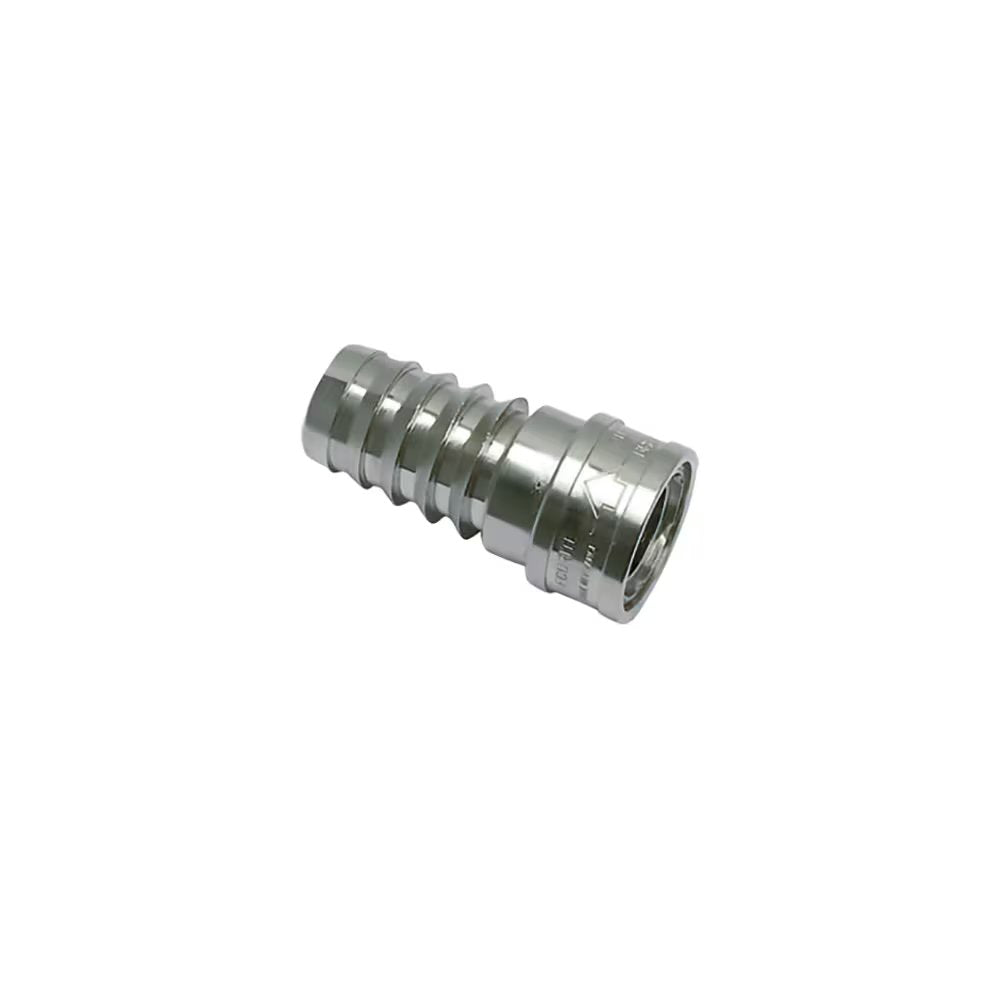

2297 12 15 by Parker | Legris Coupler Quick Disconnect | 15 mm Tube Size x 16.5 mm Hose Barb | 51 mm Length | Straight | Nickel-Plated Brass | Pack of 10

2297 12 15 by Parker | Legris Coupler Quick Disconnect | 15 mm Tube Size x 16.5 mm Hose Barb | 51 mm Length | Straight | Nickel-Plated Brass | Pack of 10

Sale price$248.46

by Parker Hannifin
Midi Series:2297 Coupler without valve, with Barb Connection for Hose

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
20–29 $233.55
30–59 $211.19
60+ $186.35
Discounts applied in cart/checkout.

Product Data:

Series:
  • Midi Series
Shape:

Straight

Material(s):
  • Nickel-Plated Brass
Midi Series Midi Series are adapted for water and compressed air applications. The wide range of plugs many combinations for the end-users.
  • Designed for transmission of water and fluids
  • High flow capabilities
  • Maximum energy efficiency
Working Pressure:
  • up to 20 bar
Material:
  • Coupling: Nickel Plated Brass
  • Plug: Nickel Plated Brass
  • Seals: NBR
Working Temperature:
  • -20°C up to +100°C (NBR)
Flow Rate Air:
  • 2.200 NI/min.
    • (inlet pressure 6 bar, pressure drop 0.6 bar)
Part Number Diameter Nominal (DN) ØD ØD1 G L L1
2297 12 12 12 mm 12 mm 13.5 mm 29 mm 51 mm 27 mm
2297 12 15 12 mm 15 mm 16.5 mm 29 mm 51 mm 27 mm
2297 12 19 12 mm 19 mm 20.5 mm 29 mm 57 mm 33 mm

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
