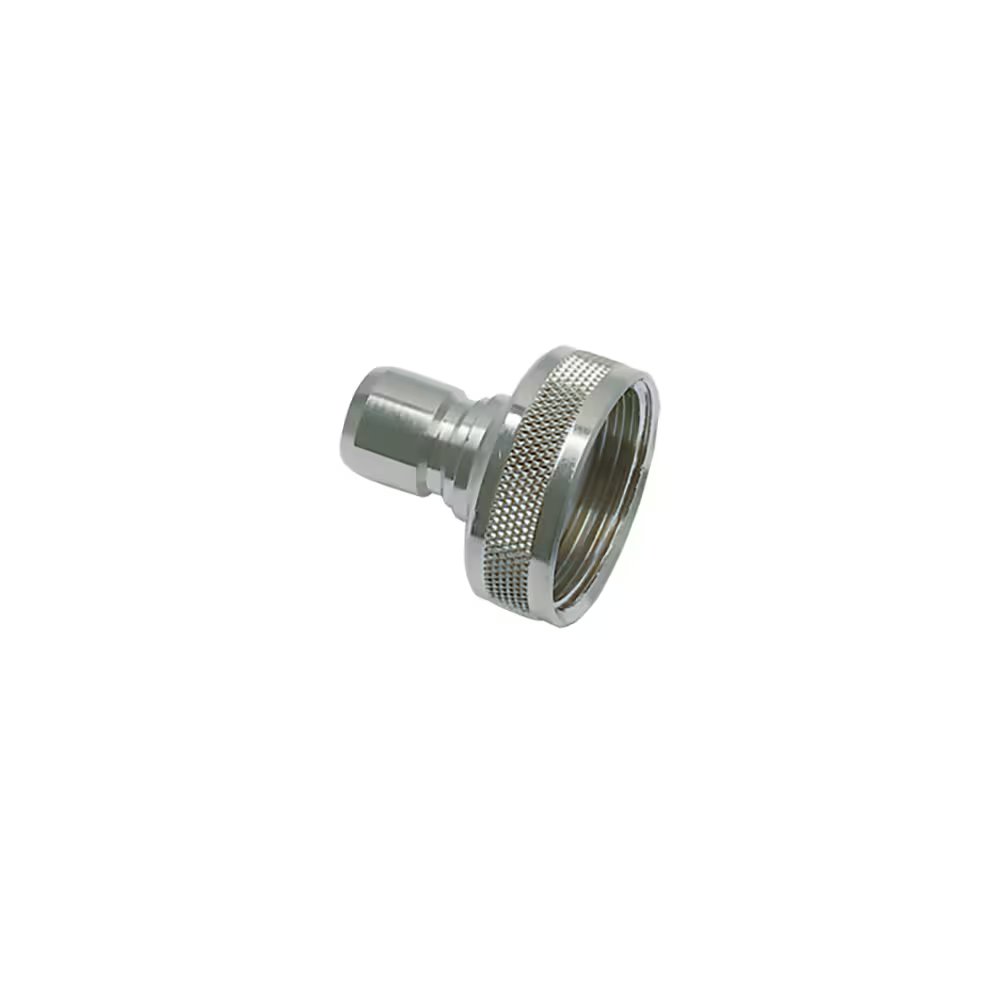

2296 12 34 by Parker | Legris Plug Quick Disconnect | 1" Female BSPP Thread | 36 mm Hex | 36.5 mm Length | Straight | Nickel-Plated Brass | Pack of 10

2296 12 34 by Parker | Legris Plug Quick Disconnect | 1" Female BSPP Thread | 36 mm Hex | 36.5 mm Length | Straight | Nickel-Plated Brass | Pack of 10

Sale price$292.99

by Parker Hannifin
Midi Series:2296 Plug without valve, Female BSPP Thread

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–14 $275.41
15–29 $249.04
30+ $219.74
Discounts applied in cart/checkout.

Product Data:

Series:
  • Midi Series
Shape:

Straight

Material(s):
  • Nickel-Plated Brass
Midi Series Midi Series are adapted for water and compressed air applications. The wide range of plugs many combinations for the end-users.
  • Designed for transmission of water and fluids
  • High flow capabilities
  • Maximum energy efficiency
Working Pressure:
  • up to 20 bar
Material:
  • Coupling: Nickel Plated Brass
  • Plug: Nickel Plated Brass
  • Seals: NBR
Working Temperature:
  • -20°C up to +100°C (NBR)
Flow Rate Air:
  • 2.200 NI/min.
    • (inlet pressure 6 bar, pressure drop 0.6 bar)
Part Number Diameter Nominal (DN) C E G L
2296 12 27 12 mm 3/4" 11 mm 30 mm 38 mm
2296 12 34 12 mm 3/4" 11 mm 36 mm 36.5 mm
