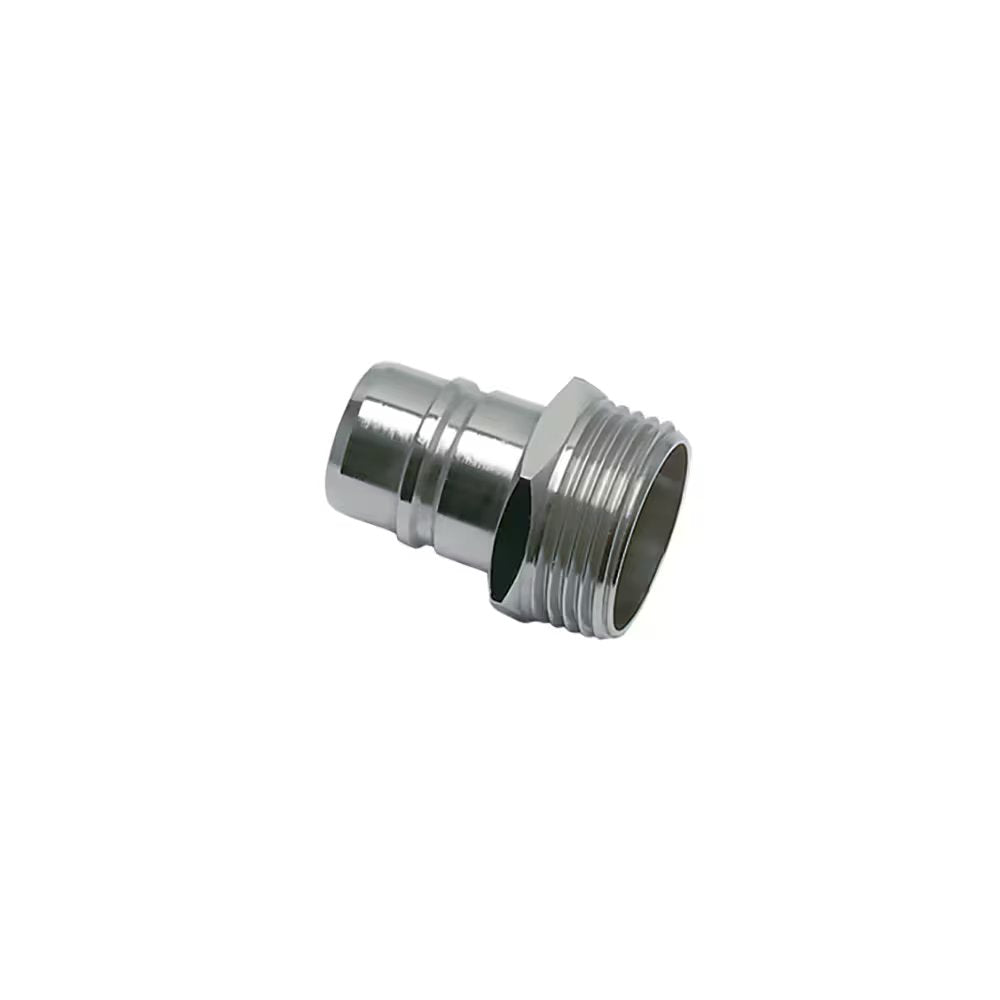

2294 18 34 by Parker | Legris Coupler Quick Disconnect | 1" Male BSPP Thread | 34 mm Hex | 46 mm Length | Straight | Nickel-Plated Brass | Pack of 5

2294 18 34 by Parker | Legris Coupler Quick Disconnect | 1" Male BSPP Thread | 34 mm Hex | 46 mm Length | Straight | Nickel-Plated Brass | Pack of 5

Sale price$194.01

by Parker Hannifin
Maxi Series:2294 Plug without valve, Male BSPP Thread

Package Quantity: 5 Units

Buy More, Save More!
Quantity Price Each
20–29 $182.37
30–59 $164.91
60+ $145.51
Discounts applied in cart/checkout.

Product Data:

Series:
  • Maxi Series
Shape:

Straight

Material(s):
  • Nickel-Plated Brass
Maxi Series The robust maxi series is designed for high flow applications and ensure water and compressed air handling.
  • Designed for transmission of water and fluids
  • Very High flow capabilities
Working Pressure:
  • up to 20 bar
Material:
  • Coupling: Nickel Plated Brass
  • Plug: Nickel Plated Brass
  • Seals: NBR
Working Temperature:
  • -20°C up to +100°C (NBR)
Flow Rate Air:
  • 8.500 NI/min.
    • (inlet pressure 6 bar, pressure drop 0.6 bar)
Part Number Diameter Nominal (DN) C E F L
2294 18 34 19 mm 1" 13 mm 34 mm 46 mm

Probe without Shut-off

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
