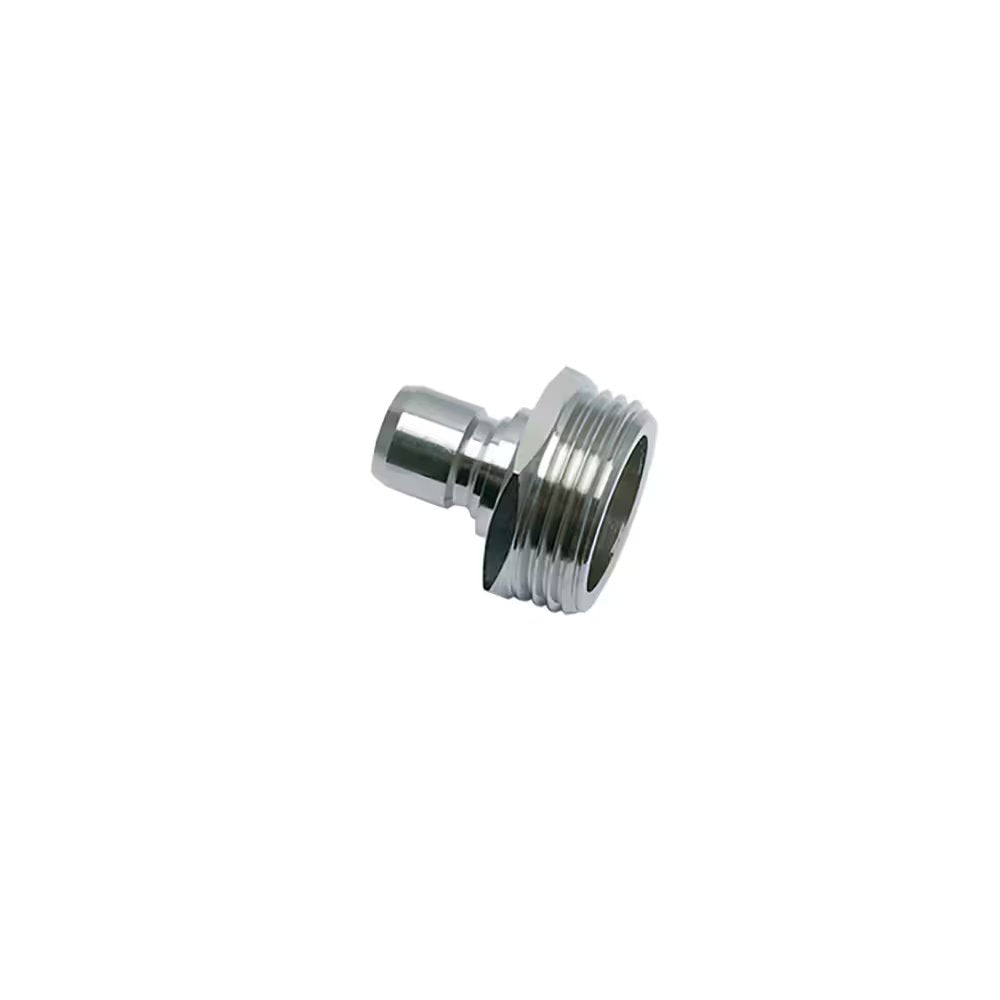

2294 12 21 by Parker | Legris Plug Quick Disconnect | 1/2" Male BSPP Thread | 22 mm Hex | 37 mm Length | Straight | Nickel-Plated Brass | Pack of 10
by Parker Hannifin
Midi Series:2294 Plug without valve, Male BSPP Thread
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–29 | $123.77 |
| 30–59 | $111.92 |
| 60+ | $98.75 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Material(s):
| Midi Series | Midi Series are adapted for water and compressed air applications. The wide range of plugs many combinations for the end-users.
|
|---|---|
| Working Pressure: |
|
| Material: |
|
| Working Temperature: |
|
| Flow Rate Air: |
|
 |
|||||
|---|---|---|---|---|---|
| Part Number | Diameter Nominal (DN) | C | E | F | L |
| 2294 12 17 | 12 mm | 3/8" | 6 mm | 22 mm | 31.5 mm |
| 2294 12 21 | 12 mm | 1/2" | 9.5 mm | 22 mm | 37 mm |
| 2294 12 27 | 12 mm | 3/4" | 13.5 mm | 27 mm | 41 mm |
| 2294 12 34 | 12 mm | 1" | 10.5 mm | 34 mm | 36 mm |
Probe without Shut-off
