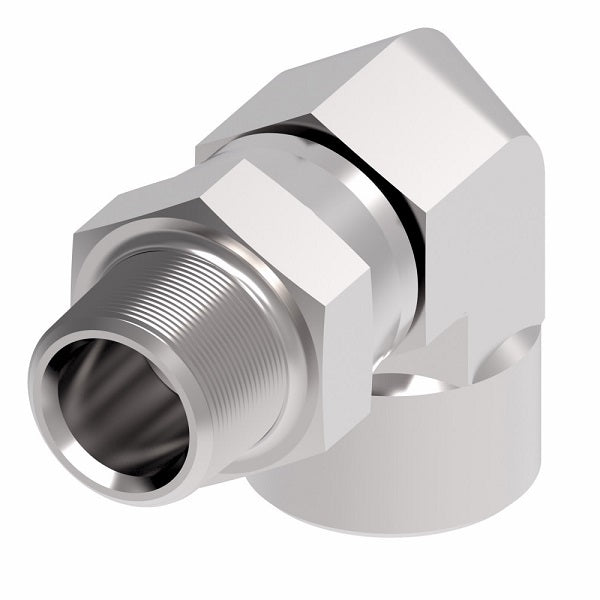

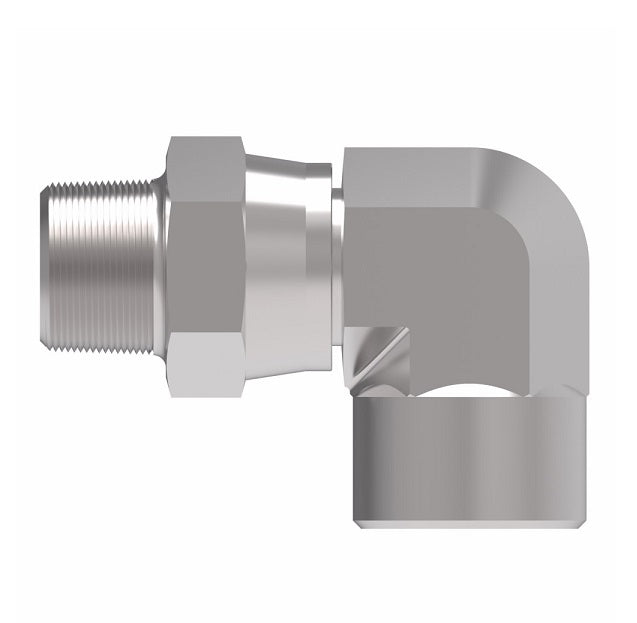

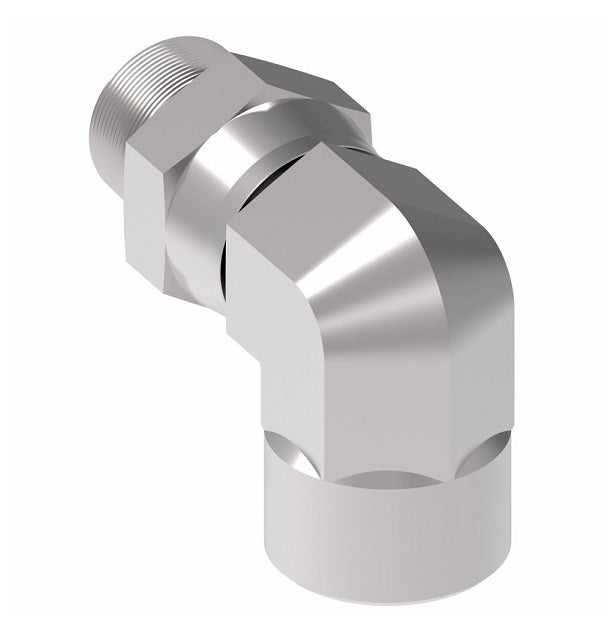

2252-8-8S Aeroquip by Danfoss | External Pipe Swivel/Internal Pipe 90° Elbow Adapter | -08 Male NPTF x -08 Female NPTF | Steel
2252-8-8S Aeroquip by Danfoss | External Pipe Swivel/Internal Pipe 90° Elbow Adapter | -08 Male NPTF x -08 Female NPTF | Steel
2252-8-8S Aeroquip by Danfoss | External Pipe Swivel/Internal Pipe 90° Elbow Adapter | -08 Male NPTF x -08 Female NPTF | Steel

2252-8-8S Aeroquip by Danfoss | External Pipe Swivel/Internal Pipe 90° Elbow Adapter | -08 Male NPTF x -08 Female NPTF | Steel

Sale price$32.08

Aeroquip® by Danfoss
External Pipe Swivel/Internal Pipe
Male NPTF x Female NPTF
90° Elbow

(Formerly Eaton Aeroquip)

In stock
Buy More, Save More!
Quantity Price Each
10–39 $30.16
40–79 $27.27
80+ $24.06
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Ends Configuration:
  • 1/2in Male NPTF
  • 1/2in Female NPTF
Material(s):
  • Steel
Applications:
  • To be used with petroleum or water glycol fluids.
Notes:
  • This adapter is not a rotating union or swivel joint. Care must be exercised to avoid misuse.
Steel Part Number Thread P1 Thread P2 A B
2252-2-2S 1/8-27 1/8-27 1.38" 0.68"
2252-4-4S 1/4-18 1/4-18 1.72" 0.88"
2252-6-6S 3/8-18 3/8-18 1.78" 1.02"
2252-8-8S 1/2-14 1/2-14 2.14" 1.23"
2252-12-12S 3/4-14 3/4-14 2.61" 1.59"
