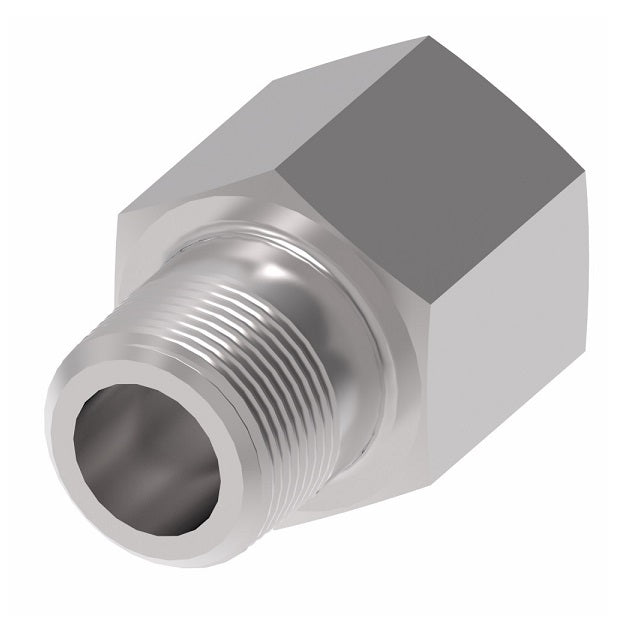

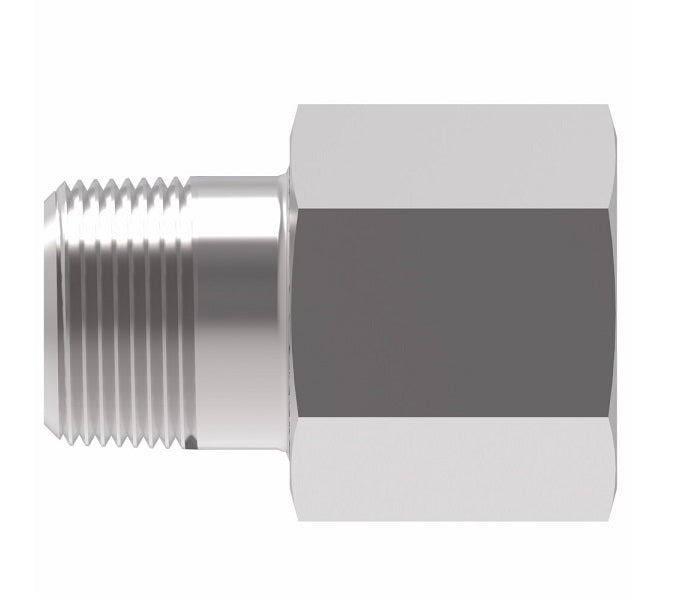

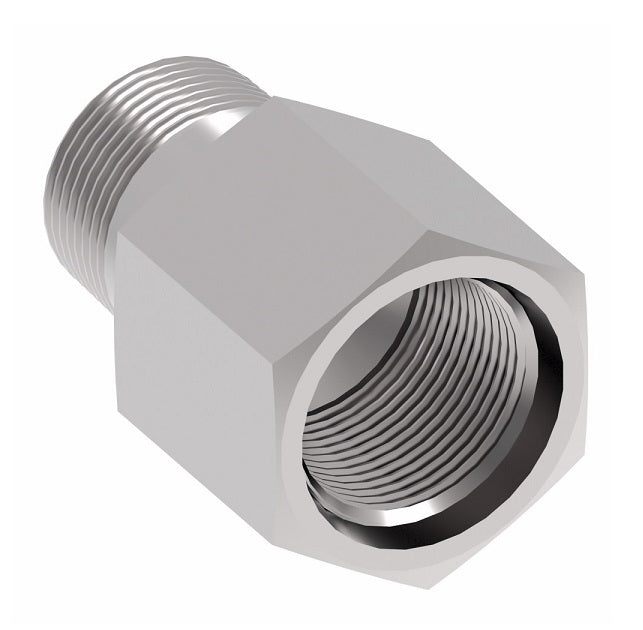

2246-2-4S Aeroquip by Danfoss | External Pipe/Internal SAE ORB Adapter | -02 Male NPTF x -04 Female SAE O-Ring Boss | Steel
2246-2-4S Aeroquip by Danfoss | External Pipe/Internal SAE ORB Adapter | -02 Male NPTF x -04 Female SAE O-Ring Boss | Steel
2246-2-4S Aeroquip by Danfoss | External Pipe/Internal SAE ORB Adapter | -02 Male NPTF x -04 Female SAE O-Ring Boss | Steel

2246-2-4S Aeroquip by Danfoss | External Pipe/Internal SAE ORB Adapter | -02 Male NPTF x -04 Female SAE O-Ring Boss | Steel

Sale price$9.99

Aeroquip® by Danfoss
External Pipe/Internal SAE O-Ring Boss Adapter
Male NPTF x Female SAE O-Ring Boss
Straight

(Formerly Eaton Aeroquip)

In stock
Buy More, Save More!
Quantity Price Each
10–39 $9.39
40–79 $8.49
80+ $7.49
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1/8in Male NPTF
  • 1/4in Female O-Ring Boss
Material(s):
  • Steel
Construction:
  • Buna-N O-Rings are standard.
Part Number
Steel
Buna-N O-Ring		 Thread P Thread T A
2246-2-4S 1/8-27 7/16-20 1.09"
2246-2-5S 1/8-27 1/2-20 1.09"
2246-4-6S 1/4-18 9/16-18 1.36"
2246-6-6S 3/8-18 9/16-18 -
2246-6-8S 3/8-18 3/4-16 1.45"
2246-8-6S 1/2-14 9/16-18 1.60"
2246-8-8S 1/2-14 3/4-16 1.67"
2246-8-10S 1/2-14 7/8-14 1.78"
2246-12-12S 3/4-14 1-1/16-12 1.92"
2246-12-14S 3/4-14 1-3/16-12 1.92"
2246-16-16S 1-11-1/2 1-5/16-12 2.13"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
