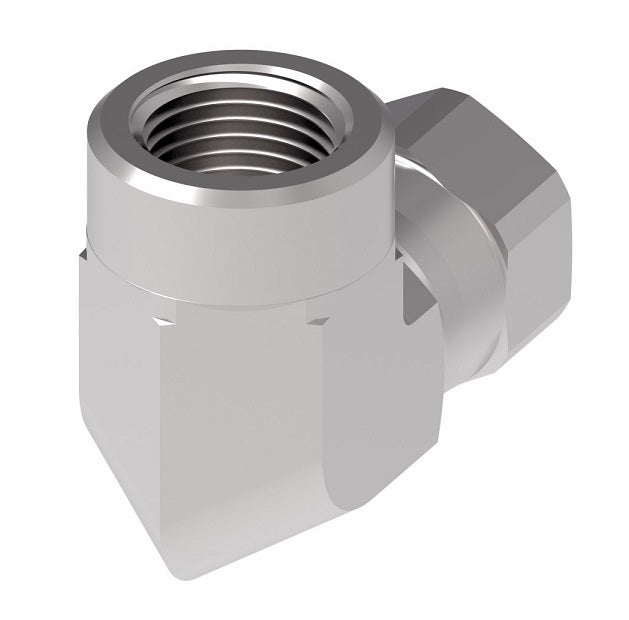

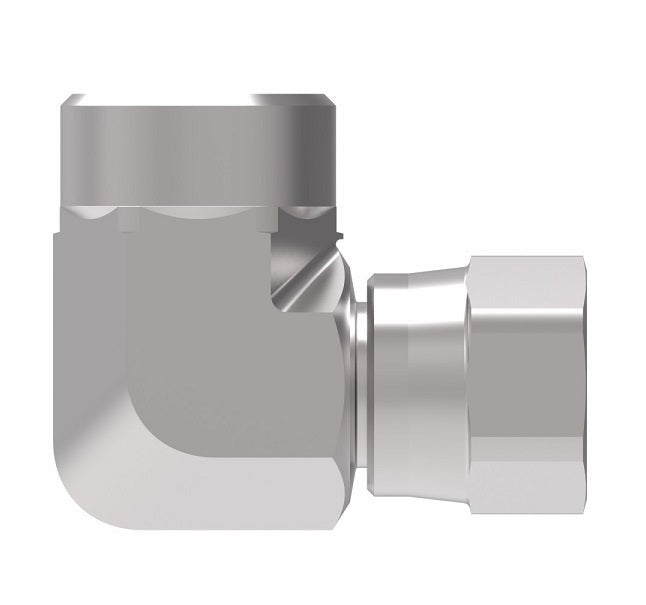

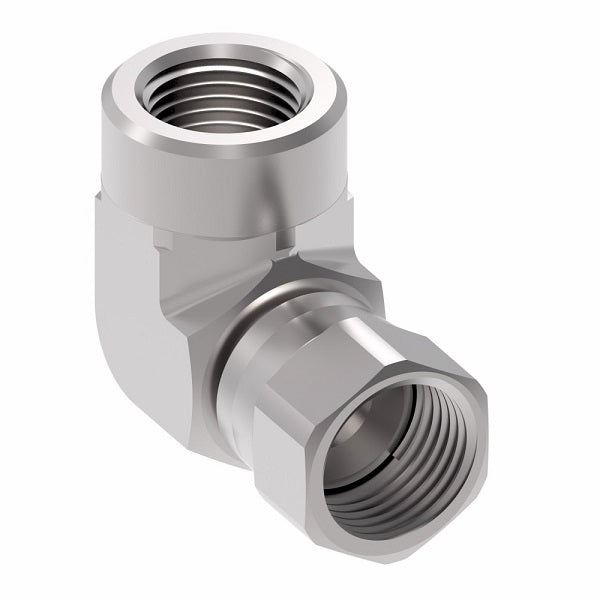

2244-8-8S Aeroquip by Danfoss | Internal Pipe/37° JIC Flare Swivel 90° Elbow Adapter | -08 Female NPTF x -08 Female 37° JIC Flare Swivel | Steel
2244-8-8S Aeroquip by Danfoss | Internal Pipe/37° JIC Flare Swivel 90° Elbow Adapter | -08 Female NPTF x -08 Female 37° JIC Flare Swivel | Steel
2244-8-8S Aeroquip by Danfoss | Internal Pipe/37° JIC Flare Swivel 90° Elbow Adapter | -08 Female NPTF x -08 Female 37° JIC Flare Swivel | Steel

2244-8-8S Aeroquip by Danfoss | Internal Pipe/37° JIC Flare Swivel 90° Elbow Adapter | -08 Female NPTF x -08 Female 37° JIC Flare Swivel | Steel

Sale price$17.63
Buy more, save moreDiscounts applied in cart/checkout.
Applications:
  • To be used with petroleum or water glycol fluids.
Note:
  • This adapter is not a rotating union or swivel joint. Care must be exercised to avoid misuse.
Part Number
Steel 		Tube O.D. Thread P Thread T A B
2244-6-6S 0.38" 3/8-18 9/16-18 1.02" 0.92"
2244-8-8S 0.50" 1/2-14 3/4-16 1.23" 1.08"
2244-8-10S 0.63" 1/2-14 7/8-14 1.23" 1.12"

Additional Product Data:

Shape:

90 Degree

Ends Configuration:
  • 1/2in Female NPTF
  • 1/2in Female JIC
Material(s):
  • Steel

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
