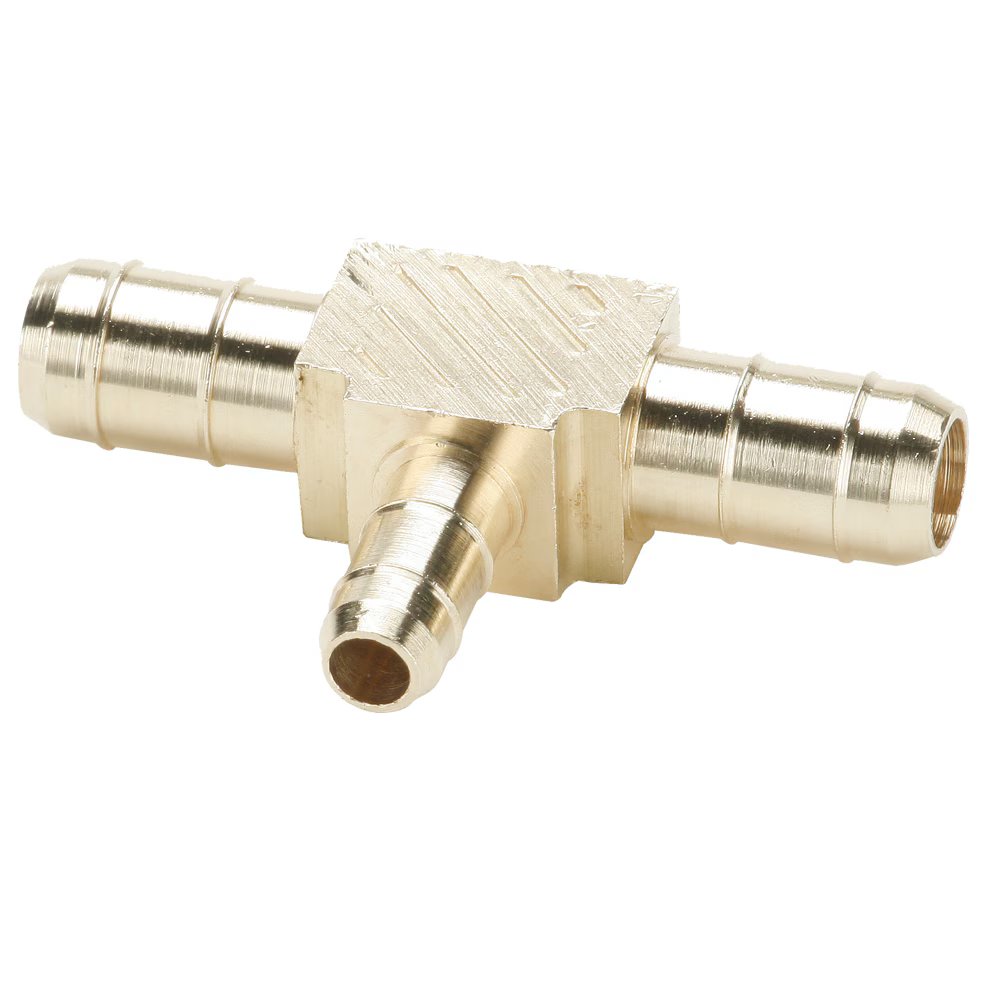

224-8-8-4 by Parker | Dubl-Barb® Fittings | 1/2" to 1/4" Tube OD x .375" to .170" Tube ID | 1.62" Length | Tee | Brass | Pack of 50

224-8-8-4 by Parker | Dubl-Barb® Fittings | 1/2" to 1/4" Tube OD x .375" to .170" Tube ID | 1.62" Length | Tee | Brass | Pack of 50

Sale price$474.64

by Parker Hannifin
Dubl-Barb® Fittings:Union Tee 224 Combination Sizes

Package Quantity: 50 Units

Buy More, Save More!
Quantity Price Each
5–14 $446.16
15–29 $403.44
30+ $355.98
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Dubl-Barb®
Series:
  • 224 Series
Shape:

Tee
Product Features:
  • Compact
  • One piece
  • No clamp required
  • Good vibration resistance
Markets:
  • Pneumatic
  • Environmental control
Applications:
  • Pneumatic Systems
  • Climate Control
  • Humidifiers
  • Filters
Specification:
Temperature Range: See Chart Below
Pressure Range: See Chart Below
Compatible Tubing:
  • Polyethylene
Part Number Tube OD Tube ID L M N Flow Diameter (D) Flow Diameter (D1)
224-4-4-5/32 1/4" X 5/32" .170" X .096" 1.25" .63" .50" .120" .062"
224-6-6-5/32 3/8" X 5/32" .250" X .096" 1.38" .69" .50" .187" .062"
224-6-6-4 3/8" X 1/4" .250" X .170" 1.38" .69" .62" .187" .120"
224-8-8-4 1/2" X 1/4" .375" X .170" 1.62" .81" .65" .312" .120"
224-8-8-6 1/2" X 3/8" .375" X .250" 1.62" .81" .69" .312" .187"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
