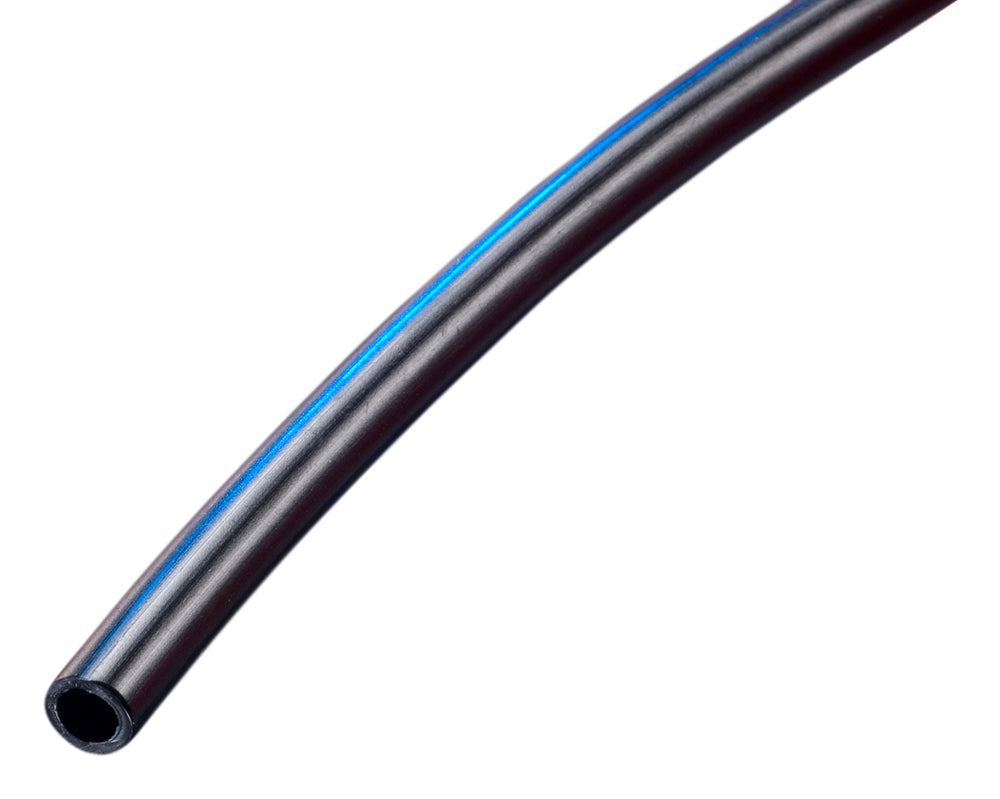

221-0462X2K Kuri-Tec by Kuriyama | 221 Series | Linear Low Density Industrial Grade Polyethylene Tubing | 1/4" OD | .125" ID | .062" Wall Thickness | Black | 2000ft Length

221-0462X2K Kuri-Tec by Kuriyama | 221 Series | Linear Low Density Industrial Grade Polyethylene Tubing | 1/4" OD | .125" ID | .062" Wall Thickness | Black | 2000ft Length

Sale price$363.47

Kuri Tec® by Kuriyama
221 Series | Linear Low Density Industrial Grade Polyethylene Tubing

LLDPE industrial grade colored tubing for general industrial applications.

Package Quantity: 2000 Foot

Buy More, Save More!
Quantity Price Each
5–14 $341.66
15–29 $308.95
30+ $272.60
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Kuri Tec
Series:
  • 221 Series
Color(s):
  • Black
General Applications:
  • Transfer of air and liquids in industrial applications.
  • Humidifier fill lines.
  • For outdoor uses where exposure to sunlight occurs.
  • Air conditioning drain lines.
  • Instrument air lines.
Construction:
  • Linear low density polyethylene tubing - black color in compliance with RoHS(16) requirements.
Service Temperature Range:
  • -50°F (-45°C) to +140°F (+60°C)
Features and Advantages:
  • Economical and lightweight.
  • LLDPE resin provides excellent environmental stress crack resistance.
  • Resistant to sunlight and other forms of ultra-violet radiation.
  • Chemically inert.
  • Excellent resistance to solvents.
  • Phthalate Free!
Specifications:
  • RoHS
Notes:
  • Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
Part Number Color Nominal OD Nominal ID Nominal Wall Max. Working
Pressure		 Approx. wt
per Pkg.
in mm in mm in mm @70°F
(20°C)		 @122°F
(50°C)
221-0440X2K Black 1/4" 6.4mm 0.170" 4.3mm 0.040" 1.0mm 140 PSI 60 PSI 22 lbs.
2231-0440X1K Yellow 1/4" 6.4mm 0.170" 4.3mm 0.040" 1.0mm 140 PSI 60 PSI 11 lbs.
2232-0440X1K Orange 1/4" 6.4mm 0.170" 4.3mm 0.040" 1.0mm 140 PSI 60 PSI 11 lbs.
2234-0440X1K Red 1/4" 6.4mm 0.170" 4.3mm 0.040" 1.0mm 140 PSI 60 PSI 11 lbs.
2236-0440X1K Blue 1/4" 6.4mm 0.170" 4.3mm 0.040" 1.0mm 140 PSI 60 PSI 11 lbs.
2237-0440X1K Green 1/4" 6.4mm 0.170" 4.3mm 0.040" 1.0mm 140 PSI 60 PSI 11 lbs.
221-0462X2K Black 1/4" 6.4mm 0.125" 3.1mm 0.062" 1.6mm 150 PSI 75 PSI 30 lbs.
221-0562X15C Black 5/16" 7.9mm 0.188" 4.8mm 0.062" 1.6mm 150 PSI 75 PSI 30 lbs.
221-0662X500 Black 3/8" 9.5mm 0.250" 6.4mm 0.062" 1.6mm 125 PSI 50 PSI 13 lbs.
221-0662X1K Black 3/8" 9.5mm 0.250" 6.4mm 0.062" 1.6mm 125 PSI 50 PSI 25 lbs.
221-0862X500 Black 1/2" 12.7mm 0.375" 9.5mm 0.062" 1.6mm 100 PSI 35 PSI 18 lbs.
221-1062X500 Black 5/8" 15.9mm 0.500" 12.7mm 0.062" 1.6mm 75 PSI 25 PSI 23 lbs.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
