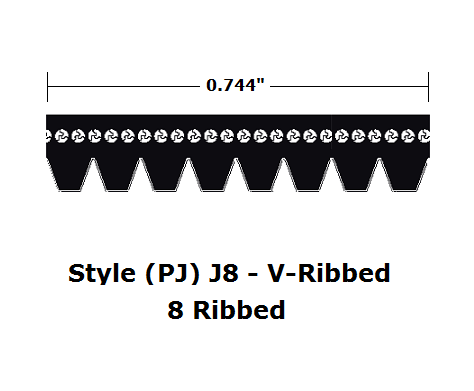

220J8 by Bestorq | V- Ribbed Belt | 8 Ribs | J8 Section | 22" O.C.
V-Ribbed Belts - (PJ) J Style - J8 - 8 Ribbed
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $15.37 |
| 40–79 | $13.90 |
| 80+ | $12.26 |
Discounts applied in cart/checkout.
220J8 by Bestorq | V- Ribbed Belt | 8 Ribs | J8 Section | 22" O.C.
Sale price$16.35
Product Data:
Series:
Belt Cross Section:
J8
Belt O.C.:
22"
| Overview: | |||
|---|---|---|---|
|
|||
| Features: | |||
|
|||
| Specifications: | |||
|
| Part Number | Belt Thickness (in) |
Rib Depth (Truncated Tip) (in) |
Pitch Rib-to-Rib (in) |
Top Width (in) |
Number of Ribs | Outside Circumference (O.C.) (in) |
|---|---|---|---|---|---|---|
| 130J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 13" |
| 140J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 14" |
| 150J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 15" |
| 160J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 16" |
| 165J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 16.5" |
| 170J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 17" |
| 180J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 18" |
| 187J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 18.7" |
| 190J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 19" |
| 195J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 19.5" |
| 200J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 20" |
| 210J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 21" |
| 217J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 21.7" |
| 220J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 22" |
| 230J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 23" |
| 240J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 24" |
| 250J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 25" |
| 260J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 26" |
| 270J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 27" |
| 280J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 28" |
| 287J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 28.7" |
| 290J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 29" |
| 300J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 30" |
| 310J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 31" |
| 320J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 32" |
| 330J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 33" |
| 340J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 34" |
| 350J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 35" |
| 352J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 35.2" |
| 360J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 36" |
| 369J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 36.9" |
| 370J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 37" |
| 374J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 37.4" |
| 378J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 37.8" |
| 380J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 38" |
| 390J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 39" |
| 392J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 39.2" |
| 400J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 40" |
| 402J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 40.2" |
| 410J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 41" |
| 417J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 41.7" |
| 420J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 42" |
| 425J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 42.5" |
| 427J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 42.7" |
| 430J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 43" |
| 435J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 43.5" |
| 437J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 43.7" |
| 440J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 44" |
| 442J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 44.2" |
| 445J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 44.5" |
| 447J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 44.7" |
| 450J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 45" |
| 457J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 45.7" |
| 460J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 46" |
| 466J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 46.6" |
| 470J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 47" |
| 472J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 47.2" |
| 480J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 48" |
| 485J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 48.5" |
| 490J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 49" |
| 497J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 49.7" |
| 500J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 50" |
| 502J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 50.2" |
| 504J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 50.4" |
| 506J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 50.6" |
| 510J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 51" |
| 512J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 51.2" |
| 515J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 51.5" |
| 518J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 51.8" |
| 520J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 52" |
| 525J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 52.5" |
| 530J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 53" |
| 540J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 54" |
| 547J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 54.7" |
| 550J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 55" |
| 553J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 55.3" |
| 560J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 56" |
| 567J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 56.7" |
| 580J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 58" |
| 610J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 61" |
| 620J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 62" |
| 630J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 63" |
| 640J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 64" |
| 650J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 65" |
| 655J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 65.5" |
| 690J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 69" |
| 730J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 73" |
| 740J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 74" |
| 750J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 75" |
| 890J8 | 0.140" | 0.065" | 0.092" | 0.744" | 8 | 89" |
