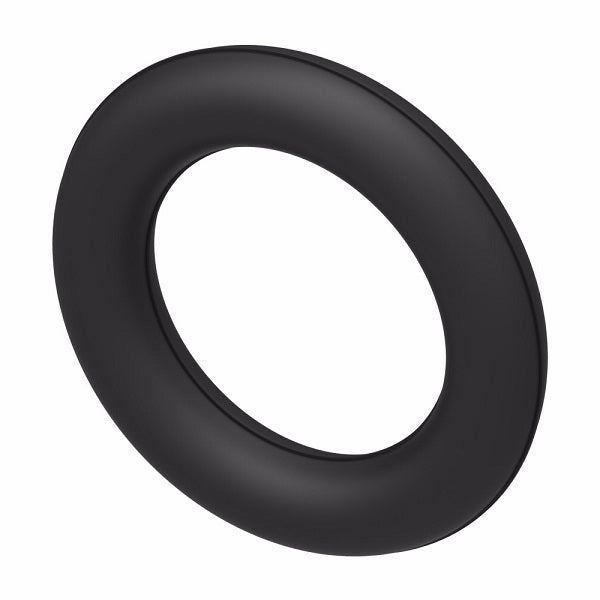

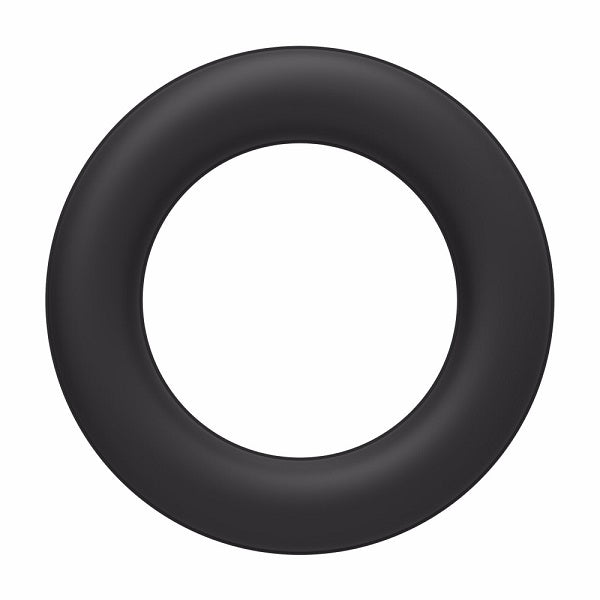

22068-10 Aeroquip by Danfoss | -10 Viton O-Ring for SAE O-Ring Boss Fittings (ORB) | 5/8" Tube Size
Minimum Order Quantity: 5 units
Aeroquip® by Danfoss
O-Ring for SAE O-Ring Boss Fittings (ORB)
(Formerly Eaton Aeroquip)
Product Data:
Shape:
No Orientation
Seal Material(s):
| Technical Info: | |||
|---|---|---|---|
| O-Ring Base Part Number |
Material | Operating Temperature range |
|---|---|---|
| 22617- (Standard) |
Buna-N Nitrile rubber 90 Durometer |
-30°F to +250°F (-34°C to +121°C) |
| 22033- | EPDM Ethylene propylene diene monomer |
-65°F to +212°F (-55°C to +100°C) |
| 22068- | Viton* Fluoroelastomer 90 Durometer |
-15°F to +400°F (-25°C to +205°C) |
| 22012- | Buna-N Low temperature nitrile rubber 90 Durometer |
-65°F to +225°F (-55°C to +107°C) |
 |
||||||
|---|---|---|---|---|---|---|
| Buna-N (Nitrile) Part Number |
EPDM Part Number |
Viton Part Number |
Low Temperature Buna-N (Nitrile) Part Number |
Tube Size | A | E |
| 22617-1 | - | - | - | -01 (1/16") | 0.185" | 0.056" |
| 22617-2 | - | - | - | -02 (1/8") | 0.239" | 0.064" |
| 22617-3 | - | - | 22012-3 | -03 (3/16") | 0.301" | 0.064" |
| 22617-4 | 22033-4 | 22068-4 | 22012-4 | -04 (1/4") | 0.351" | 0.072" |
| 22617-5 | - | 22068-5 | 22012-5 | -05 (5/16") | 0.414" | 0.072" |
| 22617-6 | 22033-6 | 22068-6 | 22012-6 | -06 (3/8") | 0.468" | 0.078" |
| 22617-7 | - | - | - | -07 (7/16") | 0.530" | 0.082" |
| 22617-8 | 22033-8 | 22068-8 | 22012-8 | -08 (1/2") | 0.755" | 0.097" |
| 22617-10 | 22033-10 | 22068-10 | - | -10 (5/8") | 0.755" | 0.097" |
| 22617-12 | 22033-12 | 22068-12 | 22012-12 | -12 (3/4") | 0.924" | 0.116" |
| 22617-14 | - | - | 22012-14 | -14 (7/8") | 1.048" | 0.116" |
| 22617-16 | 22033-16 | 22068-16 | 22012-16 | -16 (1") | 1.171" | 0.116" |
| 22617-20 | - | 22068-20 | 22012-20 | -20 (1-1/4") | 1.475" | 0.118" |
| 22617-24 | - | 22068-24 | - | -24 (1-1/2") | 1.720" | 0.118" |
| 22617-32 | - | - | - | -32 (2") | 2.337" | 0.118" |
* Viton is a trademark of The Chemours Company FC, LLC
