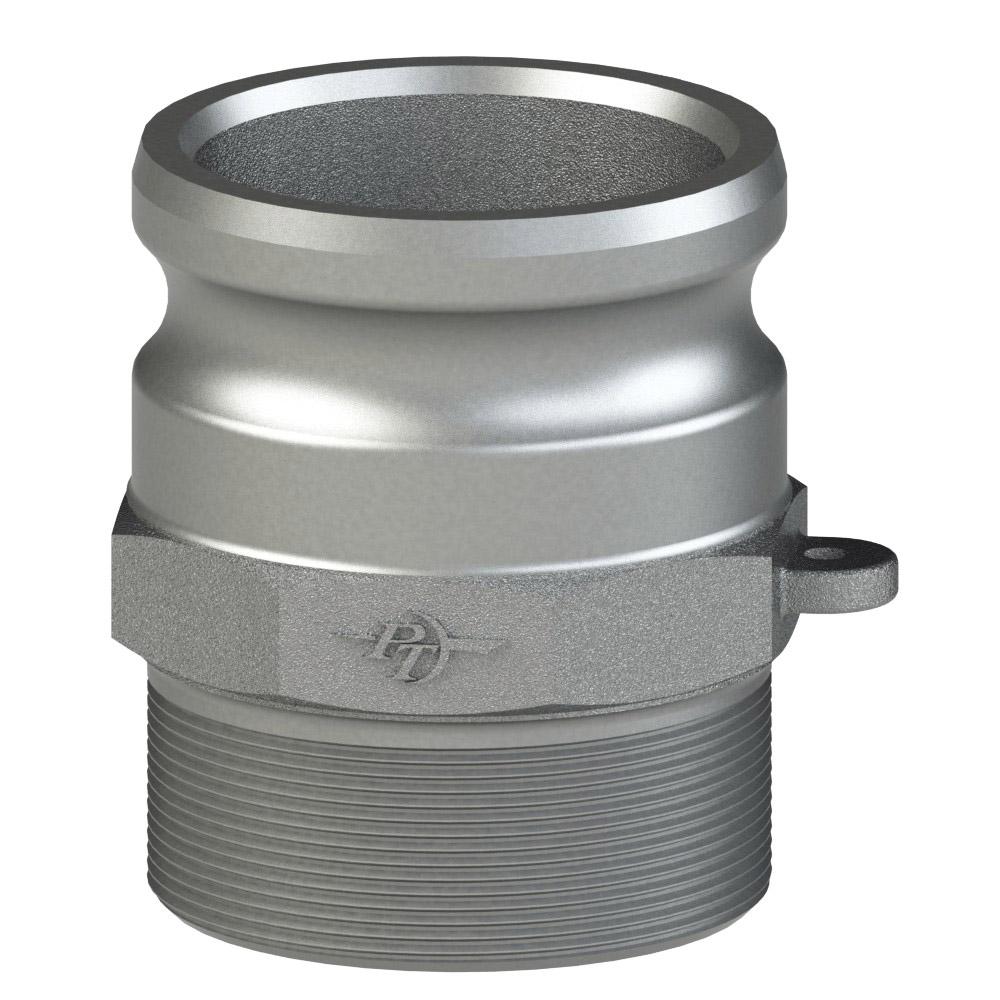

2200610 (10F) by PT-Coupling | Corrosion Resistant Cam & Groove Adapter | Type F | 1" Adapter x 1" Male NPT | Monel
PT Coupling
Corrosion Resistant Cam & Groove (Camlock) Adapter | Type F | Adapter x Male NPT | Monel
These corrosion resistant cam & groove couplings are designed for acid applications in highly corrosive media including hydrochloric acid and sulfuric acid.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $129.40 |
| 20–59 | $117.01 |
| 60+ | $103.25 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Cam & Groove Type:
Type F
Ends Configuration:
Material(s):
| Features & Applications: | |||
|---|---|---|---|
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Name |
Item # | Adapter Size |
Male NPT Thread |
Overall Length (C) |
Exposed Length (D) |
Inside Diameter (E) |
Max. Across Corners (F) |
Chain Lug Extension (G) |
Max. Allowable Working Press. (PSI)* |
| 10F | 2200610 | 1" | 1" | 2.89" | 1.99" | 0.85" | 1.75" | 0.34" | 250 PSI |
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
