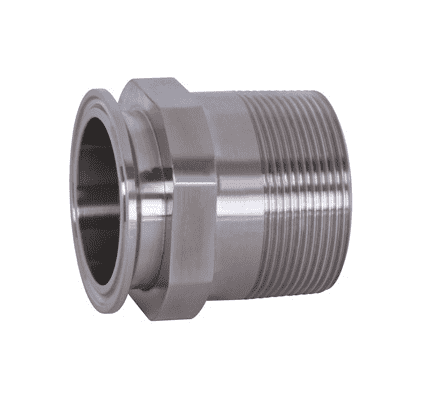

21MP-G400250 Dixon Valve 304 Stainless Steel Sanitary Clamp x Male NPT Adapter - 4" Tube OD - 2-1/2" NPT
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
| Part Number | Tube OD | Male NPT Size | Dimensions
|
Weight (Lbs.) | |
|---|---|---|---|---|---|
| A | B | ||||
| 21MP-G10025 | 1" | 1/4" | 2.160" | - | 1.0000 |
| 21MP-G100375 | 1" | 3/8" | 2.160" | - | 0.2400 |
| 21MP-G10050 | 1" | 1/2" | 2.190" | .782" | 0.8800 |
| 21MP-G10075 | 1" | 3/4" | 2.190" | .794" | 0.6100 |
| 21MP-G100 | 1" | 1" | 2.250" | 0.985" | 0.7300 |
| 21MP-G100125 | 1" | 1-1/4" | 2.440" | 1.009" | 1.1900 |
| 21MP-G100150 | 1" | 1-1/2" | 2.440" | 1.025" | 1.1100 |
| 21MP-G100200 | 1" | 2" | 2.630" | 1.058" | 2.3600 |
| 21MP-G15025 | 1-1/2" | 1/4" | 2.160" | - | 0.9450 |
| 21MP-G150375 | 1-1/2" | 3/8" | 2.160" | 0.600" | 0.7900 |
| 21MP-G15050 | 1-1/2" | 1/2" | 2.190" | 0.782" | 0.2500 |
| 21MP-G15075 | 1-1/2" | 3/4" | 2.190" | 0.794" | 0.5600 |
| 21MP-G150100 | 1-1/2" | 1" | 2.440" | 0.985" | 0.6200 |
| 21MP-G150125 | 1-1/2" | 1-1/4" | 2.440" | 1.009" | 0.5700 |
| 21MP-G150 | 1-1/2" | 1-1/2" | 2.250" | 1.025" | 0.8500 |
| 21MP-G150200 | 1-1/2" | 2" | 2.630" | 1.058" | 1.7000 |
| 21MP-G150250 | 1-1/2" | 2-1/2" | 3.280" | - | 1.2500 |
| 21MP-G20050 | 2" | 1/2" | 2.190" | 0.782" | 1.6500 |
| 21MP-G20075 | 2" | 3/4" | 2.190" | 0.794" | 1.7400 |
| 21MP-G200100 | 2" | 1" | 2.470" | 0.985" | 0.8200 |
| 21MP-G200150 | 2" | 1-1/2" | 2.630" | 1.009" | 0.7400 |
| 21MP-G200125 | 2" | 1-1/4" | - | - | 1.1650 |
| 21MP-G200 | 2" | 2" | 2.640" | 1.058" | 1.3100 |
| 21MP-G200250 | 2" | 2-1/2" | 3.130" | - | 2.3500 |
| 21MP-G200300 | 2" | 3" | 3.50" | - | 4.6900 |
| 21MP-G200400 | 2" | 4" | 3.50" | - | 1.8700 |
| 21MP-G250100 | 2-1/2" | 1" | 2.780" | 0.782" | 1.8500 |
| 21MP-G250150 | 2-1/2" | 1-1/2" | 2.780" | 1.025" | 1.8400 |
| 21MP-G250200 | 2-1/2" | 2" | 2.780" | 1.058" | 1.6000 |
| 21MP-G250 | 2-1/2" | 2-1/2" | 2.880" | 1.571" | 1.5650 |
| 21MP-G250300 | 2-1/2" | 3" | 3.690" | - | 4.0000 |
| 21MP-G300150 | 3" | 1-1/2" | 3.000" | 1.009" | 3.9200 |
| 21MP-G300200 | 3" | 2" | 3.000" | 1.058" | 2.9350 |
| 21MP-G300250 | 3" | 2-1/2" | 3.000" | - | 1.5000 |
| 21MP-G300 | 3" | 3" | 3.070" | 1.634" | 2.4600 |
| 21MP-G300400 | 3" | 4" | 3.500" | - | 6.6500 |
| 21MP-G400250 | 4" | 2-1/2" | - | - | 2.8800 |
| 21MP-G400300 | 4" | 3" | 3.810" | - | 2.8600 |
| 21MP-G400 | 4" | 4" | 3.160" | 1.734" | 3.4900 |
| 21MP-G600 | 6" | 6" | 4.500" | - | 7.9500 |
