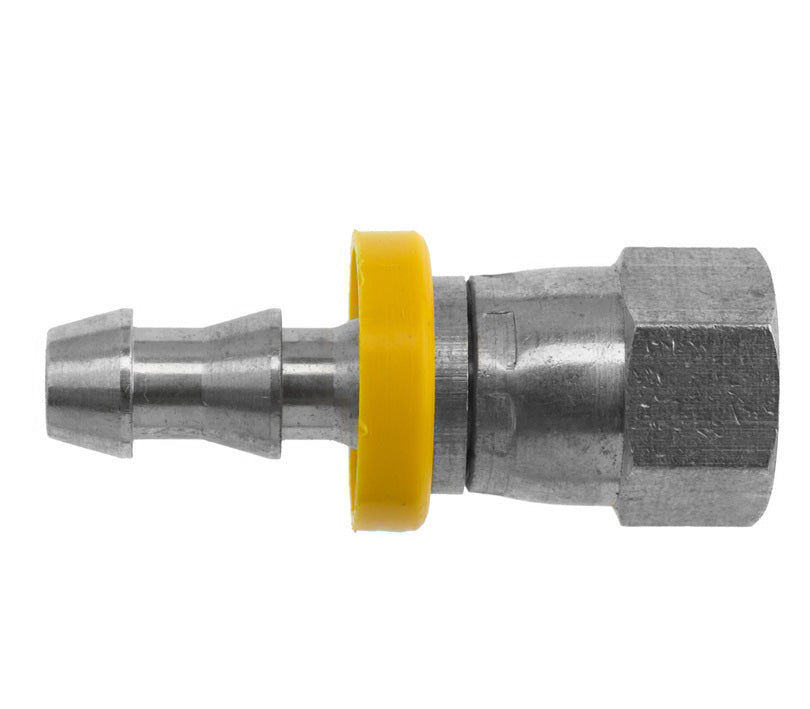

2111-06-08-B by Brennan Inc. | -06 Push Lock x -08 Female JIC Swivel | Straight | Brass
Minimum Order Quantity: 5 Units
Brennan Inc.
Brass Fittings: 2111 - Push Lock x Female JIC Swivel Straight
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $7.17 |
| 40–79 | $6.49 |
| 80+ | $5.72 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Special Properties:
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | Material | H1 Hose I.D. | B2SAE 37° | LLength | L1Length | CHex |
| 2111-04-04-B | Brass | 1/4" | 7/16-20" | 1.620" | 0.866" | 0.562" |
| 2111-04-05-B | Brass | 1/4" | 1/2-20" | 1.560" | 0.700" | 0.625" |
| 2111-04-06-B | Brass | 1/4" | 9/16-18" | 1.588" | 0.830" | 0.687" |
| 2111-05-05-B | Brass | 5/16" | 1/2-20" | 1.690" | 0.860" | 0.625" |
| 2111-06-06-B | Brass | 3/8" | 9/16-18" | 1.831" | 0.965" | 0.6875" |
| 2111-06-08-B | Brass | 3/8" | 3/4-16" | 1.780" | 0.970" | 0.875" |
| 2111-08-08-B | Brass | 1/2" | 3/4-16" | 1.938" | 0.965" | 0.875" |
| 2111-08-10-B | Brass | 1/2" | 7/8-14" | 1.840" | 0.970" | 1.000" |
| 2111-10-08-B | Brass | 5/8" | 3/4-16" | 2.540" | 1.500" | 0.875" |
| 2111-10-10-B | Brass | 5/8" | 7/8-14" | 2.700" | 1.500" | 0.875" |
| 2111-12-12-B | Brass | 3/4" | 1-1/16-12" | 2.734" | 1.457" | 1.250" |
| 2111-16-16-B | Brass | - | - | - | - | - |
| 2111-04-04-SS | Stainless Steel | 1/4" | 7/16-20" | 1.620" | 0.866" | 0.562" |
| 2111-06-06-SS | Stainless Steel | 3/8" | 9/16-18" | 1.831" | 0.965" | 0.6875" |
| 2111-08-08-SS | Stainless Steel | 1/2" | 3/4-16" | 1.938" | 0.965" | 0.875" |
