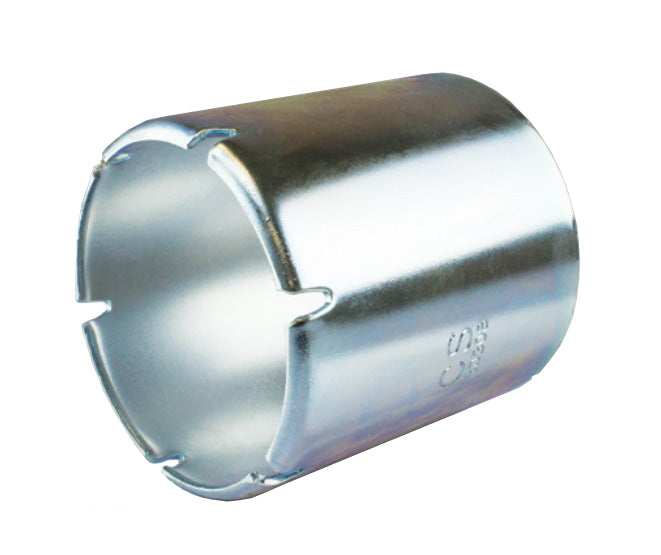

210F20P by Jason Industrial | Crimp Ferrule | 2-10/16" Ferrule ID | 2" Hose ID | Plated Steel
Buy more, save moreDiscounts applied in cart/checkout.
Crimp Couplings
Jason Industrial | Crimp Ferrules
1
What is this product used for?
- Jason Ferrules and Sleeves are designed to be used with Jason Combination Hose Nipples and the Part "C" and "E" Cam & Groove fittings (crimp style only).
- DO NOT mix with other products.
- WARNING! Not for use in steam applications!
2
What are the main things to know?
- Working pressures are determined by the type of hose and coupling used in the application.
- Please Note - for any hose with a natural rubber tube, Jason recommends using a ferrule only (instead of a crimp sleeve). During the crimping process, couplings have a tendency to be squeezed out of proper crimp position if a crimp sleeve is being used.
3
What are the Material Specs?
- Plated Steel
4
Which sizes or configurations are available?
| Part Number | Hose Size | Ferrule I.D. | Ferrule Wall | Ferrule Length |
|---|---|---|---|---|
| in | in | in | in | |
| 115F15P | 1-1/2" | 1-15/16" | 0.06" | 2.56" |
| 200F15P | 1-1/2" | 2" | 0.06" | 2.56" |
| 201F15P | 1-1/2" | 2-1/16" | 0.06" | 2.56" |
| 202F15P | 1-1/2" | 2-2/16" | 0.06" | 2.56" |
| 203F15P | 1-1/2" | 2-3/16" | 0.06" | 2.56" |
| 204F15P | 1-1/2" | 2-4/16" | 0.06" | 2.56" |
| 205F15P | 1-1/2" | 2-5/16" | 0.06" | 2.56" |
| 206F15P | 1-1/2" | 2-6/16" | 0.06" | 2.56" |
| 209F20P | 2" | 2-9/16" | 0.06" | 2.80" |
| 210F20P | 2" | 2-10/16" | 0.06" | 2.80" |
| 211F20P | 2" | 2-11/16" | 0.06" | 2.80" |
| 212F20P | 2" | 2-12/16" | 0.06" | 2.80" |
| 213F20P | 2" | 2-13/16" | 0.06" | 2.80" |
| 214F20P | 2" | 2-14/16" | 0.06" | 2.80" |
| 215F20P | 2" | 2-15/16" | 0.06" | 2.80" |
| 302F25P | 2-1/2" | 3-2/16" | 0.06" | 2.80" |
| 303F25P | 2-1/2" | 3-3/16" | 0.06" | 2.80" |
| 304F25P | 2-1/2" | 3-4/16" | 0.06" | 2.80" |
| 305F25P | 2-1/2" | 3-5/16" | 0.06" | 2.80" |
| 307F25P | 2-1/2" | 3-7/16" | 0.06" | 2.80" |
| 308F30P | 3" | 3-8/16" | 0.09" | 3.94" |
| 309F30P | 3" | 3-9/16" | 0.09" | 3.94" |
| 310F30P | 3" | 3-10/16" | 0.09" | 3.94" |
| 311F30P | 3" | 3-11/16" | 0.09" | 3.94" |
| 312F30P | 3" | 3-12/16" | 0.09" | 3.94" |
| 313F30P | 3" | 3-13/16" | 0.09" | 3.94" |
| 314F30P | 3" | 3-14/16" | 0.09" | 3.94" |
| 315F30P | 3" | 3-15/16" | 0.09" | 3.94" |
| 409F40P | 4" | 4-9/16" | 0.09" | 4.17" |
| 410F40P | 4" | 4-10/16" | 0.09" | 4.17" |
| 411F40P | 4" | 4-11/16" | 0.09" | 4.17" |
| 412F40P | 4" | 4-12/16" | 0.09" | 4.17" |
| 413F40P | 4" | 4-13/16" | 0.09" | 4.17" |
| 414F40P | 4" | 4-14/16" | 0.09" | 4.17" |
| 415F40P | 4" | 4-15/16" | 0.09" | 4.17" |
| 500F40P | 4" | 5" | 0.09" | 4.17" |
| 501F40P | 4" | 5-1/16" | 0.09" | 4.17" |
| 610F60P | 6" | 6-10/16" | 0.12" | 5.57" |
| 614F60P | 6" | 6-14/16" | 0.12" | 5.57" |
| 702F60P | 6" | 7-2/16" | 0.12" | 5.57" |
| 706F60P | 6" | 7-6/16" | 0.12" | 5.57" |
Additional Product Data:
Shape:
No Orientation
Material(s):
