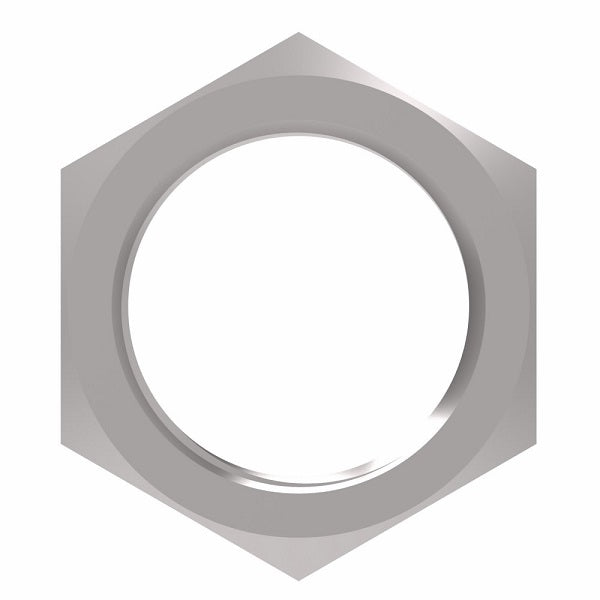

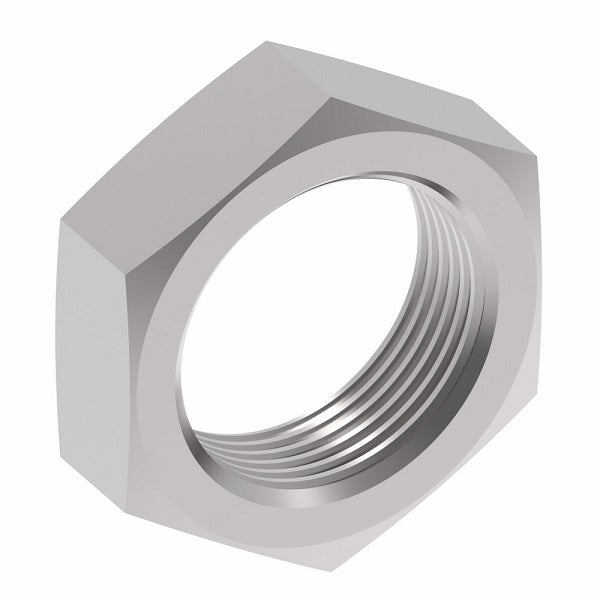

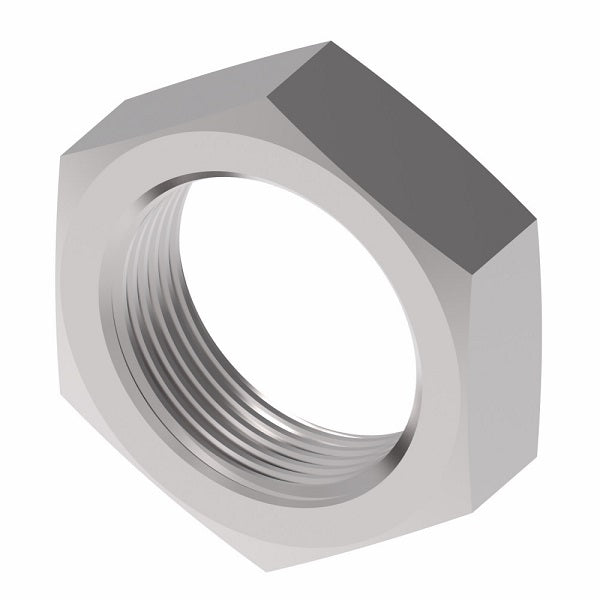

210212-16S Aeroquip by Danfoss | Bulkhead Lock Nut | -16 Size | Steel
Minimum Order Quantity: 5 Units
Buy more, save moreDiscounts applied in cart/checkout.
| Specifications: | |||
|---|---|---|---|
|
 |
|||||
|---|---|---|---|---|---|
| Part Number Steel |
Part Number Stainless Steel |
Tube O.D. | Thread T | A | B |
| 210212-3S | - | 0.19" | 3/8-24 | - | - |
| 210212-4S | - | 0.25" | 7/16-20 | 0.25" | 0.69" |
| 210212-5S | - | 0.31" | 1/2-20 | 0.25" | 0.75" |
| 210212-6S | 259-210212-6S | 0.38" | 9/16-18 | 0.27" | 0.81" |
| 210212-8S | 259-210212-8S | 0.50" | 3/4-16 | 0.31" | 1.00" |
| 210212-10S | - | 0.63" | 7/8-14 | 0.36" | 1.12" |
| 210212-12S | 259-210212-12S | 0.75" | 1-1/16-12 | 0.41" | 1.38" |
| 210212-16S | - | 1.00" | 1-5/16-12 | 0.41" | 1.62" |
| 210212-20S | - | 1.25" | 1-5/8-12 | 0.41" | 1.88" |
| 210212-24S | - | 1.50" | 1-7/8-12 | 0.41" | 2.12" |
Additional Product Data:
Shape:
No Orientation
Material(s):
