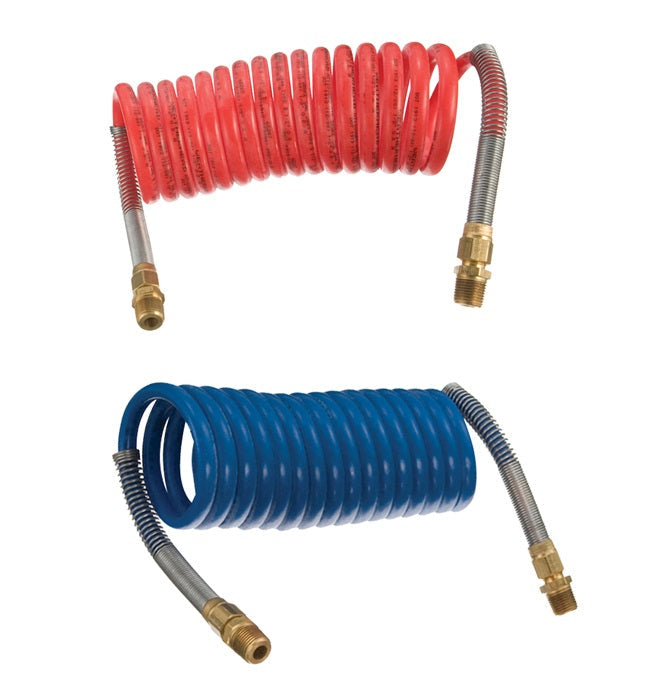

20CA12-12 Synflex Eclipse by Danfoss | 15CA Eclipse | Air Brake Tubing Coil Set | Red & Blue | 12" Pigtails | 20ft Length
Synflex by Danfoss
15CA Eclipse Series | Air Brake Coils
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Package Quantity: 20 ft
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $2,264.18 |
| 8–14 | $2,167.83 |
| 15+ | $1,926.96 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Tubing Construction:
Cover Construction:
| Hose Properties: | |||
|---|---|---|---|
| Application: | Articulating connections for air brake line systems (connections between towed and towing motor vehicle). Tractor-to-trailer air connections used in extremely low temperatures. |
SAE Rating: | Meets: SAE J844 Type B, DOT-FMVSS 106, (49 FR571 106) | Tube: | Synflex® Eclipse air brake tubing, 100% polyamide | Reinforcement: | Polyester Yarn |
| Operating Temperature: | (-65°F to +200°F) (-54°C to +93°C) |
||
| Features: | Superior abrasion resistance Excellent return and coil memory Enhanced flexibility and extension Brass end fittings with corrosion resistant spring guards |
||
| Part Number | Description | Color | Valve Pigtail Length | Male Ends | Working Length | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Valve | Gladhand | |||||||||
| mm | in | mm | in | mm | in | m | ft | |||
| 15CA12-12 | 15' Working Length Coil Set | Red & Blue | 304,8 mm | 12.00" | 12,7mm | 0.50" | 12,7mm | 0.50" | 4.6 m | 15.00 ft |
| 15CA48-12 | 15' Working Length Coil Set | Red & Blue | 1.219,2 mm | 48.00" | 12,7mm | 0.50" | 12,7mm | 0.50" | 4.6 m | 15.00 ft |
| 15CAR12-12 | 15' Working Length Coil | Red | 304,8 mm | 12.00" | 12,7mm | 0.50" | 12,7mm | 0.50" | 4.6 m | 15.00 ft |
| 15CAB12-12 | 15' Working Length Coil | Blue | 304,8 mm | 12.00" | 12,7mm | 0.50" | 12,7mm | 0.50" | 4.6 m | 15.00 ft |
| 20CA12-12 | 20' Working Length Coil Set | Red & Blue | 304,8 mm | 12.00" | 12,7mm | 0.50" | 12,7mm | 0.50" | 6,1 m | 20.00 ft |
