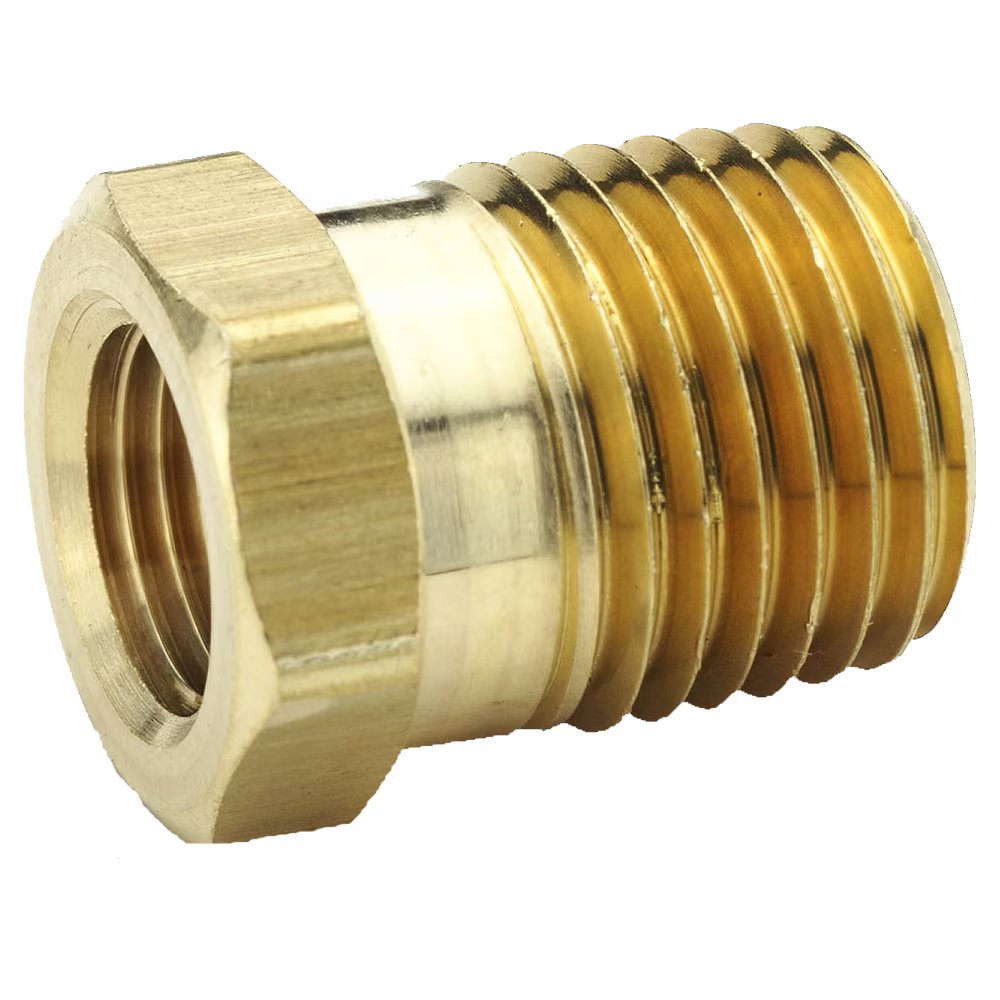

209P-12-4 by Parker | Legris Reducer | 1/4" Female NPTF Thread x 3/4" Male NPTF Thread | 1-1/8" Hex | 1.00" Length | Straight | Brass | Pack of 10
by Parker Hannifin
Brass Adapters:209P Reducer, Male/Female NPTF Thread
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $93.30 |
| 20–59 | $84.36 |
| 60+ | $74.44 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
| Adapters and Manifolds: | ||||||
|---|---|---|---|---|---|---|
 |
||||||
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | C | C1 | F | L | Flow Diameter | Kg |
| 209P-4-2 | 1/8" | 1/4" | 9/16" | .75" | .339" | .012 Kg |
| 209P-6-2 | 1/8" | 3/8" | 11/16" | .75" | .339" | .024 Kg |
| 209P-6-4 | 1/4" | 3/8" | 3/4" | .75" | .441" | .179 Kg |
| 209P-8-2 | 1/8" | 1/2" | 7/8" | 1.00" | .339" | .059 Kg |
| 209P-8-4 | 1/4" | 1/2" | 7/8" | 1.00" | .441" | .048 Kg |
| 209P-8-6 | 3/8" | 1/2" | 7/8" | 1.00" | .571" | .033 Kg |
| 209P-12-2 | 1/8" | 3/4" | 1-1/8" | 1.00" | .339" | - |
| 209P-12-4 | 1/4" | 3/4" | 1-1/8" | 1.00" | .441" | .093 Kg |
| 209P-12-6 | 3/8" | 3/4" | 1-1/8" | 1.00" | .571" | .08 Kg |
| 209P-12-8 | 1/2" | 3/4" | 1-1/8" | 1.00" | .703" | .057 Kg |
| 209P-16-8 | 1/2" | 1" | 1-3/8" | 1.31" | .339" | - |
| 209P-16-12 | 3/4" | 1" | 1-3/8" | 1.31" | .906" | - |
