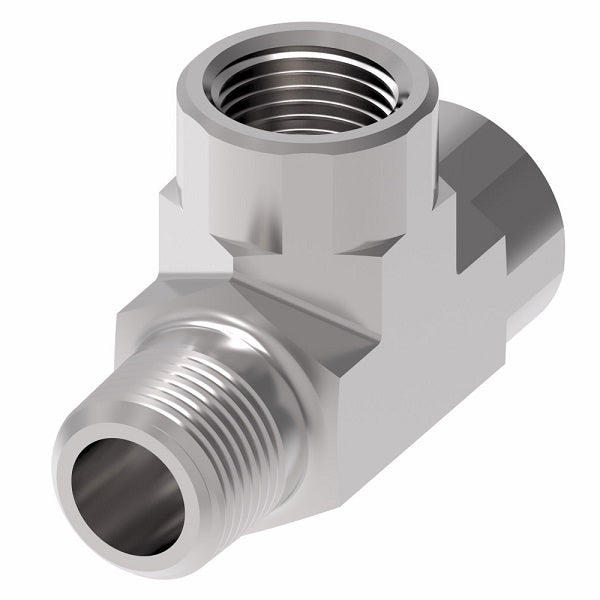

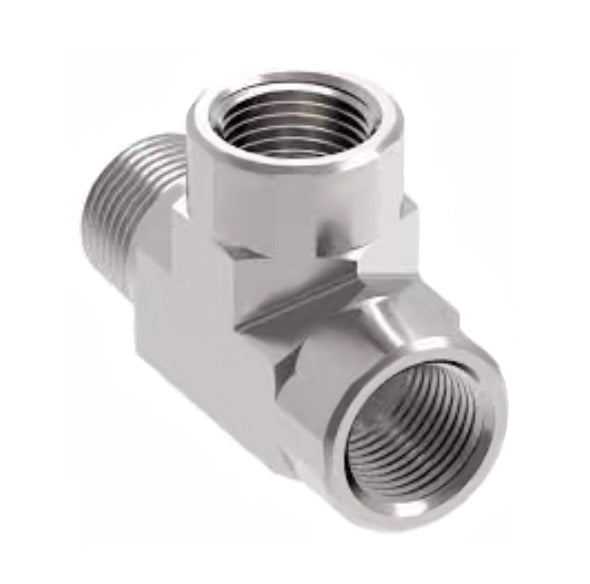

2092-12-12S Aeroquip by Danfoss | External Pipe Run/Internal Pipe Tee Adapter | -12 Male NPTF x -12 Female NPTF x -12 Female NPTF | Steel
2092-12-12S Aeroquip by Danfoss | External Pipe Run/Internal Pipe Tee Adapter | -12 Male NPTF x -12 Female NPTF x -12 Female NPTF | Steel
2092-12-12S Aeroquip by Danfoss | External Pipe Run/Internal Pipe Tee Adapter | -12 Male NPTF x -12 Female NPTF x -12 Female NPTF | Steel

2092-12-12S Aeroquip by Danfoss | External Pipe Run/Internal Pipe Tee Adapter | -12 Male NPTF x -12 Female NPTF x -12 Female NPTF | Steel

Sale price$19.55
Buy more, save moreDiscounts applied in cart/checkout.
Specifications:
  • Ref. SAE 140424
Steel Part Number Threads P1 Threads P2 A B C
2092-2-2S 1/8-27 1/8-27 0.78" 0.66" 0.66"
2092-4-4S 1/4-18 1/4-18 1.09" 0.88" 0.88"
2092-6-6S 3/8-18 3/8-18 1.22" 1.02" 1.02"
2092-8-8S 1/2-14 1/2-14 1.47" 1.23" 1.23"
2092-12-12S 3/4-14 3/4-14 1.59" 1.36" 1.36"
2092-16-16S 1-11-1/2 1-11-1/2 1.97" 1.62" 1.62"
2092-20-20S 1-1/4-11-1/2 1-1/4-11-1/2 2.38" 1.70" 1.70"

Additional Product Data:

Shape:

Tee

Ends Configuration:
  • 3/4in Male NPTF
  • 3/4in Female NPTF
  • 3/4in Female NPTF
Material(s):
  • Steel

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
