207ACBH-16 by Parker | Legris Bulkhead Union | 1" Female NPTF Thread x 1-5/8" Thread | 2" Hex (B) | 2" Hex (C) | 1.68" Length | Straight | Brass
by Parker Hannifin

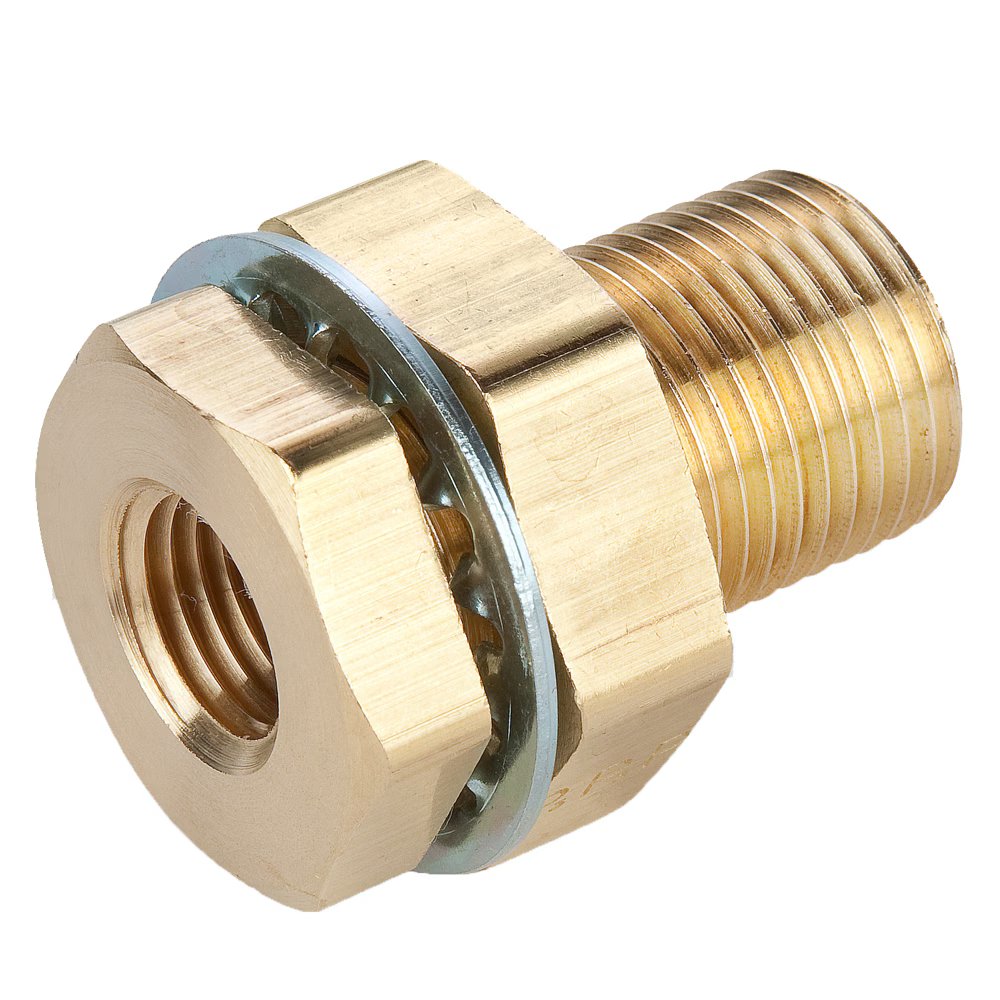

Brass Adapters:207ACBH Bulkhead Union, Female NPTF Thread
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
| Adapters and Manifolds: | ||||||||
|---|---|---|---|---|---|---|---|---|
 |
||||||||
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Part Number | Female Pipe Thread | Straight Thread | Max Bulkhead (P) | Hex (B) | Hex (C) | L | Bulkhead Hole Diameter (H) | Flow Diameter (D) |
| 207ACBH-2 | 1/8" | 5/8"-18 | .89" | 7/8" | 15/16" | 1.50" | 5/8" | .339" |
| 207ACBHS-2 | 1/8" | 5/8"-18 | .35" | 7/8" | 15/16" | .96" | 5/8" | .339" |
| 207ACBH-4 | 1/4" | 3/4"-16 | .81" | 1" | 1-1/8" | 1.50" | 3/4" | .441" |
| 207ACBHS-4 | 1/4" | 3/4"-16 | .26" | 1" | 1" | .94" | 3/4" | .441" |
| 207ACBH-6 | 3/8" | 1"-18 | .62" | 1-1/8" | 1-1/4" | 1.31" | 1" | .571" |
| 207ACBH-8 | 1/2" | 1-1/8"-14 | .75" | 1-1/4" | 1-3/8" | 1.50" | 1-1/8" | .703" |
| 207ACBH-12 | 3/4" | 1-5/16"-12 | .65" | 1-1/2" | 1-1/2" | 1.50" | 1-5/16" | .906" |
| 207ACBH-16* | 1" | 1-5/8"-14 | 1.00" | 2" | 2" | 1.68" | 1-5/8" | 1.140" |
*Lock Washer not Available
