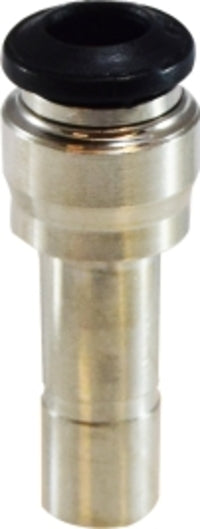

20758N (20-758N) by Midland | Push-In Fitting | Metric Reducer | 8mm Stud x 6mm Tube OD | Straight | Nickel Plated Brass

20758N (20-758N) by Midland | Push-In Fitting | Metric Reducer | 8mm Stud x 6mm Tube OD | Straight | Nickel Plated Brass

Minimum Order Quantity: 5 Units

Sale price$8.04

Midland Industries
Brass Fitting - Nickel Plated Push-in Fitting - Metric Reducer
Buy More, Save More!
Quantity Price Each
20–39 $7.56
40–79 $6.83
80+ $6.03
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 8mm Tube Stem
  • 6mm Push-to-Connect
Material(s):
  • Nickel Plated Brass
Features:
  • Saves time and money
  • No stripped threads
  • No stripped parts
  • Reduce inventory
  • Completely reusable
  • Quick installation
  • No pitch identification
Specifications:
  • Tolerance: +/- .02 on all dimensions
  • Max Operating Pressure: Vacuum to 290PSI
  • Min Temperature: -4°F
  • Max Temperature: 176°F
  • Tubing: Nylon, Polyethylene, Polyurethane. For best results use 95 Durometer
  • Media: Compressed air, water, vacuum
Part Number Stud
(mm)		 Tube O.D. 2
(mm)		 A
20754N
(20-754N)		 4mm 3mm 1.053"
20755N
(20-755N)		 5mm 4mm 1.131"
20756N
(20-756N)		 6mm 4mm 1.170"
20757N
(20-757N)		 6mm 5mm 1.248"
20758N
(20-758N)		 8mm 6mm 1.326"
20759N
(20-759N)		 10mm 8mm 1.482"
20760N
(20-760N)		 12mm 8mm 1.521"

Dimension data can change without notice.

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
