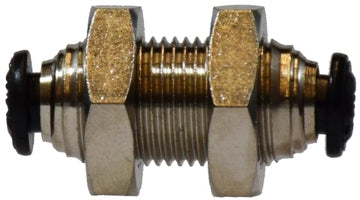

20732N by Midland | Push-In Fitting | Metric Bulkhead | 4mm Tube OD | Nickel Plated Brass

20732N by Midland | Push-In Fitting | Metric Bulkhead | 4mm Tube OD | Nickel Plated Brass

Sale price$18.92

Midland Industries
Brass Fitting - Nickel Plated Push-in Fitting - Metric Bulkhead
Buy More, Save More!
Quantity Price Each
10–39 $17.78
40–79 $16.08
80+ $14.19
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 4mm Push-to-Connect
  • 4mm Push-to-Connect
  • Some Ends Match
Material(s):
  • Nickel Plated Brass
Features:
  • Saves time and money
  • No stripped threads
  • No stripped parts
  • Reduce inventory
  • Completely reusable
  • Quick installation
  • No pitch identification
Specifications:
  • Tolerance: +/- .02 on all dimensions
  • Max Operating Pressure: Vacuum to 290PSI
  • Min Temperature: -4°F
  • Max Temperature: 176°F
  • Tubing: Nylon, Polyethylene, Polyurethane. For best results use 95 Durometer
  • Media: Compressed air, water, vacuum
Part Number Tube O.D.
(mm)		 M A Hex
20731N
(20-731N)		 3mm M10x1 1.014" 0.546"
20732N
(20-732N)		 4mm MI2x1 1.229" 0.663"
20733N
(20-733N)		 5mm M14x1 1.287" 0.663"
20734N
(20-734N)		 6mm M14x1 1.365" 0.663"
20735N
(20-735N)		 8mm M16x1 1.443" 0.741"
20736N
(20-736N)		 10mm M20x1 1.677" 0.936"
20737N
(20-737N)		 12mm M22x1 1.872" 1.014"

Dimension data can change without notice.

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
