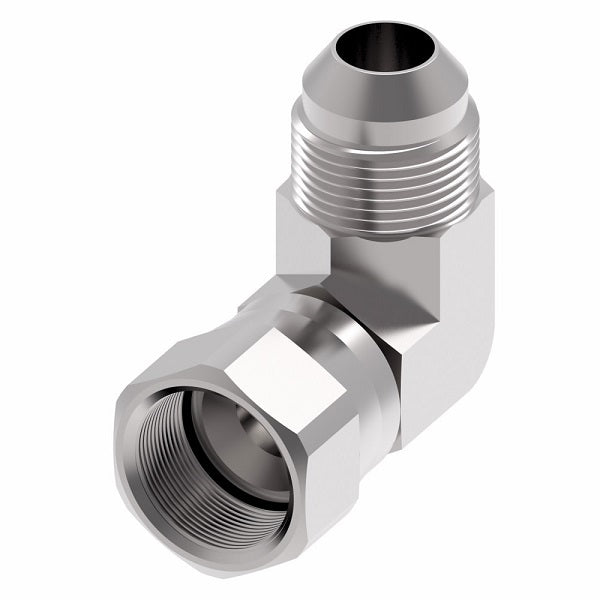

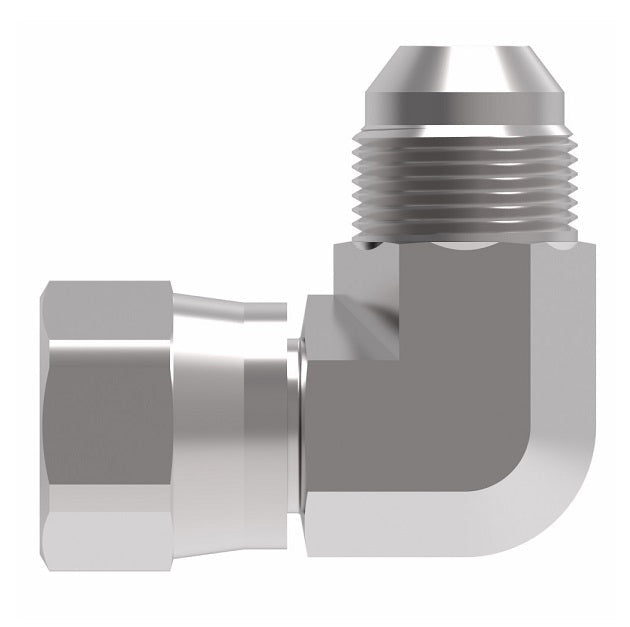

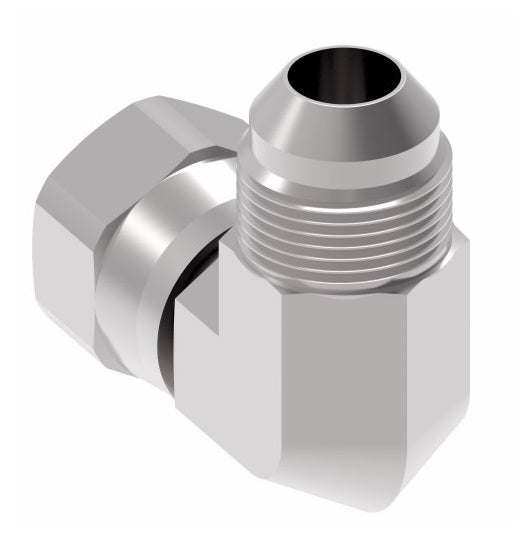

2071-8-8S Aeroquip by Danfoss | 37° JIC Flare Swivel/37° JIC Flare 90° Elbow Adapter | -08 Female 37° JIC Flare Swivel x -08 Male 37° JIC Flare | Steel
Minimum Order Quantity: 5 Units
Aeroquip® by Danfoss
37° JIC Flare Swivel/37° JIC Flare Adapter
Female 37° JIC Flare Swivel x Male 37° JIC Flare
90° Elbow
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $7.54 |
| 40–79 | $6.82 |
| 80+ | $6.02 |
Discounts applied in cart/checkout.
Product Data:
Shape:
90 Degree
Ends Configuration:
Material(s):
Special Properties:
| Specifications: | |||
|---|---|---|---|
|
 |
|||||
|---|---|---|---|---|---|
| Part Number Steel |
Tube O.D. | Thread T1 | Thread T2 | A | B |
| 2071-4-4S | 0.25" | 7/16-20 | 7/16-20 | 0.66" | 0.89" |
| 2071-4-6S | 0.38" | 7/16-20 | 9/16-18 | 0.82" | 1.06" |
| 2071-5-5S | 0.31" | 1/2-20 | 1/2-20 | 0.68" | 0.95" |
| 2071-6-4S | 0.25" | 9/16-18 | 7/16-20 | 0.88" | 1.05" |
| 2071-6-6S | 0.38" | 9/16-18 | 9/16-18 | 0.88" | 1.06" |
| 2071-8-6S | 0.38" | 3/4-16 | 9/16-18 | 0.96" | 1.14" |
| 2071-8-8S | 0.50" | 3/4-16 | 3/4-16 | 0.96" | 1.25" |
| 2071-8-10S | 0.63" | 3/4-16 | 7/8-14 | 1.00" | 1.45" |
| 2071-10-8S | 0.50" | 7/8-14 | 3/4-16 | 1.12" | 1.33" |
| 2071-10-10S | 0.63" | 7/8-14 | 7/8-14 | 1.12" | 1.45" |
| 2071-12-12S | 0.75" | 1-1/16-12 | 1-1/16-12 | 1.19" | 1.66" |
| 2071-14-14S | 0.88" | 1-3/16-12 | 1-3/16-12 | 1.20" | 1.80" |
| 2071-16-16S | 1.00" | 1-5/16-12 | 1-5/16-12 | 1.41" | 1.81" |
| 2071-20-20S | 1.25" | 1-5/8-12 | 1-5/8-12 | 1.68" | 2.06" |
| 2071-24-24S | 1.50" | 1-7/8-12 | 1-7/8-12 | 1.86" | 2.33" |
| 2071-32-32S | 2.00" | 2-1/2-12 | 2-1/2-12 | 2.44" | 3.06" |
