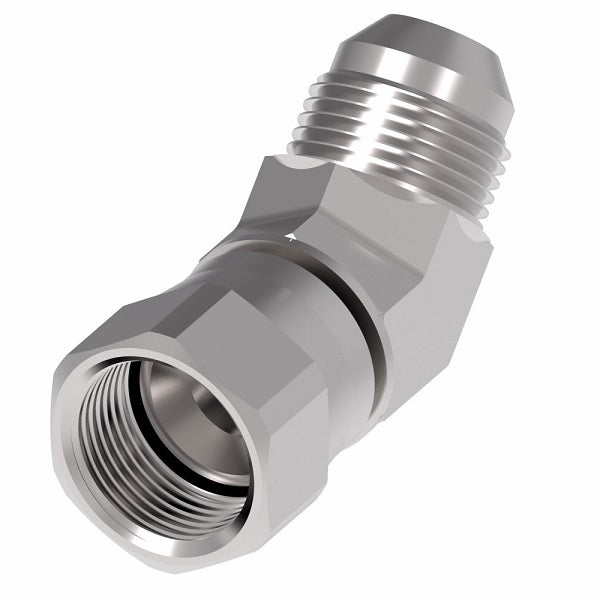

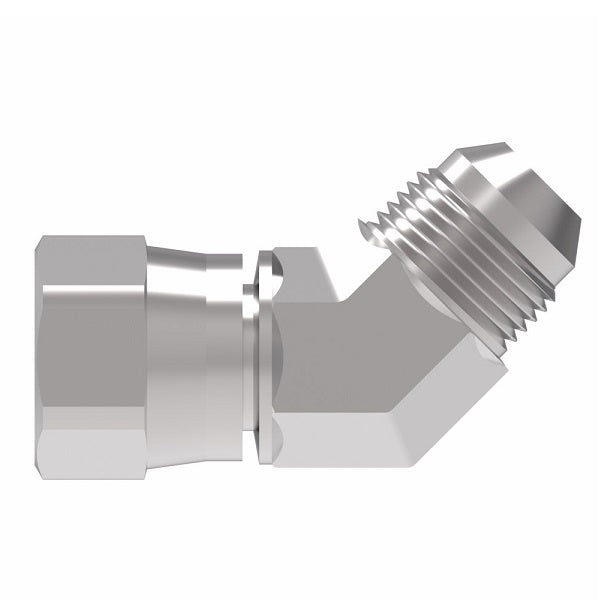

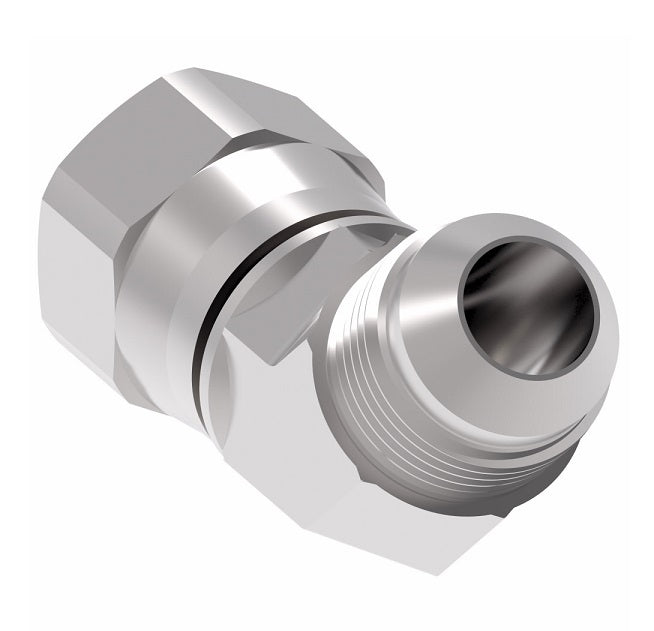

2070-4-4S Aeroquip by Danfoss | 37° Flare Swivel/37° Flare 45° Elbow Adapter | -04 Female 37° JIC Flare Swivel x -04 Male 37° JIC Flare | Steel
2070-4-4S Aeroquip by Danfoss | 37° Flare Swivel/37° Flare 45° Elbow Adapter | -04 Female 37° JIC Flare Swivel x -04 Male 37° JIC Flare | Steel
2070-4-4S Aeroquip by Danfoss | 37° Flare Swivel/37° Flare 45° Elbow Adapter | -04 Female 37° JIC Flare Swivel x -04 Male 37° JIC Flare | Steel

2070-4-4S Aeroquip by Danfoss | 37° Flare Swivel/37° Flare 45° Elbow Adapter | -04 Female 37° JIC Flare Swivel x -04 Male 37° JIC Flare | Steel

Minimum Order Quantity: 5 Units

Sale price$5.65

Aeroquip® by Danfoss
37° Flare Swivel/37° Flare Adapter
Female 37° JIC Flare Swivel x Male 37° JIC Flare
45° Elbow

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
20–39 $5.31
40–79 $4.80
80+ $4.24
Discounts applied in cart/checkout.

Product Data:

Shape:

45 Degree

Ends Configuration:
  • 1/4in Female JIC
  • 1/4in Male JIC
Material(s):
  • Steel
Specifications:
  • Ref. SAE 070321
Part Number
Steel		 Tube O.D. Thread T1 Thread T2 A B
2070-4-4S 0.25" 7/16-20 7/16-20 0.60" 0.72"
2070-5-5S 0.31" 1/2-20 1/2-20 0.62" 0.77"
2070-6-6S 0.38" 9/16-18 9/16-18 0.74" 0.83"
2070-8-8S 0.50" 3/4-16 3/4-16 0.86" 0.98"
2070-10-10S 0.63" 7/8-14 7/8-14 0.94" 1.11"
2070-12-12S 0.75" 1-1/16-12 1-1/16-12 0.94" 1.28"
2070-14-14S 0.88" 1-3/16-12 1-3/16-12 1.04" 1.45"
2070-16-16S 1.00" 1-5/16-12 1-5/16-12 1.16" 1.47"
2070-20-20S 1.25" 1-5/8-12 1-5/8-12 1.40" 1.59"
2070-24-24S 1.50" 1-7/8-12 1-7/8-12 - -

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
