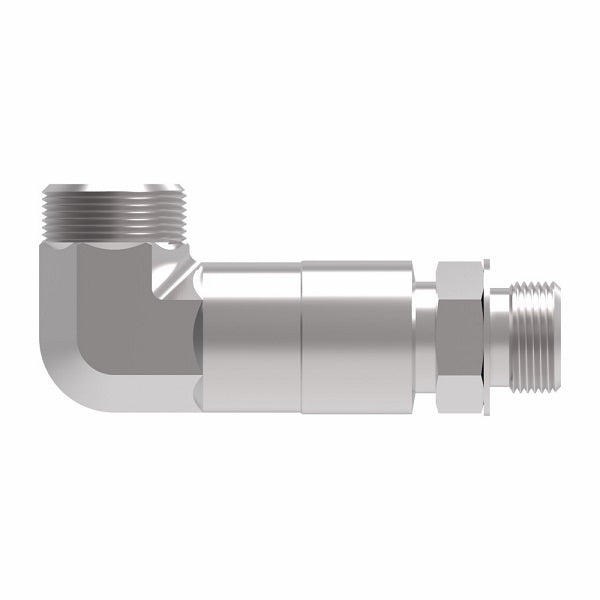

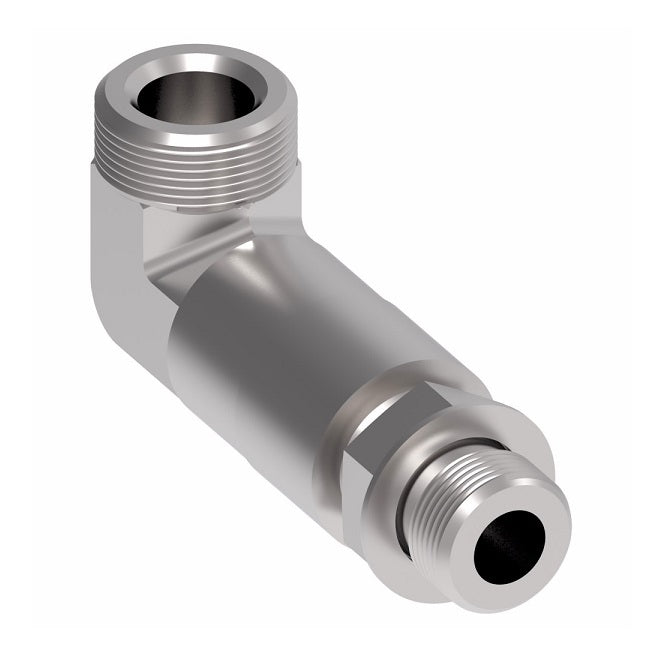

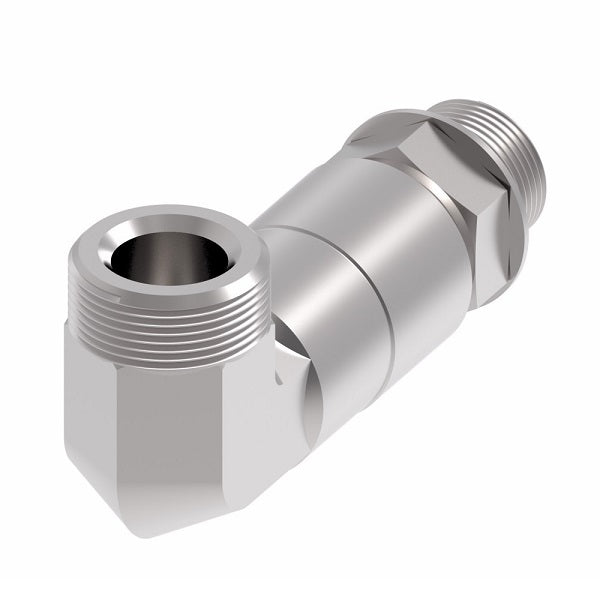

206804-8-10S Aeroquip by Danfoss | Internal Pipe/SAE ORB (Adj.) 90° Elbow Adapter | -08 Female NPTF x -10 Male SAE O-Ring Boss | Steel
206804-8-10S Aeroquip by Danfoss | Internal Pipe/SAE ORB (Adj.) 90° Elbow Adapter | -08 Female NPTF x -10 Male SAE O-Ring Boss | Steel
206804-8-10S Aeroquip by Danfoss | Internal Pipe/SAE ORB (Adj.) 90° Elbow Adapter | -08 Female NPTF x -10 Male SAE O-Ring Boss | Steel

206804-8-10S Aeroquip by Danfoss | Internal Pipe/SAE ORB (Adj.) 90° Elbow Adapter | -08 Female NPTF x -10 Male SAE O-Ring Boss | Steel

Sale price$63.60

Aeroquip® by Danfoss
Internal Pipe/SAE ORB (Adj.) Adapter
Female NPTF x Male SAE O-Ring Boss
90° Elbow

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
10–39 $59.78
40–79 $54.06
80+ $47.70
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Ends Configuration:
  • 1/2in Female NPTF
  • 5/8in Male O-Ring Boss
Material(s):
  • Steel
Construction:
  • Buna-N O-Rings are standard.
Part Number
Steel
Buna-N O-Ring		 Thread P Thread T A B
206804-6-8S 3/8-18 3/4-16 1.02" 2.97"
206804-8-10S 1/2-14 7/8-14 1.23" 3.56"
206804-12-12S 3/4-14 1-1/16-12 1.36" 4.12"
206804-16-16S 1-11-1/2 1-5/16-12 1.62" 4.64"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Explore Danfoss (Eaton - Aeroquip)
