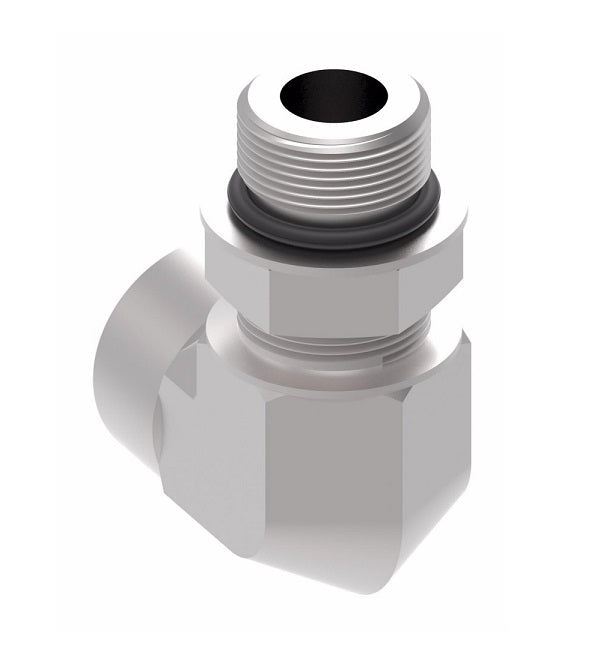

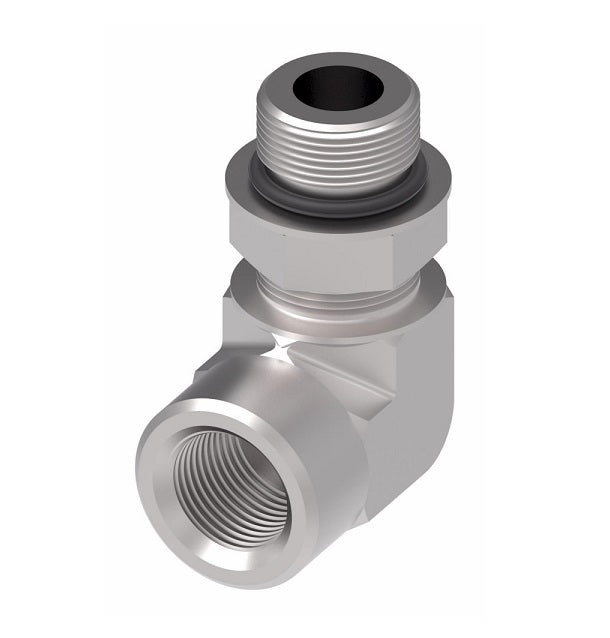

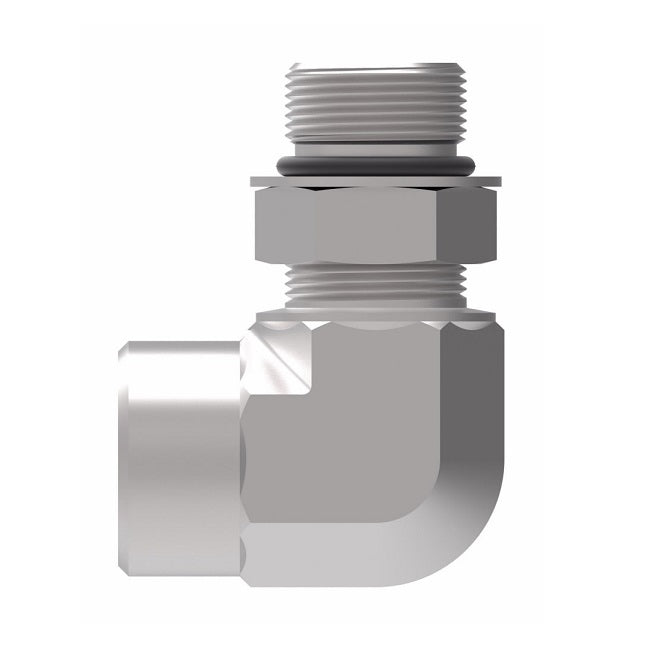

206801-8-10S Aeroquip by Danfoss | Internal Pipe/SAE ORB (Adj.) 90° Elbow Adapter | -08 Female NPTF x -10 Male SAE O-Ring Boss | Steel
206801-8-10S Aeroquip by Danfoss | Internal Pipe/SAE ORB (Adj.) 90° Elbow Adapter | -08 Female NPTF x -10 Male SAE O-Ring Boss | Steel
206801-8-10S Aeroquip by Danfoss | Internal Pipe/SAE ORB (Adj.) 90° Elbow Adapter | -08 Female NPTF x -10 Male SAE O-Ring Boss | Steel

206801-8-10S Aeroquip by Danfoss | Internal Pipe/SAE ORB (Adj.) 90° Elbow Adapter | -08 Female NPTF x -10 Male SAE O-Ring Boss | Steel

Sale price$33.00
Buy more, save moreDiscounts applied in cart/checkout.
Construction:
  • Buna-N O-Rings are standard.
Part Number
Steel
Buna-N O-Ring		 Part Number
Steel
without O-Ring		 Thread P Thread T A B
206801-4-6S - 1/4-18 9/16-18 - -
206801-6-8S - 3/8-18 3/4-16 1.02" 1.62"
206801-8-8S 206801-1-8-8S 1/2-14 3/4-16 1.23" 1.73"
206801-8-10S - 1/2-14 7/8-14 - -
206801-12-12S - 3/4-14 1-1/16-12 1.36" 2.17"
206801-16-16S - 1-11-1/2 1-5/16-12 1.62" 2.41"
206801-20-20S - 1-1/4-11 1/2 1-5/8-12 - -

Additional Product Data:

Shape:

90 Degree

Ends Configuration:
  • 1/2in Female NPTF
  • 5/8in Male O-Ring Boss
Material(s):
  • Steel

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
