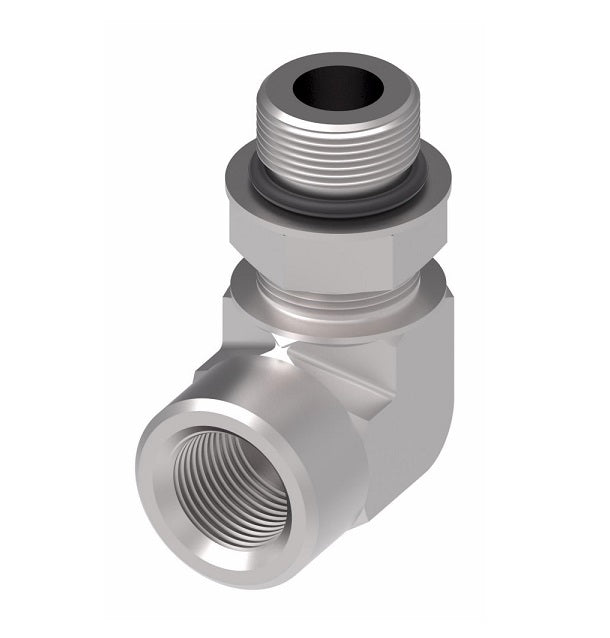

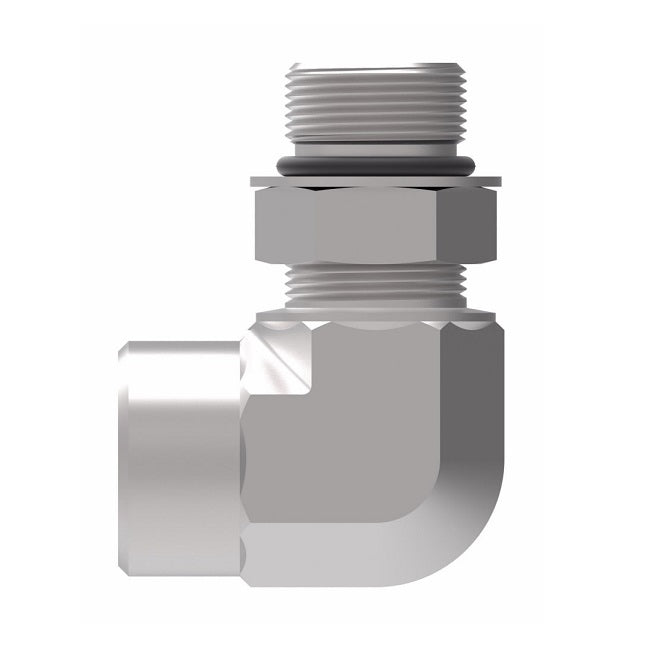

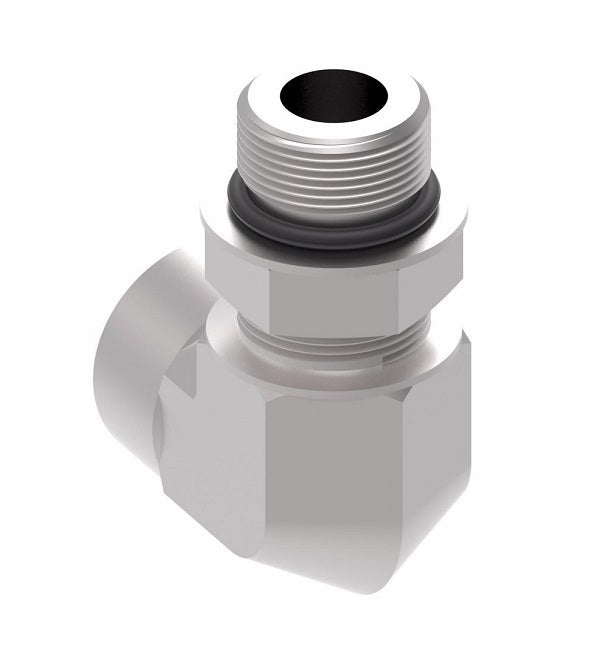

206801-12-12S Aeroquip by Danfoss | Internal Pipe/SAE ORB (Adj.) 90° Elbow Adapter | -12 Female NPTF x -12 Male SAE O-Ring Boss | Steel
206801-12-12S Aeroquip by Danfoss | Internal Pipe/SAE ORB (Adj.) 90° Elbow Adapter | -12 Female NPTF x -12 Male SAE O-Ring Boss | Steel
206801-12-12S Aeroquip by Danfoss | Internal Pipe/SAE ORB (Adj.) 90° Elbow Adapter | -12 Female NPTF x -12 Male SAE O-Ring Boss | Steel

206801-12-12S Aeroquip by Danfoss | Internal Pipe/SAE ORB (Adj.) 90° Elbow Adapter | -12 Female NPTF x -12 Male SAE O-Ring Boss | Steel

Sale price$47.84

Aeroquip® by Danfoss
Internal Pipe/SAE O-Ring Boss (Adj.) Adapter
Female NPTF x Male SAE O-Ring Boss
90° Elbow

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
10–39 $44.97
40–79 $40.66
80+ $35.88
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Ends Configuration:
  • 3/4in Female NPTF
  • 3/4in Male O-Ring Boss
Material(s):
  • Steel
Construction:
  • Buna-N O-Rings are standard.
Part Number
Steel
Buna-N O-Ring		 Part Number
Steel
without O-Ring		 Thread P Thread T A B
206801-4-6S - 1/4-18 9/16-18 - -
206801-6-8S - 3/8-18 3/4-16 1.02" 1.62"
206801-8-8S 206801-1-8-8S 1/2-14 3/4-16 1.23" 1.73"
206801-8-10S - 1/2-14 7/8-14 - -
206801-12-12S - 3/4-14 1-1/16-12 1.36" 2.17"
206801-16-16S - 1-11-1/2 1-5/16-12 1.62" 2.41"
206801-20-20S - 1-1/4-11 1/2 1-5/8-12 - -

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
