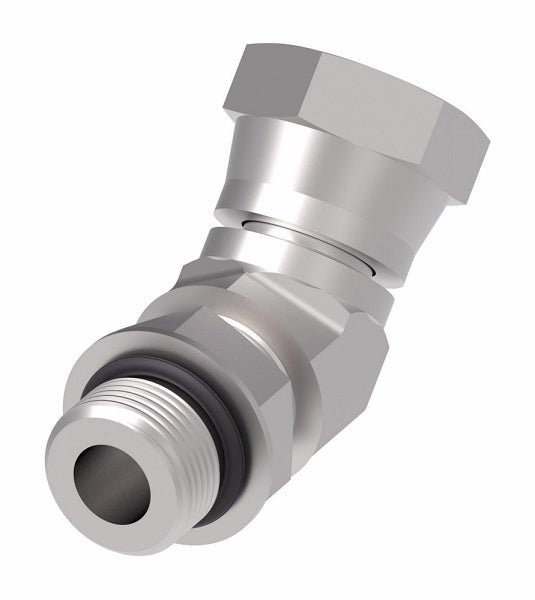

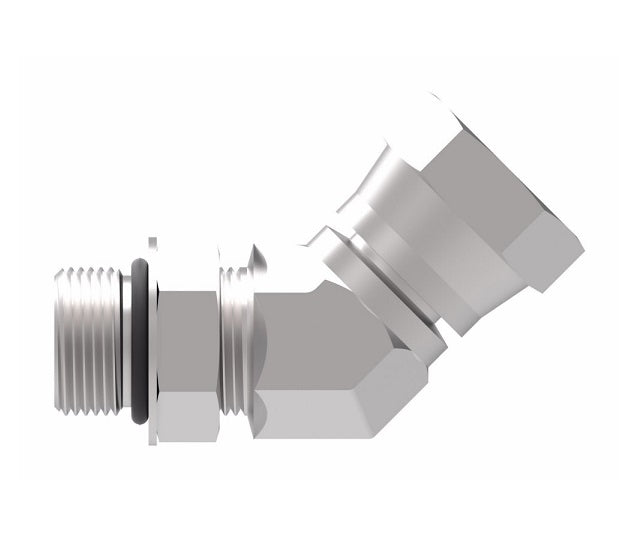

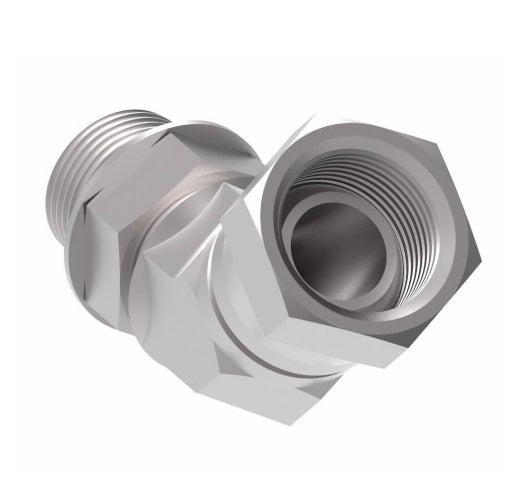

2067-8-6S Aeroquip by Danfoss | Internal Pipe NPSM Swivel/SAE ORB (Adj.) 45° Elbow Adapter | -08 Female NPSM x -06 Male SAE O-Ring Boss | Steel+
2067-8-6S Aeroquip by Danfoss | Internal Pipe NPSM Swivel/SAE ORB (Adj.) 45° Elbow Adapter | -08 Female NPSM x -06 Male SAE O-Ring Boss | Steel+
2067-8-6S Aeroquip by Danfoss | Internal Pipe NPSM Swivel/SAE ORB (Adj.) 45° Elbow Adapter | -08 Female NPSM x -06 Male SAE O-Ring Boss | Steel+

2067-8-6S Aeroquip by Danfoss | Internal Pipe NPSM Swivel/SAE ORB (Adj.) 45° Elbow Adapter | -08 Female NPSM x -06 Male SAE O-Ring Boss | Steel+

Sale price$26.70
Buy more, save moreDiscounts applied in cart/checkout.
Construction:
  • Buna-N O-Rings are standard.
Part Number
Steel
Buna-N O-Ring		 Thread P Thread T A B
2067-4-4S 1/4-18 7/16-20 - -
2067-6-4S 3/8-18 7/16-20 - -
2067-6-6S 3/8-18 9/16-18 0.92" 1.20"
2067-6-8S 3/8-18 3/4-16 0.92" 1.33"
2067-8-6S 1/2-14 9/16-18 - -
2067-8-8S 1/2-14 3/4-16 0.91" 1.39"
2067-8-10S 1/2-14 7/8-14 - -
2067-12-8S 3/4-14 3/4-16 - -
2067-12-12S 3/4-14 1-1/16-12 1.10" 1.76"
2067-12-16S 3/4-14 1-5/16-12 1.10" 1.89"
2067-16-16S 1-11-1/2 1-5/16-12 1.26" 1.89"
2067-20-20S 1-1/4-11-1/2 1-5/8-12 - -

Additional Product Data:

Shape:

45 Degree

Ends Configuration:
  • 1/2in Female NPSM
  • 3/8in Male O-Ring Boss
Material(s):
  • Steel

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Explore Danfoss (Eaton - Aeroquip)
