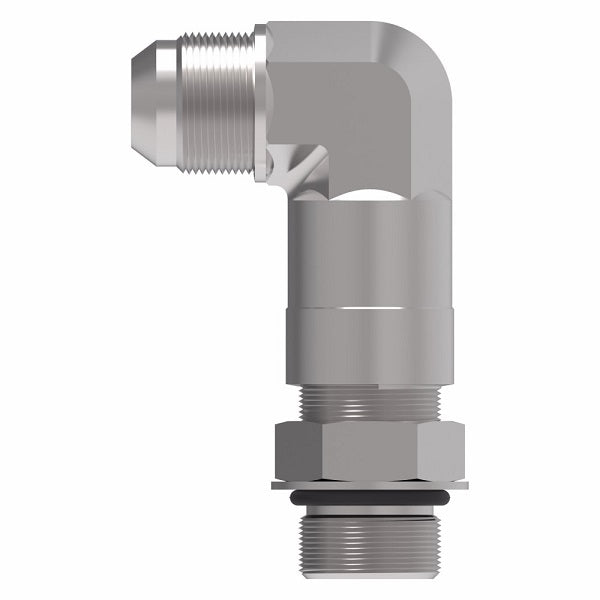

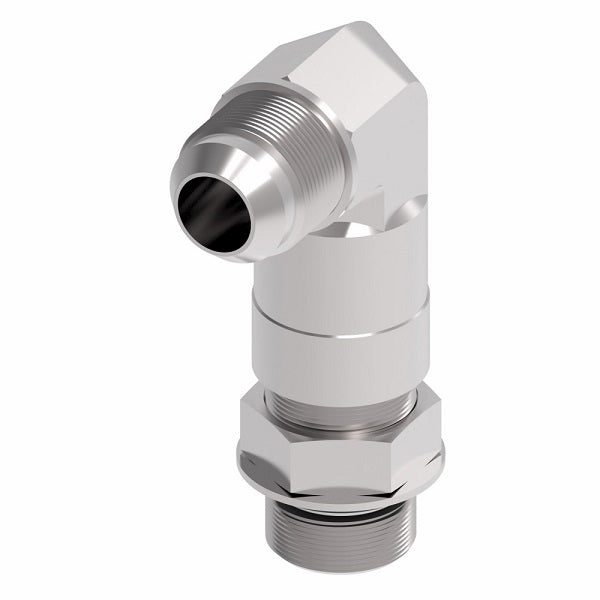

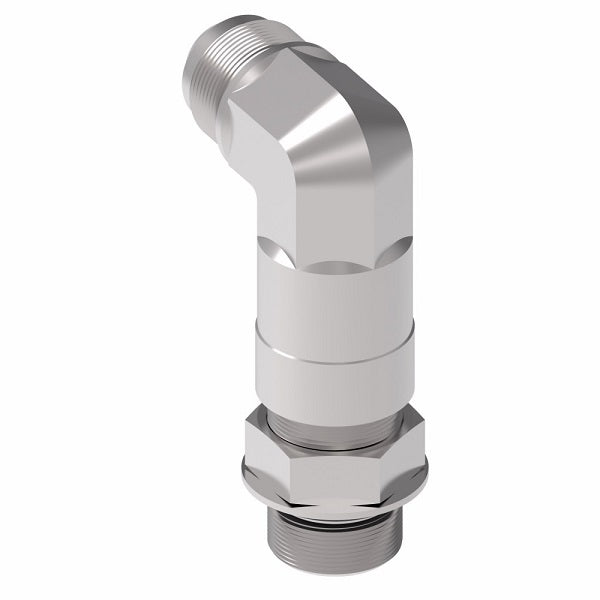

206209-16-16S Aeroquip by Danfoss | SAE ORB (adj.)/37° JIC Flare Long 90° Elbow Adapter | -16 Male SAE O-Ring Boss x -16 Male 37° JIC Flare | Steel
206209-16-16S Aeroquip by Danfoss | SAE ORB (adj.)/37° JIC Flare Long 90° Elbow Adapter | -16 Male SAE O-Ring Boss x -16 Male 37° JIC Flare | Steel
206209-16-16S Aeroquip by Danfoss | SAE ORB (adj.)/37° JIC Flare Long 90° Elbow Adapter | -16 Male SAE O-Ring Boss x -16 Male 37° JIC Flare | Steel

206209-16-16S Aeroquip by Danfoss | SAE ORB (adj.)/37° JIC Flare Long 90° Elbow Adapter | -16 Male SAE O-Ring Boss x -16 Male 37° JIC Flare | Steel

Sale price$54.78

Aeroquip® by Danfoss
SAE ORB (adj.)/37° JIC Flare Long Adapter
Male SAE O-Ring Boss x Male 37° JIC Flare
90° Elbow

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
10–39 $51.49
40–79 $46.56
80+ $41.09
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Ends Configuration:
  • 1in Male O-Ring Boss
  • 1in Male JIC
Material(s):
  • Steel
Part Number
Steel
Buna-N O-Ring		 Tube O.D. Thread T1 Thread T2 A B
206209-4-4S 0.25" 7/16-20 7/16-20 1.73" 0.89"
206209-6-6S 0.38" 9/16-18 9/16-18 2.08" 1.06"
206209-8-8S 0.50" 3/4-16 3/4-16 2.48" 1.25"
206209-8-10S 0.63" 3/4-16 7/8-14 2.52" 1.45"
206209-10-10S 0.63" 7/8-14 7/8-14 2.89" 1.45"
206209-12-12S 0.75" 1-1/16-12 1-1/16-12 3.34" 1.66"
206209-16-16S 1.00" 1-5/16-12 1-5/16-12 3.72" 1.81"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
