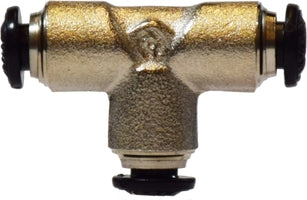

20610N by Midland | Push-In Fitting | Metric Union | 4mm Tube OD | Tee | Nickel Plated Brass

20610N by Midland | Push-In Fitting | Metric Union | 4mm Tube OD | Tee | Nickel Plated Brass

Sale price$16.10

Midland Industries
Brass Fitting - Nickel Plated Push-in Fitting - Metric Union Tee
Buy More, Save More!
Quantity Price Each
10–39 $15.13
40–79 $13.69
80+ $12.08
Discounts applied in cart/checkout.

Product Data:

Shape:

Tee

Ends Configuration:
  • 4mm Push-to-Connect
  • 4mm Push-to-Connect
  • 4mm Push-to-Connect
  • Some Ends Match
Material(s):
  • Nickel Plated Brass
Features:
  • Saves time and money
  • No stripped threads
  • No stripped parts
  • Reduce inventory
  • Completely reusable
  • Quick installation
  • No pitch identification
Specifications:
  • Tolerance: +/- .02 on all dimensions
  • Max Operating Pressure: Vacuum to 290PSI
  • Min Temperature: -4°F
  • Max Temperature: 176°F
  • Tubing: Nylon, Polyethylene, Polyurethane. For best results use 95 Durometer
  • Media: Compressed air, water, vacuum
Component Parts and Materials:
Body Brass - Nickel Plated
Thrust Ring Acetalic Resin/ Glass filled Nylon
Sleeve Brass - Nickel Plated
Gripper Collet Stainless Steel
Safety Ring PA66
Lip Seal (1/8" O-Ring Seal) NBR 70
Thread Seal NBR 70
Part Number Tube O.D.
(mm)		 A B Body Size
20741N
 3mm 1.326" 0.663" 0.351"
20610N
 4mm 1.326" 0.663" 0.351"
20742N
 5mm 1.560" 0.780" 0.429"
20611N
 6mm 1.638" 0.819" 0.429"
20612N
 8mm 1.755" 0.878" 0.507"
20613N
 10mm 2.067" 1.034" 0.624"
20614N
 12mm 2.379" 1.190" 0.741"
20743N
 14mm 2.379" 2.535" 0.741"

Dimension data can change without notice.
