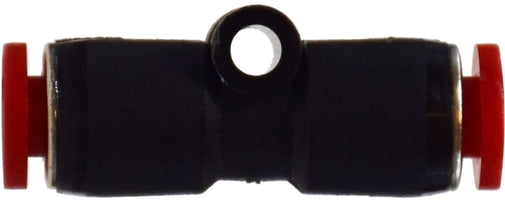

20601 by Midland | Metric Push-In Fitting | Union | 6mm Tube OD | Composite Body
Minimum Order Quantity: 5 Units
Midland Industries
Brass Fitting - Composite Body Push-in Fitting - Metric Union
The latest generation of composite material is used in the body construction in addition to nickel-plated brass on threaded components and stainless steel on the tube gripper.
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $3.74 |
| 40–79 | $3.38 |
| 80+ | $2.99 |
Discounts applied in cart/checkout.
Product Data:
Shape:
["Straight"]
Ends Configuration:
Material(s):
Seal Material(s):
SPECIFICATIONS
| Pressure Operating Range: | 0 to 220 PSI (15 bar) | Vacuum Operating Range: | 0 to 29hg (-.99 bar) |
|---|---|---|---|
| Temperature: | -50 F to + 1750 F (-200 C to + 800 C) | Media: | Compressed air, Non-toxic fluids (water) |
| Materials of Construcion | ||
|---|---|---|
| 1 | Body | Composite |
| 2 | Body | Nickel Plated Brass |
| 3 | Tube Release | Acetal Resin |
| 4 | Retainer | Nickel Plated Brass |
| 5 | Gripper Ring | Stainless Steel |
| 6 | Spacer | Composite |
| 7 | Thread Packing | NBR 70 |
| 8 | O-Ring | NBR 70 |
| 9 | Thread Seal | NBR 70 |
| Part Number | Tube O.D. (mm) |
|---|---|
| 20600 (20-600) |
4mm |
| 20601 (20-601) |
6mm |
| 20602 (20-602) |
8mm |
| 20603 (20-603) |
10mm |
| 20604 (20-604) |
12mm |
Dimension Data can change without notice.
