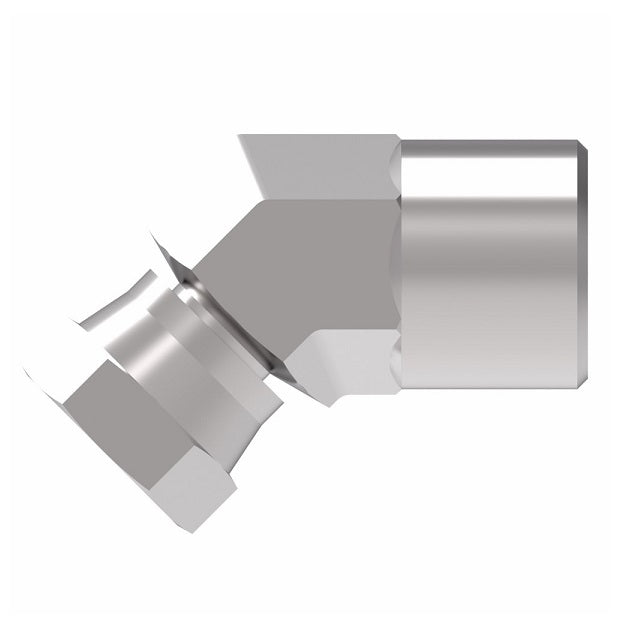

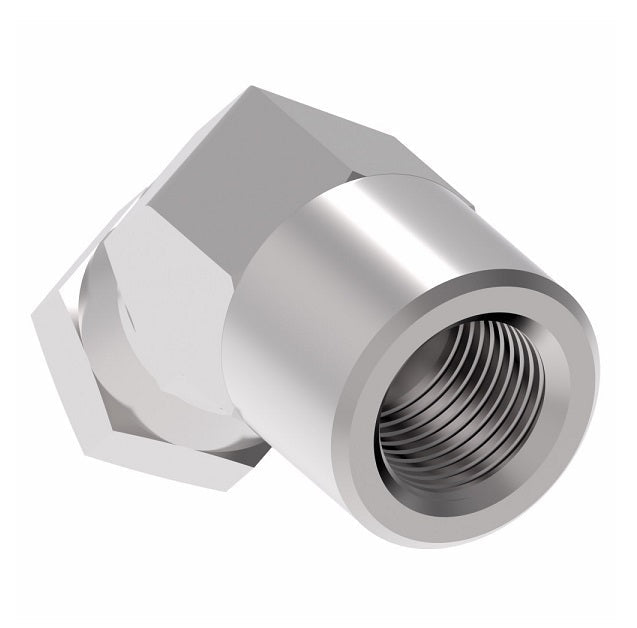

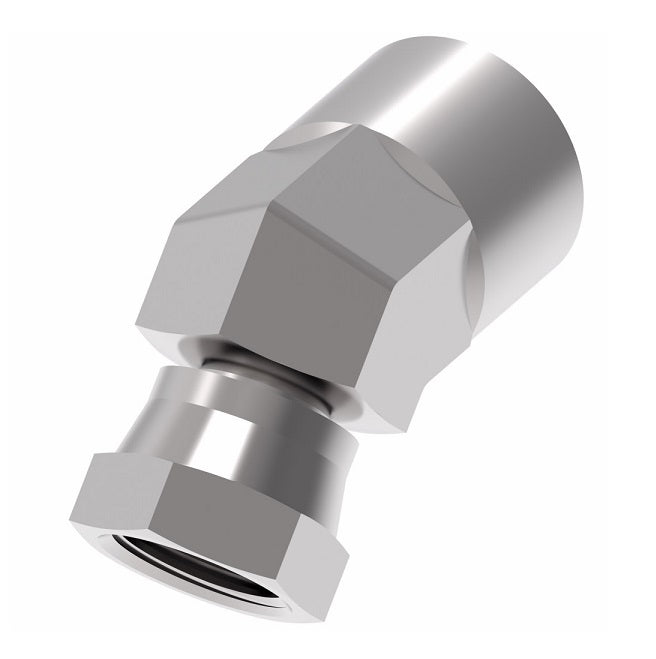

2050-2-2S Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/Internal Pipe 45° Elbow Adapter | -02 Female NPSM x -02 Female NPTF | Steel
2050-2-2S Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/Internal Pipe 45° Elbow Adapter | -02 Female NPSM x -02 Female NPTF | Steel
2050-2-2S Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/Internal Pipe 45° Elbow Adapter | -02 Female NPSM x -02 Female NPTF | Steel

2050-2-2S Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/Internal Pipe 45° Elbow Adapter | -02 Female NPSM x -02 Female NPTF | Steel

Sale price$13.79
Buy more, save moreDiscounts applied in cart/checkout.
Specifications:
  • Ref. SAE 140331
Steel
Part Number 		Thread P1 Thread P2 A B
2050-2-2S 1/8-27 1/8-27 0.62" 0.50"
2050-4-4S 1/4-18 1/4-18 0.79" 0.97"
2050-4-6S 1/4-18 3/8-18 0.92" 1.18"
2050-6-6S 3/8-18 3/8-18 0.92" 1.18"
2050-6-8S 3/8-18 1/2-14 0.86" 1.41"
2050-8-8S 1/2-14 1/2-14 0.91" 1.41"
2050-12-12S 3/4-14 3/4-14 1.10" 1.53"
2050-12-16S 3/4-14 1-11-1/2 - -
2050-16-16S 1-11-1/2 1-11-1/2 1.26" 1.53"
2050-20-20S 1-1/4-11-1/2 1-1/4-11-1/2 1.23" 1.44"

Additional Product Data:

Shape:

45 Degree

Ends Configuration:
  • 1/8in Female NPSM
  • 1/8in Female NPTF
Material(s):
  • Steel

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Explore Danfoss (Eaton - Aeroquip)
