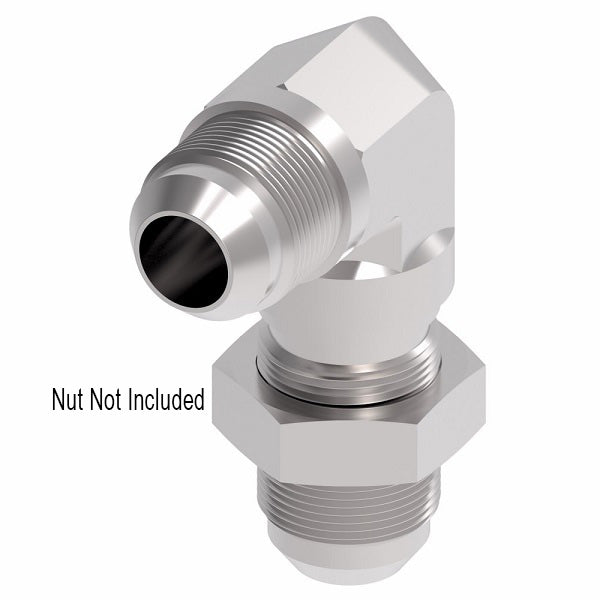

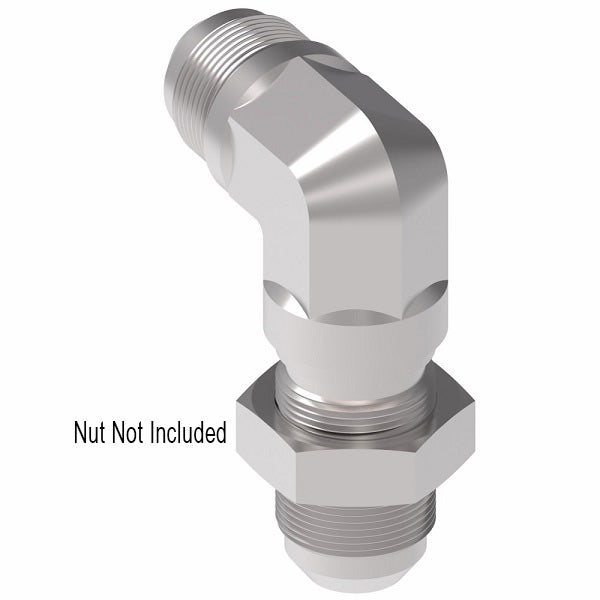

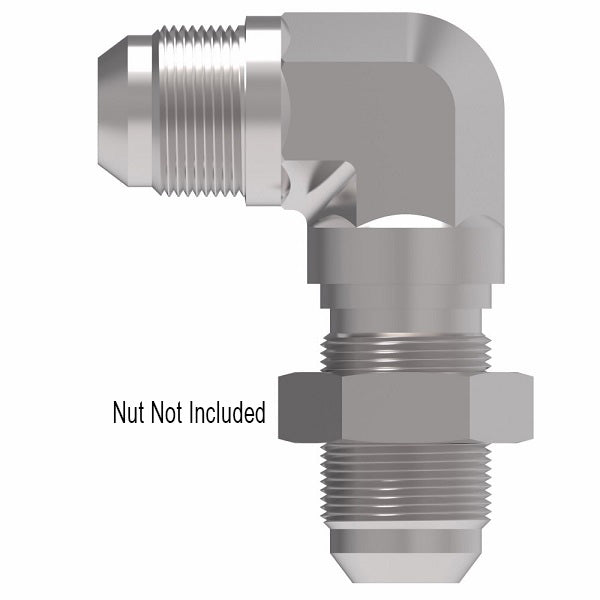

2043-1-5-5S Aeroquip by Danfoss | Male 37° JIC Flare Bulkhead/37° (JIC) Flare 90° Elbow Adapter (without Nut) | -05 Male 37° JIC Flare Bulkhead x -05 Male 37° JIC Flare | Steel
Aeroquip® by Danfoss
Male 37° JIC Flare Bulkhead/37° (JIC) Flare Adapter
Male 37° JIC Flare Bulkhead x Male 37° JIC Flare
90° Elbow
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $17.78 |
| 40–79 | $16.07 |
| 80+ | $14.18 |
Discounts applied in cart/checkout.
Product Data:
Shape:
90 Degree
Ends Configuration:
Material(s):
| Specifications: | |||
|---|---|---|---|
|
 |
||||||
|---|---|---|---|---|---|---|
| Part Number Steel |
Part Number Steel without Nut |
Tube O.D. | Thread T1 | Thread T2 | A | B |
| 2043-3-3S | - | 0.19" | 3/8-24 | 3/8-24 | 1.50" | 0.94" |
| 2043-4-4S | 2043-1-4-4S | 0.25" | 7/16-20 | 7/16-20 | 1.59" | 0.97" |
| 2043-5-5S | 2043-1-5-5S | 0.31" | 1/2-20 | 1/2-20 | 1.72" | 1.06" |
| 2043-6-6S | 2043-1-6-6S | 0.38" | 9/16-18 | 9/16-18 | 1.81" | 1.09" |
| 2043-8-8S | 2043-1-8-8S | 0.50" | 3/4-16 | 3/4-16 | 2.11" | 1.36" |
| 2043-10-10S | 2043-1-10-10S | 0.63" | 7/8-14 | 7/8-14 | 2.39" | 1.56" |
| 2043-12-12S | 2043-1-12-12S | 0.75" | 1-1/16-12 | 1-1/16-12 | 2.67" | 1.78" |
| 2043-16-16S | 2043-1-16-16S | 1.00" | 1-5/16-12 | 1-5/16-12 | 2.80" | 1.94" |
