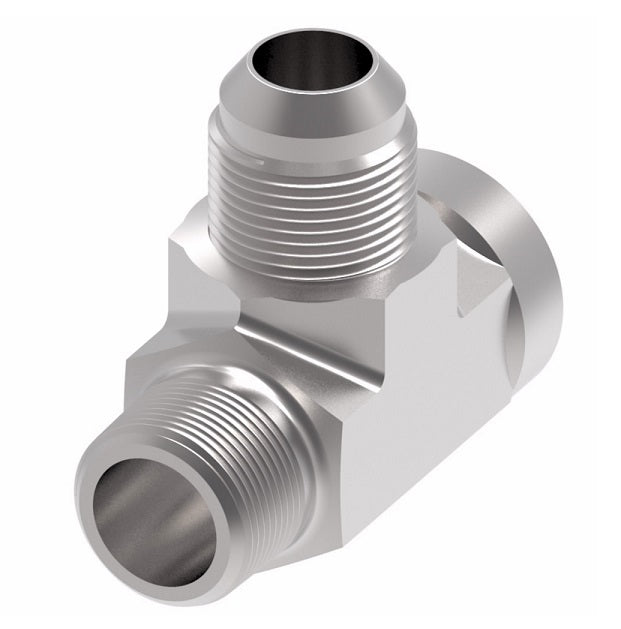

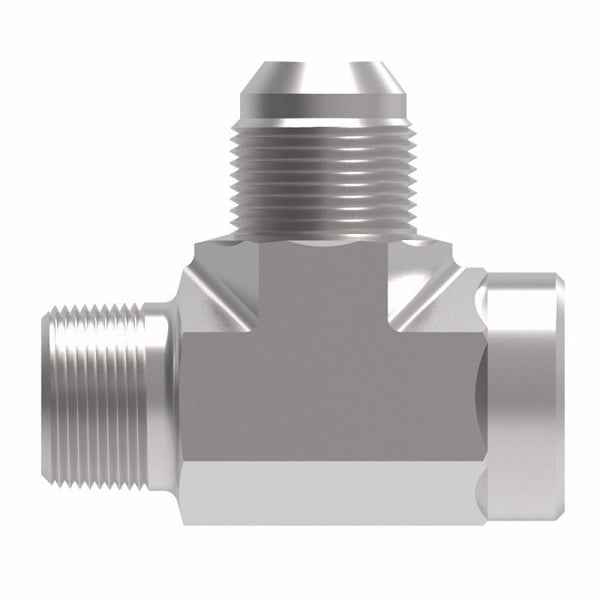

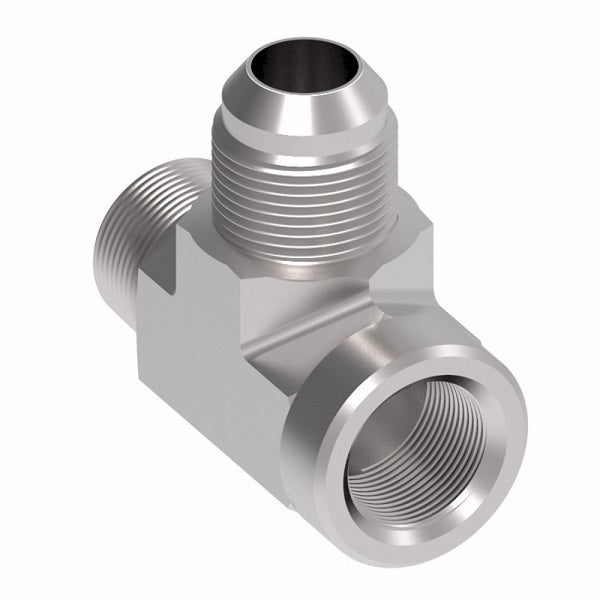

203301-4-6S Aeroquip by Danfoss | External Pipe/Internal Pipe/37° JIC Flare Branch Tee Adapter | -04 Male NPTF x -04 Female NPTF x -06 Male 37° JIC Flare | Steel
203301-4-6S Aeroquip by Danfoss | External Pipe/Internal Pipe/37° JIC Flare Branch Tee Adapter | -04 Male NPTF x -04 Female NPTF x -06 Male 37° JIC Flare | Steel
203301-4-6S Aeroquip by Danfoss | External Pipe/Internal Pipe/37° JIC Flare Branch Tee Adapter | -04 Male NPTF x -04 Female NPTF x -06 Male 37° JIC Flare | Steel

203301-4-6S Aeroquip by Danfoss | External Pipe/Internal Pipe/37° JIC Flare Branch Tee Adapter | -04 Male NPTF x -04 Female NPTF x -06 Male 37° JIC Flare | Steel

Sale price$22.17
Buy more, save moreDiscounts applied in cart/checkout.
Part Number
Steel		 Tube O.D. Thread P Thread T A B C
203301-2-4S 0.25" 1/8-27 7/16-20 0.78" 0.66" 1.08"
203301-4-6S 0.38" 1/4-18 9/16-18 1.09" 0.88" 1.23"
203301-6-8S 0.50" 3/8-18 3/4-16 1.22" 1.02" 1.42"
203301-8-10S 0.63" 1/2-14 7/8-14 1.47" 1.23" 1.64"
203301-12-12S 0.75" 3/4-14 1-1/16-12 1.59" 1.36" 1.89"
203301-16-16S 1.00" 1-11-1/2 1-5/16-12 1.97" 1.62" 2.17"

Additional Product Data:

Shape:

Tee

Ends Configuration:
  • 1/4in Male NPTF
  • 1/4in Female NPTF
  • 3/8in Male JIC
Material(s):
  • Steel

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
