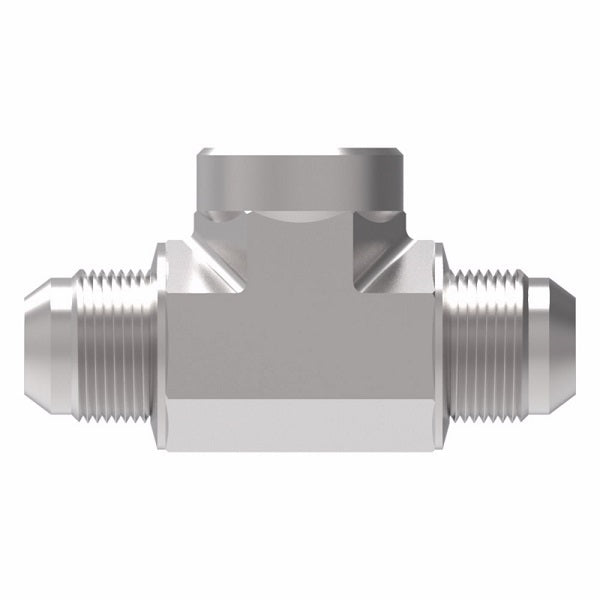

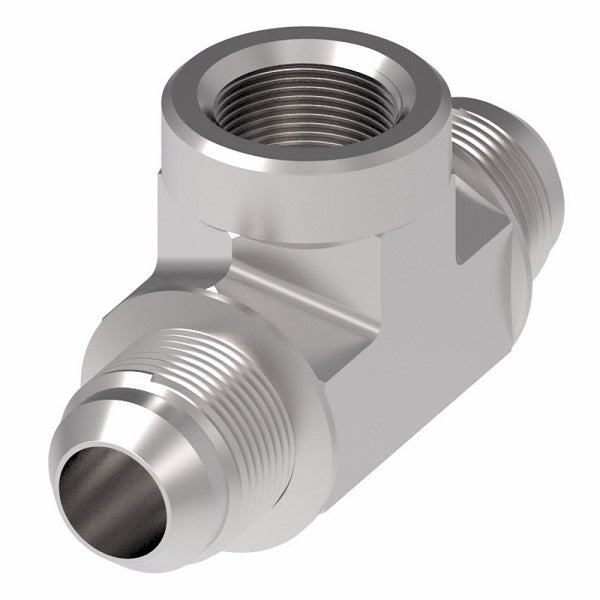

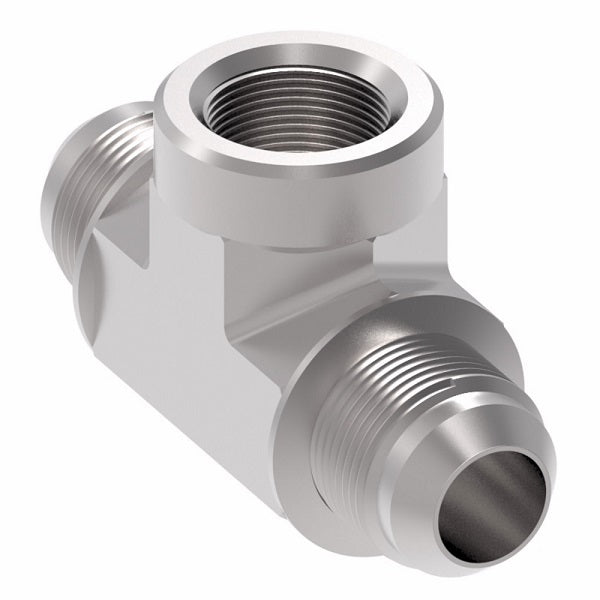

2031-12-12S Aeroquip by Danfoss | Internal Pipe Branch/37° JIC Flare Swivel Tee Adapter | -12 Female NPTF x -12 Male 37° JIC Flare x -12 Male 37° JIC Flare | Steel
2031-12-12S Aeroquip by Danfoss | Internal Pipe Branch/37° JIC Flare Swivel Tee Adapter | -12 Female NPTF x -12 Male 37° JIC Flare x -12 Male 37° JIC Flare | Steel
2031-12-12S Aeroquip by Danfoss | Internal Pipe Branch/37° JIC Flare Swivel Tee Adapter | -12 Female NPTF x -12 Male 37° JIC Flare x -12 Male 37° JIC Flare | Steel

2031-12-12S Aeroquip by Danfoss | Internal Pipe Branch/37° JIC Flare Swivel Tee Adapter | -12 Female NPTF x -12 Male 37° JIC Flare x -12 Male 37° JIC Flare | Steel

Sale price$51.20

Aeroquip® by Danfoss
Internal Pipe Branch/37° JIC Flare Swivel Tee Adapter
Female NPTF x Male 37° JIC Flare x Male 37° JIC Flare

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
10–39 $48.13
40–79 $43.52
80+ $38.40
Discounts applied in cart/checkout.

Product Data:

Shape:

Tee

Ends Configuration:
  • 3/4in Female NPTF
  • 3/4in Male JIC
  • 3/4in Male JIC
Material(s):
  • Steel
Specifications:
  • Ref. SAE 070427
Part Number
Steel		 Tube O.D. Thread P Thread T A B
2031-2-3S 0.19" 1/8-27 3/8-24 0.66" 1.03"
2031-2-4S 0.25" 1/8-27 7/16-20 0.66" 1.08"
2031-4-4S 0.25" 1/4-18 7/16-20 0.88" 1.22"
2031-4-6S 0.38" 1/4-18 9/16-18 0.88" 1.23"
2031-6-8S 0.50" 3/8-18 3/4-16 1.02" 1.42"
2031-8-8S 0.50" 1/2-14 3/4-16 1.23" 1.52"
2031-8-10S 0.63" 1/2-14 7/8-14 1.23" 1.64"
2031-12-12S 0.75" 3/4-14 1-1/16-12 1.36" 1.89"
2031-16-16S 1.00" 1-11-1/2 1-5/16-12 1.62" 2.09"
2031-32-32S 2.00" 2-11-1/2 2-1/2-12 2.39" 3.30"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Explore Danfoss (Eaton - Aeroquip)
