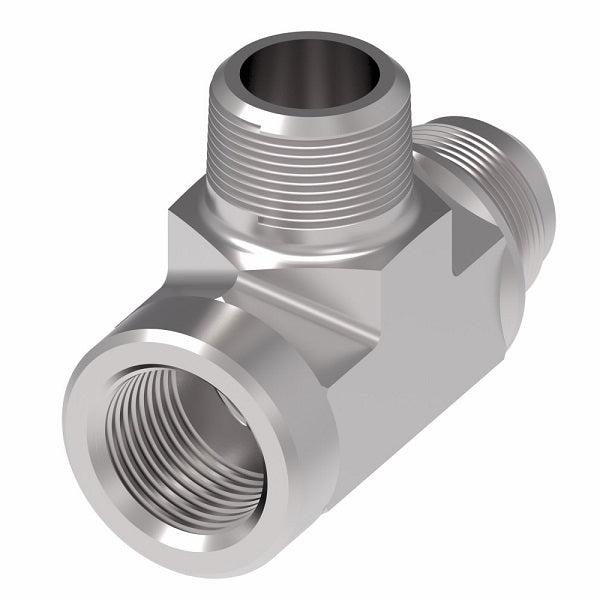

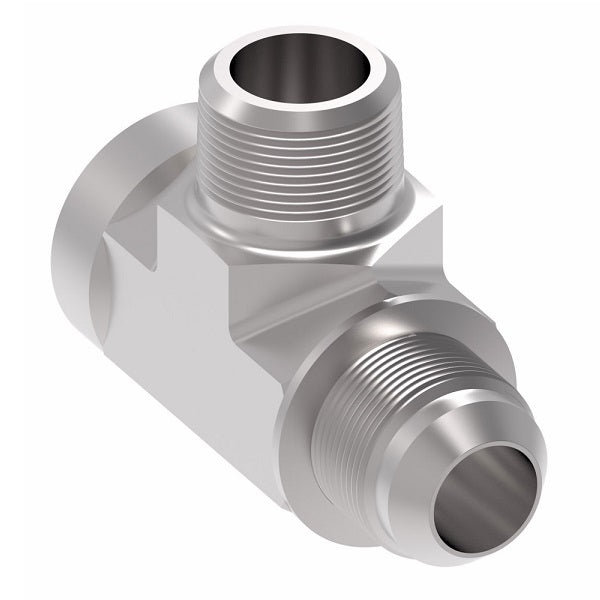

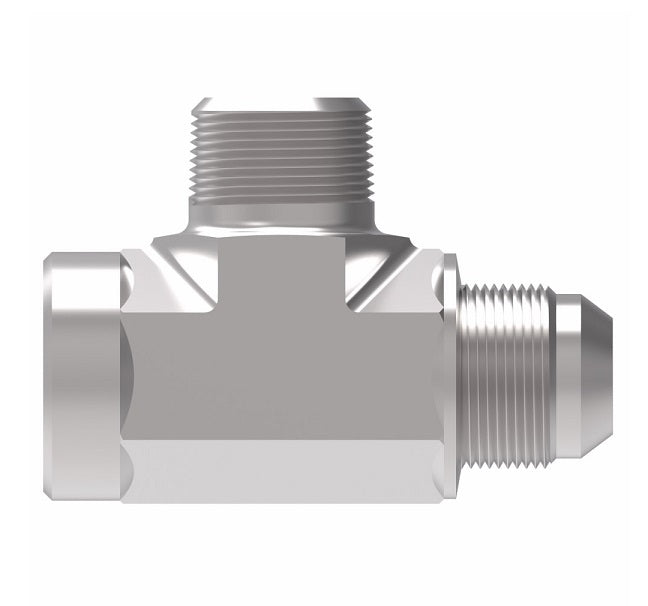

203006-4-6S Aeroquip by Danfoss | External Pipe Branch/Internal Pipe/37° JIC Flare Tee Adapter | -04 Male NPTF x -04 Female NPTF x -06 SAE 37° Male Flare | Steel
203006-4-6S Aeroquip by Danfoss | External Pipe Branch/Internal Pipe/37° JIC Flare Tee Adapter | -04 Male NPTF x -04 Female NPTF x -06 SAE 37° Male Flare | Steel
203006-4-6S Aeroquip by Danfoss | External Pipe Branch/Internal Pipe/37° JIC Flare Tee Adapter | -04 Male NPTF x -04 Female NPTF x -06 SAE 37° Male Flare | Steel

203006-4-6S Aeroquip by Danfoss | External Pipe Branch/Internal Pipe/37° JIC Flare Tee Adapter | -04 Male NPTF x -04 Female NPTF x -06 SAE 37° Male Flare | Steel

Sale price$26.94

Aeroquip® by Danfoss
External Pipe Run/37° JIC Flare Tee Adapter
Male NPTF x Male 37° JIC Flare x Male 37° JIC Flare

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
10–39 $25.32
40–79 $22.90
80+ $20.21
Discounts applied in cart/checkout.

Product Data:

Shape:

Tee

Ends Configuration:
  • 1/4in Male NPTF
  • 1/4in Female NPTF
  • 3/8in Male JIC
Material(s):
  • Steel
Specifications:
  • Ref. SAE 070424
Part Number
Steel		 Tube O.D. Thread P Thread T A B C
203006-4-6S 0.38" 1/4-18 9/16-18 1.09" 0.88" 1.23"
203006-6-8S 0.50" 3/8-18 3/4-16 1.22" 1.02" 1.42"
203006-8-10S - - - - - -
203006-12-12S 0.75" 3/4-14 1-1/16-12 1.59" 1.36" 1.89"
203006-16-16S 1.00" 1-11-1/2 1-5/16-12 1.97" 1.62" 2.71"
203006-20-20S 1.25" 1-1/4-11-1/2 1-5/8-12 2.33" 1.70" 2.38"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
