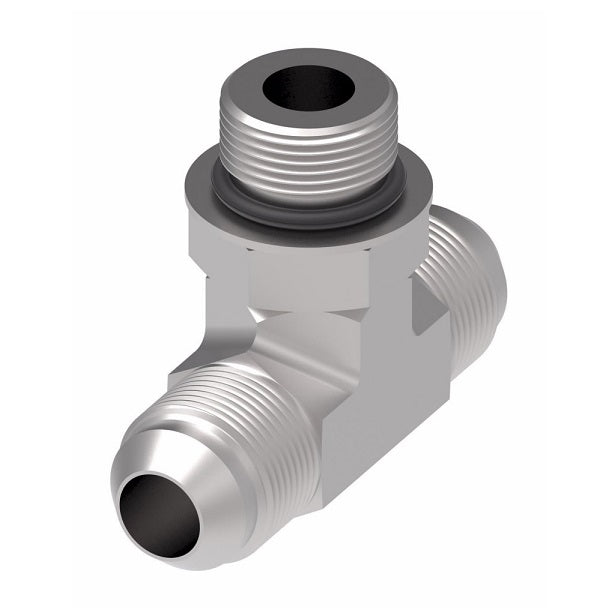

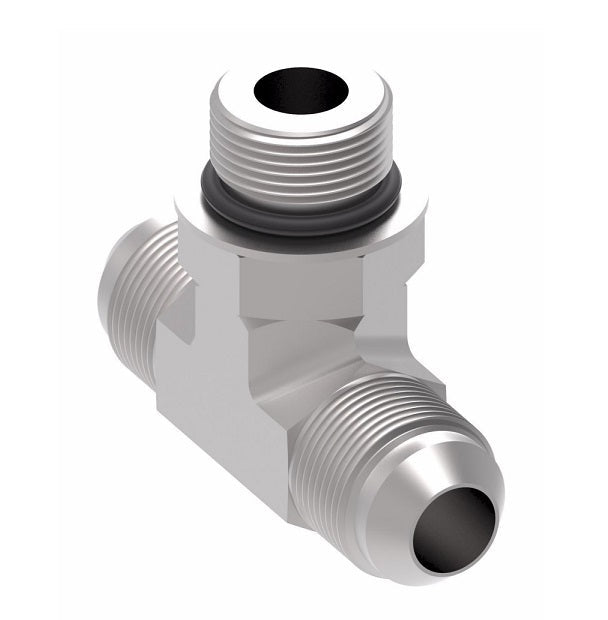

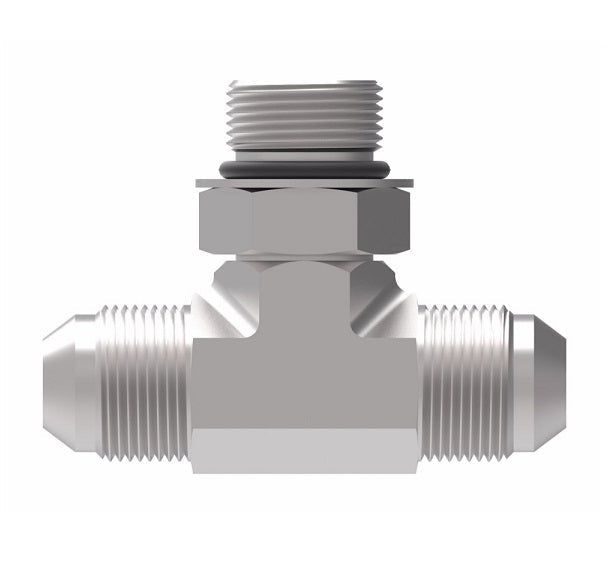

203003-12-12S Aeroquip by Danfoss | SAE ORB (adj.) Branch/37° JIC Flare Tee Adapter | -12 Male SAE O-Ring Boss x -12 Male 37° JIC Flare x -12 Male 37° JIC Flare | Steel
203003-12-12S Aeroquip by Danfoss | SAE ORB (adj.) Branch/37° JIC Flare Tee Adapter | -12 Male SAE O-Ring Boss x -12 Male 37° JIC Flare x -12 Male 37° JIC Flare | Steel
203003-12-12S Aeroquip by Danfoss | SAE ORB (adj.) Branch/37° JIC Flare Tee Adapter | -12 Male SAE O-Ring Boss x -12 Male 37° JIC Flare x -12 Male 37° JIC Flare | Steel

203003-12-12S Aeroquip by Danfoss | SAE ORB (adj.) Branch/37° JIC Flare Tee Adapter | -12 Male SAE O-Ring Boss x -12 Male 37° JIC Flare x -12 Male 37° JIC Flare | Steel

Sale price$20.20
In stock
Buy more, save moreDiscounts applied in cart/checkout.
Specifications:
  • Ref. SAE 070429
Part Number
Steel
Buna-N O-Ring		 Tube O.D. Thread T1 Thread T2 A B
203003-4-4S 0.25" 7/16-20 7/16-20 1.03" 0.89"
203003 -6-6S 0.38" 9/16-18 9/16-18 1.25" 1.06"
203003-8-8S 0.50" 3/4-16 3/4-16 1.45" 1.25"
203003-10-10S - 7/8-14 7/8-14 - -
203003-10-12-12S 0.95" 7/8-14 1-1/16-12 1.78" 1.66"
203003-12-12S 0.75" 1-1/16-12 1-1/16-12 1.94" 1.66"
203003-12-16-16S 1.00" 1-1/16-12 1-5/16-12 2.05" 1.81"
203003-16-16S 1.00" 1-5/16-12 1-5/16-12 2.05" 1.81"
203003-20-20S 1.25" 1-5/8-12 1-5/8-12 2.25" 2.06"

Additional Product Data:

Shape:

Tee

Ends Configuration:
  • 3/4in Male O-Ring Boss
  • 3/4in Male JIC
  • 3/4in Male JIC
Material(s):
  • Steel

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
