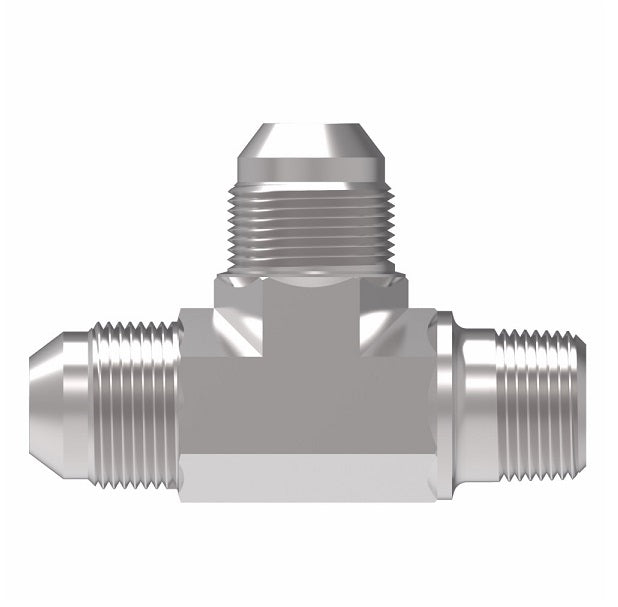

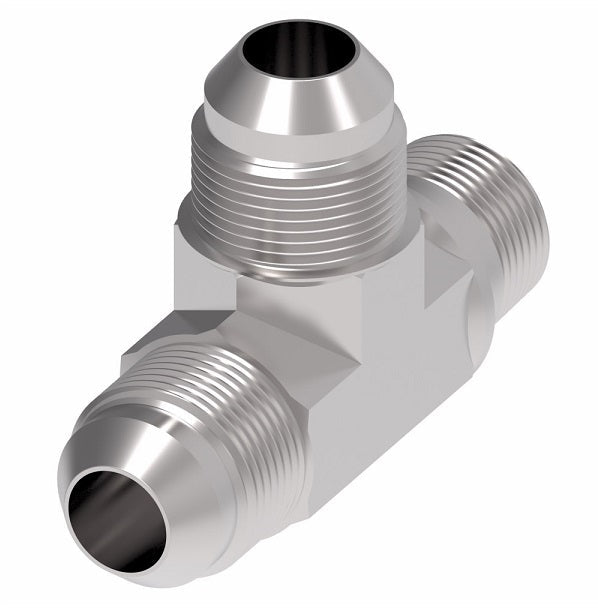

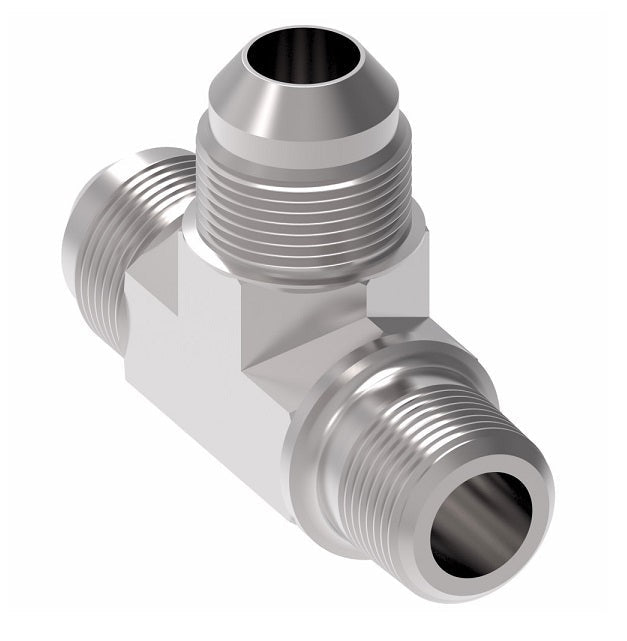

2028-32-32S Aeroquip by Danfoss | External Pipe Run/37° JIC Flare Tee Adapter | -32 Male NPTF x -32 Male 37° JIC Flare x -32 Male 37° JIC Flare | Steel
Buy more, save moreDiscounts applied in cart/checkout.
| Specifications: | |||
|---|---|---|---|
|
 |
||||||
|---|---|---|---|---|---|---|
| Part Number Steel |
Tube O.D. | Thread P | Thread T | A | B | C |
| 2028-2-3S | 0.19" | 1/8-27 | 3/8-24 | 0.72" | 0.83" | 0.83" |
| 2028-2-4S | 0.25" | 1/8-27 | 7/16-20 | 0.78" | 0.89" | 0.89" |
| 2028-4-4S | 0.25" | 1/4-18 | 7/16-20 | 1.09" | 1.05" | 1.05" |
| 2028-4-5S | 0.31" | 1/4-18 | 1/2-20 | 1.09" | 1.05" | 1.05" |
| 2028-4-6S | 0.38" | 1/4-18 | 9/16-18 | 1.09" | 1.06" | 1.06" |
| 2028-6-6S | 0.38" | 3/8-18 | 9/16-18 | 1.22" | 1.14" | 1.14" |
| 2028-6-8S | 0.50" | 3/8-18 | 3/4-16 | 1.22" | 1.25" | 1.25" |
| 2028-8-8S | 0.50" | 1/2-14 | 3/4-16 | 1.47" | 1.33" | 1.33" |
| 2028-8-10S | 0.63" | 1/2-14 | 7/8-14 | 1.47" | 1.45" | 1.45" |
| 2028-8-12S | 0.75" | 1/2-14 | 1-1/16-12 | 1.59" | 1.66" | 1.66" |
| 2028-12-10S | 0.63" | 3/4-14 | 7/8-14 | 1.59" | 1.54" | 1.54" |
| 2028-12-12S | 0.75" | 3/4-14 | 1-1/16-12 | 1.59" | 1.66" | 1.66" |
| 2028-16-16S | 1.00" | 1-11-1/2 | 1-5/16-12 | 1.97" | 1.81" | 1.81" |
| 2028-20-20S | 1.25" | 1-1/4-11-1/2 | 1-5/8-12 | 2.38" | 2.06" | 2.06" |
| 2028-24-24S | 1.50" | 1-1/2-11-1/2 | 1-7/8-12 | 2.64" | 2.33" | 2.33" |
| 2028-32-32S | 2.00" | 2-11-1/2 | 2-1/2-12 | 3.00" | 3.06" | 3.06" |
Additional Product Data:
Shape:
Tee
Ends Configuration:
Material(s):
