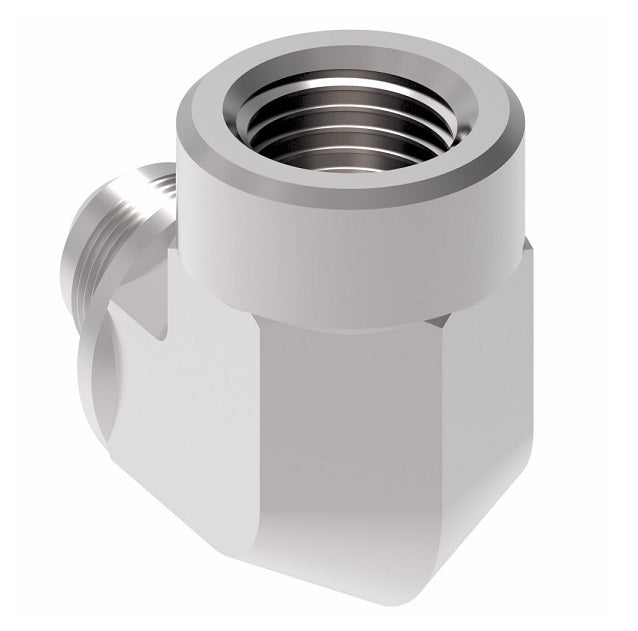

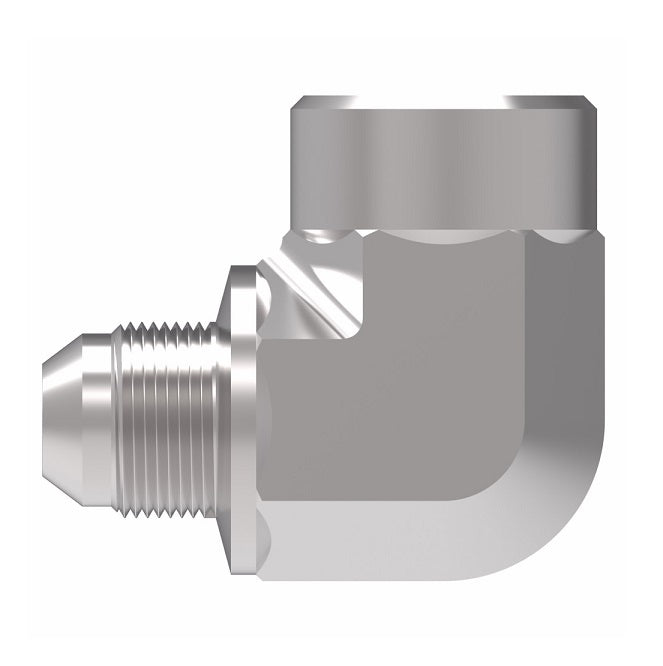

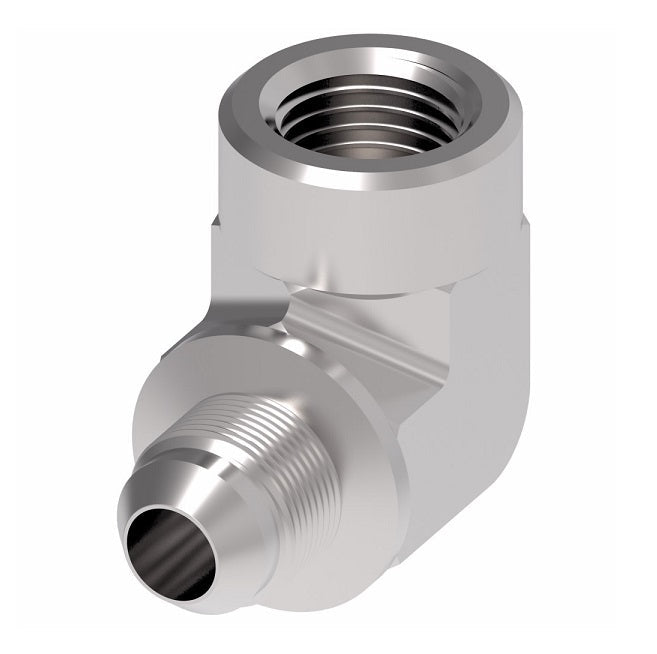

2025-6-4S Aeroquip by Danfoss | Internal Pipe/37° JIC Flare Swivel 90° Elbow Adapter | -06 Female NPTF x -04 Male 37° JIC Flare Swivel | Steel
Buy more, save moreDiscounts applied in cart/checkout.
| Specifications: | |||
|---|---|---|---|
|
 |
||||||
|---|---|---|---|---|---|---|
| Part Number Steel |
Part Number Brass |
Tube O.D. | Thread P | Thread T | A | B |
| 2025-2-4S | 2025-2-4B | 0.25" | 1/8-27 | 7/16-20 | 0.66" | 1.08" |
| 2025-2-5S | - | 0.31" | 1/8-27 | 1/2-20 | 0.66" | 1.08" |
| 2025-2-6S | - | 0.38" | 1/8-27 | 9/16-18 | 0.67" | 1.23" |
| 2025-4-4S | 2025-4-4B | 0.25" | 1/4-18 | 7/16-20 | 0.88" | 1.22" |
| 2025-4-5S | - | 0.31" | 1/4-18 | 1/2-20 | 0.88" | 1.22" |
| 2025-4-6S | - | 0.38" | 1/4-18 | 9/16-18 | 0.88" | 1.23" |
| 2025-4-8S | - | 0.50" | 1/4-18 | 3/4-16 | 1.01" | 1.42" |
| 2025-6-4S | - | 0.25" | 3/8-18 | 7/16-20 | 1.02" | 1.29" |
| 2025-6-5S | - | 0.31" | 3/8-18 | 1/2-20 | 1.02" | 1.29" |
| 2025-6-6S | - | 0.38" | 3/8-18 | 9/16-18 | 1.02" | 1.31" |
| 2025-6-8S | - | 0.50" | 3/8-18 | 3/4-16 | 1.02" | 1.42" |
| 2025-8-4S | - | 0.25" | 1/2-14 | 7/16-20 | 1.23" | 1.40" |
| 2025-8-8S | - | 0.50" | 1/2-14 | 3/4-16 | 1.23" | 1.52" |
| 2025-8-10S | - | 0.63" | 1/2-14 | 7/8-14 | 1.23" | 1.64" |
| 2025-8-12S | - | 0.75" | 1/2-14 | 1-1/16-12 | 1.35" | 1.89" |
| 2025-12-12S | - | 0.75" | 3/4-14 | 1-1/16-12 | 1.36" | 1.89" |
| 2025-16-16S | - | 1.00" | 1-11-1/2 | 1-5/16-12 | 1.62" | 2.17" |
| 2025-20-20S | - | 1.25" | 1-1/4-11-1/2 | 1-5/8-12 | 1.70" | 2.33" |
| 2025-24-24S | - | 1.50" | 1-1/2-11-1/2 | 1-7/8-12 | 2.08" | 2.89" |
Additional Product Data:
Shape:
90 Degree
Ends Configuration:
Material(s):
Special Properties:
