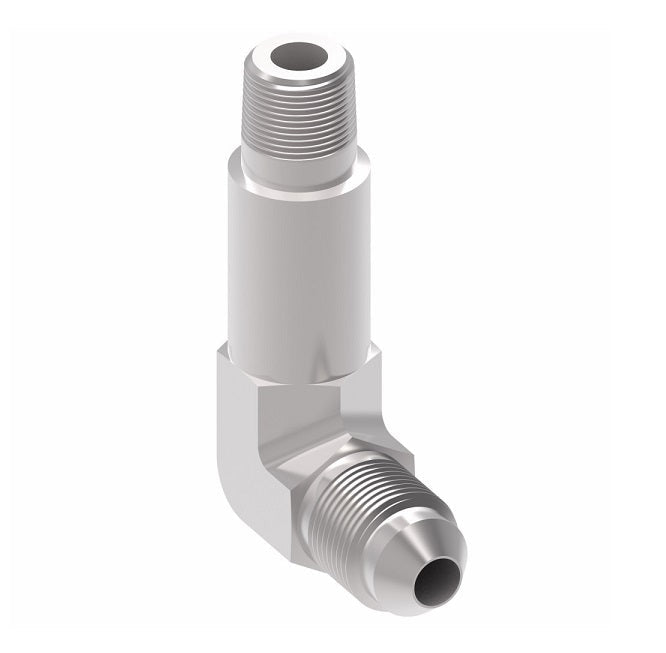

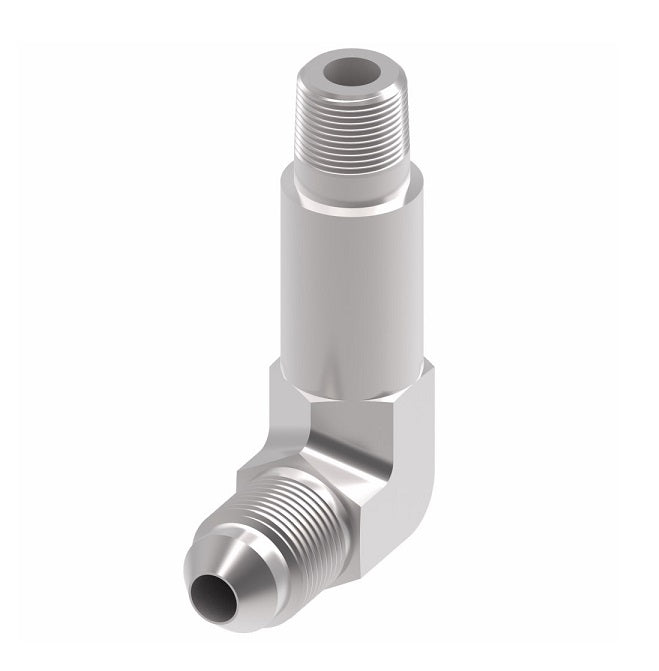

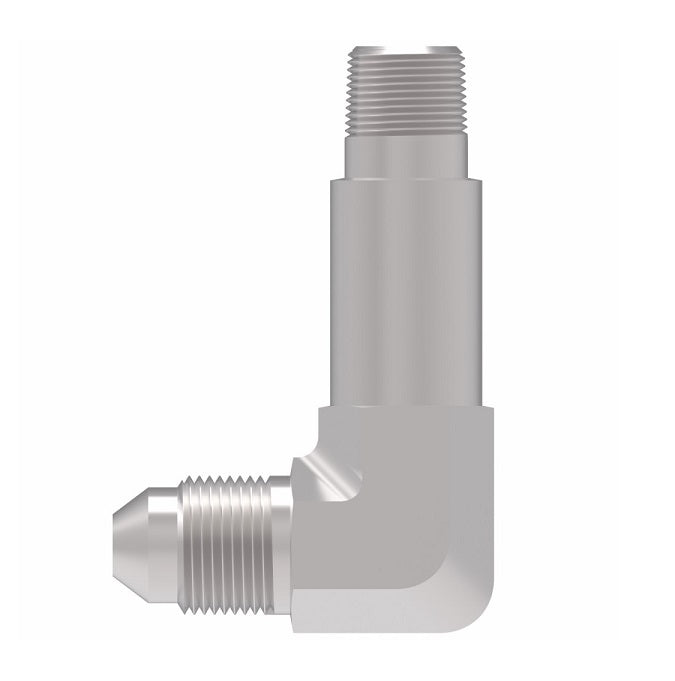

202413-4-5S Aeroquip by Danfoss | Long External Pipe/37° JIC Flare 90° Elbow Adapter | -04 Male NPTF x -05 Male 37° JIC Flare | Steel
202413-4-5S Aeroquip by Danfoss | Long External Pipe/37° JIC Flare 90° Elbow Adapter | -04 Male NPTF x -05 Male 37° JIC Flare | Steel
202413-4-5S Aeroquip by Danfoss | Long External Pipe/37° JIC Flare 90° Elbow Adapter | -04 Male NPTF x -05 Male 37° JIC Flare | Steel

202413-4-5S Aeroquip by Danfoss | Long External Pipe/37° JIC Flare 90° Elbow Adapter | -04 Male NPTF x -05 Male 37° JIC Flare | Steel

Sale price$15.55
Buy more, save moreDiscounts applied in cart/checkout.
Specifications:
  • Ref. SAE 071602
Part Number
Steel		 Tube O.D. Thread P Thread T A B
202413-2-4S 0.25" 1/8-27 7/16-20 1.56" 0.89"
202413-2-5S 0.31" 1/8-27 1/2-20 1.63" 0.95"
202413-4-4S 0.25" 1/4-18 7/16-20 2.07" 1.05"
202413-4-5S 0.31" 1/4-18 1/2-20 2.07" 1.05"
202413-4-6S 0.38" 1/4-18 9/16-18 2.07" 1.06"
202413-6-6S 0.38" 3/8-18 9/16-18 2.42" 1.14"
202413-6-8S 0.50" 3/8-18 3/4-16 2.42" 1.25"
202413-8-8S 0.50" 1/2-14 3/4-16 2.87" 1.33"
202413-8-10S 0.63" 1/2-14 7/8-14 2.87" 1.45"
202413-8-12S 0.75" 1/2-14 1-1/16-12 3.28" 1.66"
202413-12-12S 0.75" 3/4-14 1-1/16-12 3.28" 1.66"
202413-12-16S 1.00" 3/4-14 1-5/16-12 3.86" 1.81"
202413-16-16S 1.00" 1-11-1/2 1-5/16-12 4.05" 1.81"
202413-20-20S 1.25" 1-1/4-11-1/2 1-5/8-12 4.84" 2.06"

Additional Product Data:

Shape:

90 Degree

Ends Configuration:
  • 1/4in Male NPTF
  • 5/16in Male JIC
Material(s):
  • Steel

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
