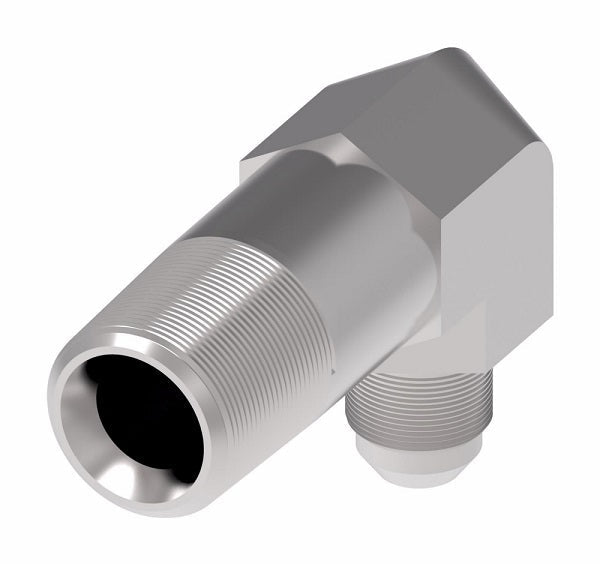

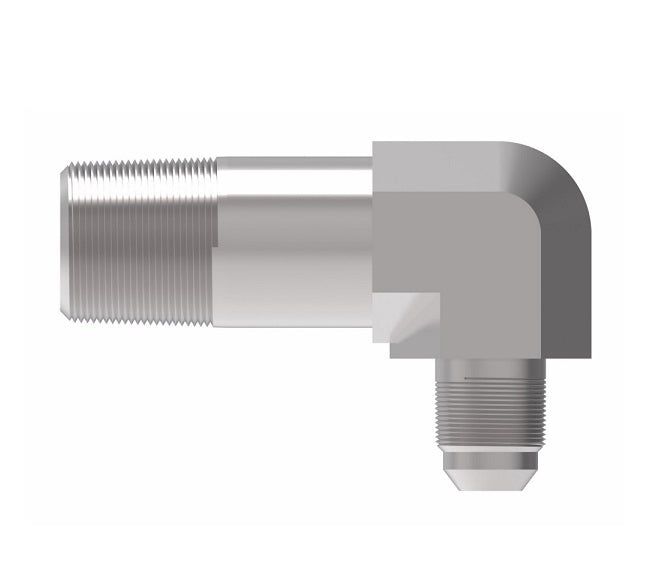

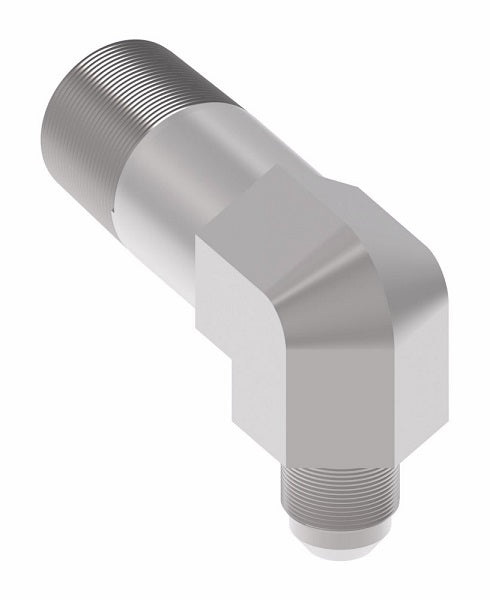

202411-16-16S Aeroquip by Danfoss | Extra Pipe/37° JIC Flare 90° Elbow Adapter | -16 Male NPTF x -16 Male 37° JIC Flare | Steel
Aeroquip® by Danfoss
Extra Pipe/37° JIC Flare Adapter
Male NPTF x Male 37° JIC Flare
90° Elbow
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $28.91 |
| 40–79 | $26.15 |
| 80+ | $23.07 |
Discounts applied in cart/checkout.
Product Data:
Shape:
90 Degree
Ends Configuration:
Material(s):
Special Properties:
| Specifications: | |||
|---|---|---|---|
|
 |
|||||
|---|---|---|---|---|---|
| Part Number Steel |
Tube O.D. | Thread P | Thread T | A | B |
| 202411-2-4S | 0.25" | 1/8-27 | 7/16-20 | 1.17" | 0.89" |
| 202411-2-5S | 0.31" | 1/8-27 | 1/2-20 | 1.17" | 0.95" |
| 202411-4-4S | 0.25" | 1/4-18 | 7/16-20 | 1.58" | 1.05" |
| 202411-4-6S | 0.38" | 1/4-18 | 9/16-18 | 1.58" | 1.06" |
| 202411-4-8S | 0.50" | 1/4-18 | 3/4-16 | 1.82" | 1.25" |
| 202411-6-6S | 0.38" | 3/8-18 | 9/16-18 | 1.82" | 1.14" |
| 202411-6-8S | 0.50" | 3/8-18 | 3/4-16 | 1.82" | 1.25" |
| 202411-8-8S | 0.50" | 1/2-14 | 3/4-16 | 2.17" | 1.33" |
| 202411-8-10S | 0.63" | 1/2-14 | 7/8-14 | 2.17" | 1.45" |
| 202411-12-10S | 0.63" | 3/4-14 | 7/8-14 | 2.44" | 1.54" |
| 202411-12-12S | 0.75" | 3/4-14 | 1-1/16-12 | 2.44" | 1.66" |
| 202411-12-16S | 1.00" | 3/4-14 | 1-5/16-12 | 2.82" | 1.81" |
| 202411-16-16S | 1.00" | 1-11-1/2 | 1-5/16-12 | 3.01" | 1.81" |
| 202411-20-20S | 1.25" | 1-1/4-11-1/2 | 1-5/8-12 | 3.69" | 2.06" |
