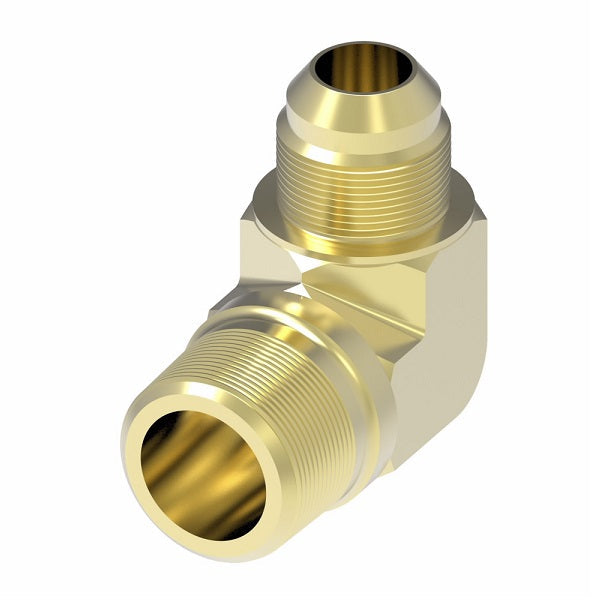

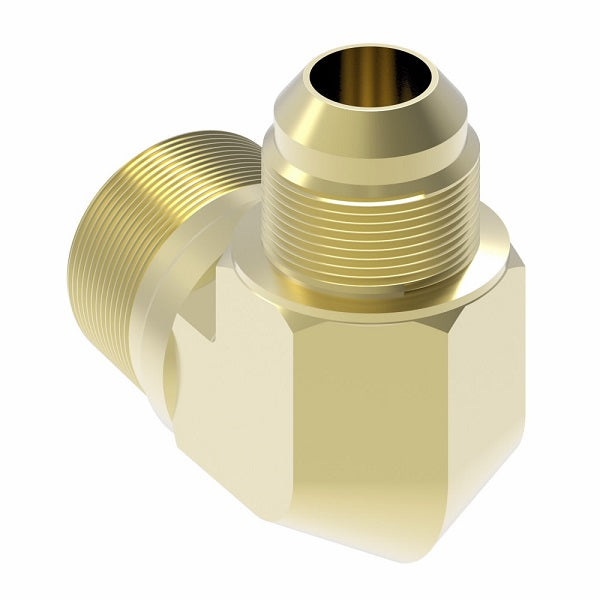

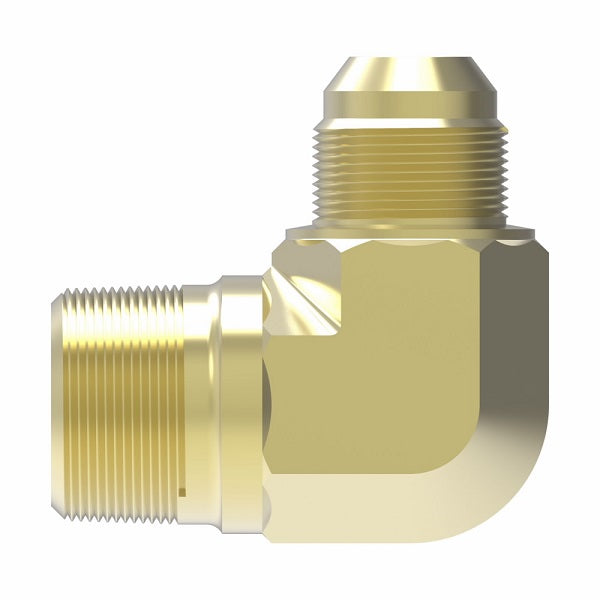

2024-12-12B Aeroquip by Danfoss | External Pipe/37° JIC Flare 90° Elbow Adapter | -12 Male NPTF x -12 Male 37° JIC Flare | Brass
Aeroquip® by Danfoss
External Pipe/37° JIC Flare Adapter
Male NPTF x Male 37° JIC Flare
90° Elbow
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $32.63 |
| 40–79 | $29.50 |
| 80+ | $26.03 |
Discounts applied in cart/checkout.
Product Data:
Shape:
90 Degree
Ends Configuration:
Material(s):
| Specifications: | |||
|---|---|---|---|
|
 |
|||||||
|---|---|---|---|---|---|---|---|
| Part Number Steel |
Part Number Brass |
Part Number Stainless Steel |
Tube O.D. | Thread P | Thread T | A | B |
| 2024-2-3S | - | - | 0.19" | 1/8-27 | 3/8-24 | 0.72" | 0.83" |
| 2024-2-4S | 2024-2-4B | 259-2024-2-4 | 0.25" | 1/8-27 | 7/16-20 | 0.78" | 0.89" |
| 2024-2-5S | - | - | 0.31" | 1/8-27 | 1/2-20 | 0.78" | 0.95" |
| 2024-2-6S | 2024-2-6B | - | 0.38" | 1/8-27 | 9/16-18 | 0.90" | 1.06" |
| 2024-4-4S | 2024-4-4B | 259-2024-4-4 | 0.25" | 1/4-18 | 7/16-20 | 1.09" | 1.05" |
| 2024-4-5S | 2024-4-5B | - | 0.31" | 1/4-18 | 1/2-20 | 1.09" | 1.05" |
| 2024-4-6S | 2024-4-6B | 259-2024-4-6 | 0.38" | 1/4-18 | 9/16-18 | 1.09" | 1.06" |
| 2024-4-8S | - | - | 0.50" | 1/4-18 | 3/4-16 | 1.22" | 1.25" |
| 2024-6-4S | 2024-6-4B | - | 0.25" | 3/8-18 | 7/16-20 | 1.22" | 1.12" |
| 2024-6-5S | - | - | 0.31" | 3/8-18 | 1/2-20 | 1.22" | 1.12" |
| 2024-6-6S | 2024-6-6B | 259-2024-6-6 | 0.38" | 3/8-18 | 9/16-18 | 1.22" | 1.14" |
| 2024-6-8S | 2024-6-8B | - | 0.50" | 3/8-18 | 3/4-16 | 1.22" | 1.25" |
| 2024-6-10S | - | - | 0.63" | 3/8-18 | 7/8-14 | 1.28" | 1.45" |
| 2024-6-12S | - | - | 0.75" | 3/8-18 | 1-1/16-12 | 1.40" | 1.66" |
| 2024-8-4S | - | - | 0.25" | 1/2-14 | 7/16-20 | 1.47" | 1.21" |
| 2024-8-6S | 2024-8-6B | 259-2024-8-6 | 0.38" | 1/2-14 | 9/16-18 | 1.47" | 1.22" |
| 2024-8-8S | 2024-8-8B | 259-2024-8-8 | 0.50" | 1/2-14 | 3/4-16 | 1.47" | 1.33" |
| 2024-8-10S | 2024-8-10B | - | 0.63" | 1/2-14 | 7/8-14 | 1.47" | 1.45" |
| 2024-8-12S | 2024-8-12B | - | 0.75" | 1/2-14 | 1-1/16-12 | 1.59" | 1.66" |
| 2024-8-16S | - | - | 1.00" | 1/2-14 | 1-5/16-12 | 1.78" | 1.81" |
| 2024-12-6S | - | - | 0.38" | 3/4-14 | 9/16-18 | 1.59" | 1.31" |
| 2024-12-8S | - | - | 0.50" | 3/4-14 | 3/4-16 | 1.59" | 1.42" |
| 2024-12-10S | - | - | 0.63" | 3/4-14 | 7/8-14 | 1.59" | 1.54" |
| 2024-12-12S | 2024-12-12B | - | 0.75" | 3/4-14 | 1-1/16-12 | 1.59" | 1.66" |
| 2024-12-16S | 2024-12-16B | - | 1.00" | 3/4-14 | 1-5/16-12 | 1.78" | 1.81" |
| 2024-16-8S | - | - | 0.50" | 1-11-1/2 | 3/4-16 | 1.97" | 1.52" |
| 2024-16-12S | 2024-16-12B | - | 0.75" | 1-11-1/2 | 1-1/16-12 | 1.97" | 1.76" |
| 2024-16-16S | 2024-16-16B | 259-2024-16-16 | 1.00" | 1-11-1/2 | 1-5/16-12 | 1.97" | 1.81" |
| 2024-16-20S | - | - | 1.25" | 1-11-1/2 | 1-5/8-12 | 2.35" | 2.06" |
| 2024-20-16S | - | - | 1.00" | 1-1/4-11-1/2 | 1-5/16-12 | 2.38" | 2.01" |
| 2024-20-20S | 2024-20-20B | - | 1.25" | 1-1/4-11-1/2 | 1-5/8-12 | 2.38" | 2.06" |
| 2024-20-24S | - | - | 1.50" | 1-1/4-11-1/2 | 1-7/8-12 | 2.61" | 2.33" |
| 2024-24-20S | - | - | 1.25" | 1-1/2-11-1/2 | 1-5/8-12 | 2.64" | 2.20" |
| 2024-24-24S | 2024-24-24B | - | 1.50" | 1-1/2-11-1/2 | 1-7/8-12 | 2.64" | 2.33" |
| - | 2024-32-24B | - | - | 2-1/2-12 | 1-1/2-11-1/2 | - | - |
| 2024-24-32S | - | - | 2.00" | 1-1/2-11-1/2 | 2-1/2-12 | 2.97" | 3.06" |
| 2024-32-32S | 2024-32-32B | - | 2.00" | 2-11-1/2 | 2-1/2-12 | 3.00" | 3.06" |
