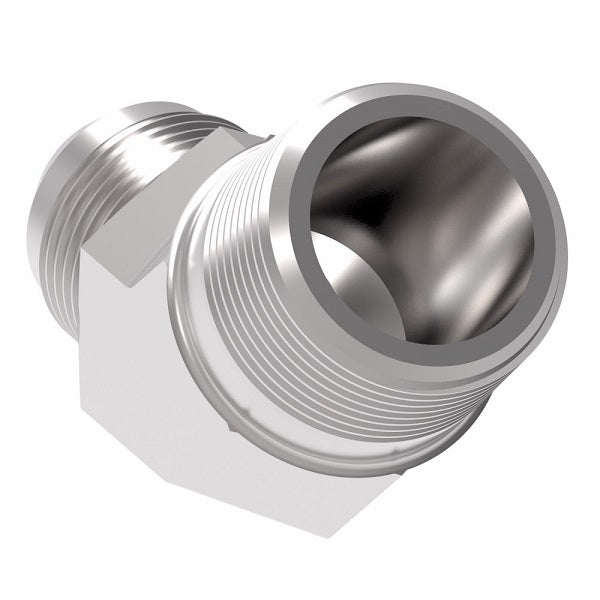

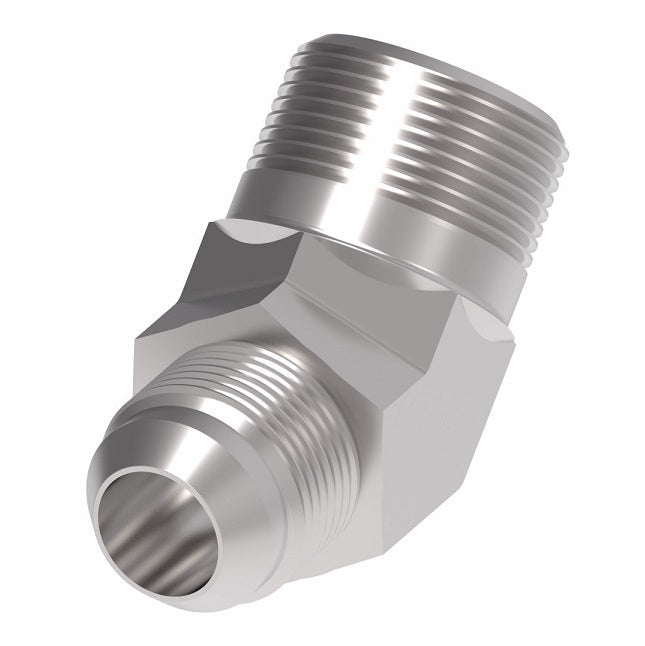

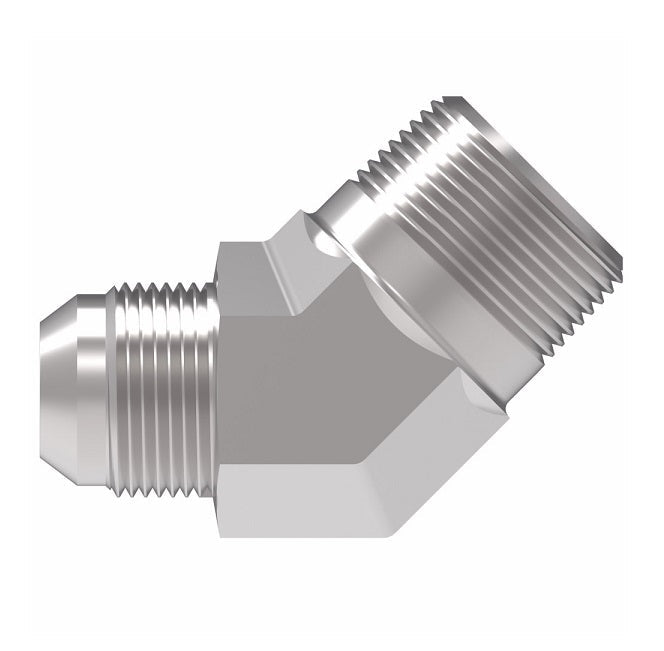

2023-2-4S Aeroquip by Danfoss | External Pipe/37° JIC Flare 45° Elbow Adapter | -02 Male NPTF x -04 Male JIC | Steel
Minimum Order Quantity: 5 Units
Aeroquip® by Danfoss
External Pipe/37° JIC Flare Adapter
Male NPTF x Male JIC
45° Elbow
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $5.41 |
| 40–79 | $4.90 |
| 80+ | $4.32 |
Discounts applied in cart/checkout.
Product Data:
Shape:
45 Degree
Ends Configuration:
Material(s):
| Specifications: | |||
|---|---|---|---|
|
 |
|||||||
|---|---|---|---|---|---|---|---|
| Part Number Steel |
Part Number Brass |
Part Number Stainless Steel |
Tube O.D. | Thread P | Thread T | A | B |
| 2023-2-3S | 2023-2-4B | - | 0.19" | 1/8-27 | 3/8-24 | 0.72" | 0.83" |
| 2023-2-4S | - | - | 0.25" | 1/8-27 | 7/16-20 | 0.64" | 0.72" |
| 2023-2-5S | - | - | 0.31" | 1/8-27 | 1/2-20 | 0.64" | 0.77" |
| 2023-2-6S | - | - | 0.38" | 1/8-27 | 9/16-18 | 0.67" | 0.83" |
| 2023-4-4S | 2023-4-4B | - | 0.25" | 1/4-18 | 7/16-20 | 0.86" | 0.82" |
| 2023-4-5S | 2023-4-5B | - | 0.31" | 1/4-18 | 1/2-20 | 0.86" | 0.82" |
| 2023-4-6S | 2023-4-6B | 259-2023-4-6 | 0.38" | 1/4-18 | 9/16-18 | 0.86" | 0.83" |
| 2023-4-8S | - | - | 0.50" | 1/4-18 | 3/4-16 | 0.95" | 0.98" |
| 2023-6-4S | - | - | 0.25" | 3/8-18 | 7/16-20 | 0.95" | 0.85" |
| 2023-6-6S | 2023-6-6B | - | 0.38" | 3/8-18 | 9/16-18 | 0.95" | 0.87" |
| 2023-6-8S | 2023-6-8B | - | 0.50" | 3/8-18 | 3/4-16 | 0.95" | 0.98" |
| 2023-6-10S | - | - | 0.63" | 3/8-18 | 7/8-14 | 0.98" | 1.11" |
| 2023-6-12S | - | - | 0.75" | 3/8-18 | 1-1/16-18 | 1.01" | 1.28" |
| 2023-8-6S | - | - | 0.38" | 1/2-14 | 9/16-18 | 1.17" | 0.88" |
| 2023-8-8S | 2023-8-8B | - | 0.50" | 1/2-14 | 3/4-16 | 1.17" | 0.99" |
| 2023-8-10S | 2023-8-10B | - | 0.63" | 1/2-14 | 7/8-14 | 1.17" | 1.11" |
| 2023-8-12S | - | - | 0.75" | 1/2-14 | 1-1/16-12 | 1.20" | 1.28" |
| 2023-12-8S | - | - | 0.50" | 3/4-14 | 3/4-16 | 1.20" | 1.04" |
| 2023-12-10S | - | - | 0.63" | 3/4-14 | 7/8-14 | 1.20" | 1.16" |
| 2023-12-12S | 2023-12-12B | - | 0.75" | 3/4-14 | 1-1/16-12 | 1.20" | 1.28" |
| 2023-12-16S | - | - | 1.00" | 3/4-14 | 1-5/16-12 | 1.29" | 1.47" |
| 2023-16-12S | - | - | 0.75" | 1-11-1/2 | 1-1/16-12 | 1.48" | 1.42" |
| 2023-16-16S | 2023-16-16B | - | 1.00" | 1-11-1/2 | 1-5/16-12 | 1.48" | 1.47" |
| 2023-16-20S | - | - | 1.25" | 1-11-1/2 | 1-5/8-12 | 1.64" | 1.59" |
| 2023-20-20S | - | - | 1.25" | 1-1/4-11-1/2 | 1-5/8-12 | 1.67" | 1.59" |
| 2023-24-24S | - | - | 1.50" | 1-1/2-11-1/2 | 1-7/8-12 | 1.77" | 1.78" |
| 2023-32-32S | - | - | 2.00" | 2-11-1/2 | 2-1/2-12 | 2.11" | 2.22" |
