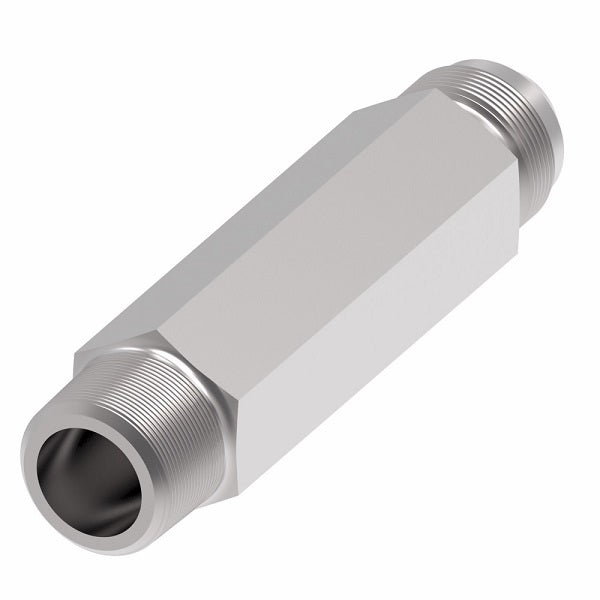

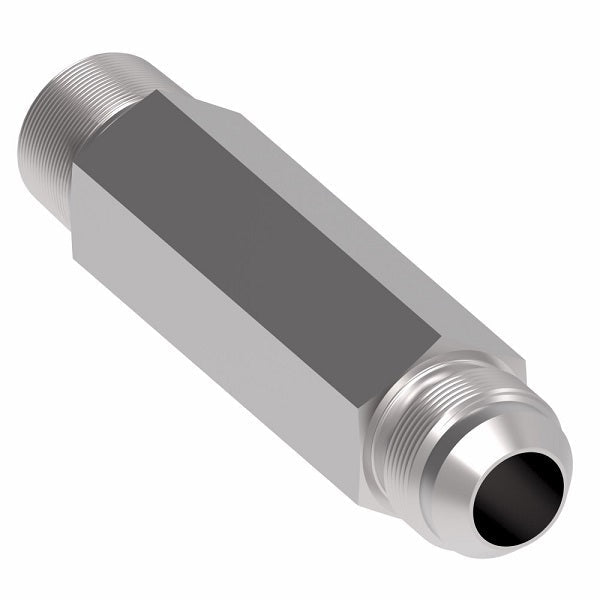

202114-2-4S Aeroquip by Danfoss | External Pipe/37° JIC Flare Long Adapter | -02 Male NPTF x -04 Male JIC | Steel
202114-2-4S Aeroquip by Danfoss | External Pipe/37° JIC Flare Long Adapter | -02 Male NPTF x -04 Male JIC | Steel
202114-2-4S Aeroquip by Danfoss | External Pipe/37° JIC Flare Long Adapter | -02 Male NPTF x -04 Male JIC | Steel

202114-2-4S Aeroquip by Danfoss | External Pipe/37° JIC Flare Long Adapter | -02 Male NPTF x -04 Male JIC | Steel

Sale price$17.00
Buy more, save moreDiscounts applied in cart/checkout.
Part Number
Steel		 Tube O.D. Threads P Threads T A
202114-2-4S 0.25" 1/8-27 7/16-20 2.56"
202114-4-4S 0.25" 1/4-18 7/16-20 3.25"
202114-4-5S 0.31" 1/4-18 1/2-20 3.25"
202114-4-6S 0.38" 1/4-18 9/16-18 3.25"
202114-6-8S 0.50" 3/8-18 3/4-16 4.00"
202114-8-6S 0.38" 1/2-14 9/16-18 4.17"
202114-8-10S 0.63" 1/2-14 7/8-14 4.38"
202114-12-12S 0.75" 3/4-14 1-1/16-12 5.00"
202114-12-16S 1.00" 3/4-14 1-5/16-12 5.56"
202114-16-16S 1.00" 1-11-1/2 1-5/16-12 5.75"

Additional Product Data:

Shape:

Straight

Ends Configuration:
  • 1/8in Male NPTF
  • 1/4in Male JIC
Material(s):
  • Steel

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Explore Danfoss (Eaton - Aeroquip)
