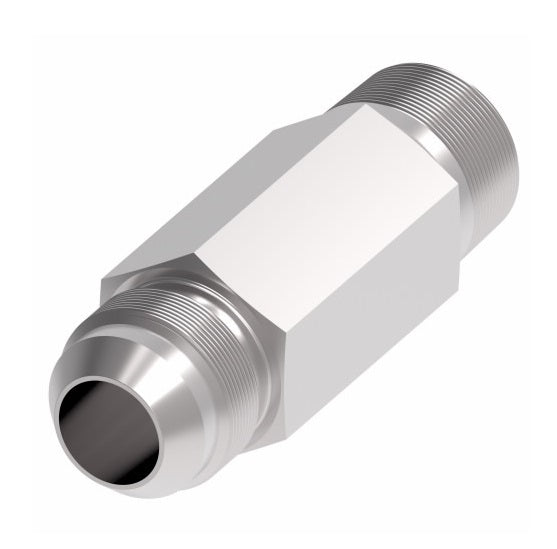

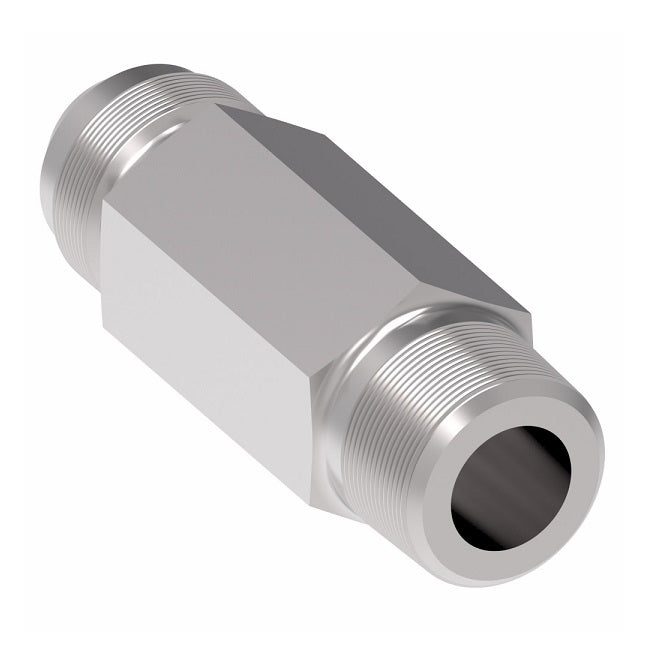

202113-8-10S Aeroquip by Danfoss | External Pipe/37° Flare Adapter | -08 Male NPTF x -10 Male JIC | Steel
202113-8-10S Aeroquip by Danfoss | External Pipe/37° Flare Adapter | -08 Male NPTF x -10 Male JIC | Steel
202113-8-10S Aeroquip by Danfoss | External Pipe/37° Flare Adapter | -08 Male NPTF x -10 Male JIC | Steel

202113-8-10S Aeroquip by Danfoss | External Pipe/37° Flare Adapter | -08 Male NPTF x -10 Male JIC | Steel

Sale price$29.16

Aeroquip® by Danfoss
External Pipe/37° Flare Adapter
Male NPTF x Male JIC
Straight

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
10–39 $27.41
40–79 $24.79
80+ $21.87
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1/2in Male NPTF
  • 5/8in Male JIC
Material(s):
  • Steel
Part Number
Steel		 Tube O.D. Threads P Threads T A
202113-2-4S 0.25" 1/8-27 7/16-20 1.81"
202113-2-5S 0.31" 1/8-27 1/2-20 1.94"
202113-4-4S 0.25" 1/4-18 7/16-20 2.25"
202113-4-5S 0.31" 1/4-18 1/2-20 2.25"
202113-4-6S 0.38" 1/4-18 9/16-18 2.25"
202113-6-6S 0.38" 3/8-18 9/16-18 2.50"
202113-6-8S 0.50" 3/8-18 3/4-16 2.75"
202113-8-8S - - - -
202113-8-10S 0.63" 1/2-14 7/8-14 3.21"
202113-8-12S 0.75" 1/2-14 11/16-12 3.28"
202113-12-12S 0.75" 3/4-14 11/16-12 3.50"
202113-16-16S 1.00" 1-11-1/2 15/16-12 4.00"
202113-20-20S 1.50" 1-1/4-11-1/2 1-5/8-12 4.50"
202113-24-24S 1.50" 1-1/2-11-1/2 1-7/8-12 4.88"
202113-32-32S 2.00" 2-11-1/2 2-1/2-12 5.62"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
