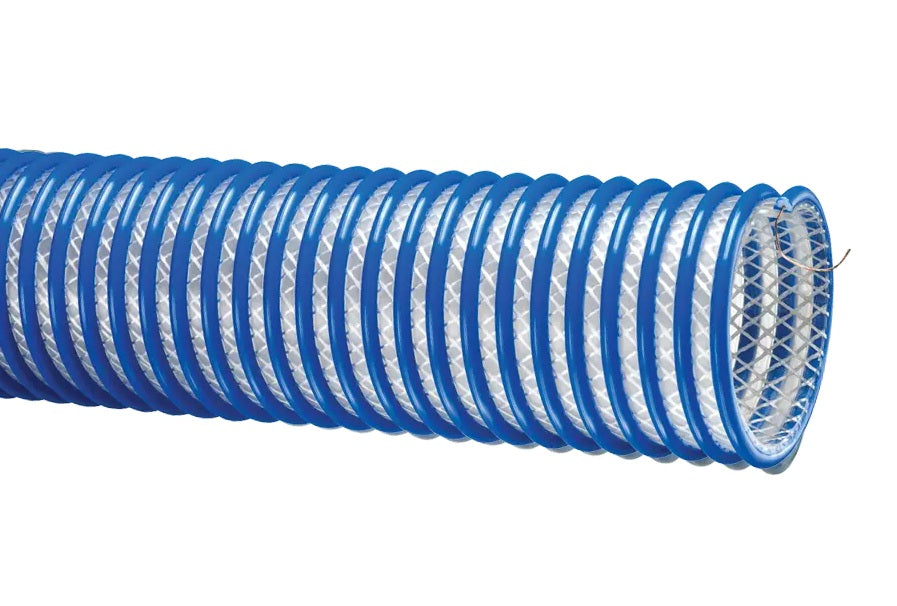

2020-200X100 Tigerflex® by Kuriyama | 2020™ Series | Heavy-Duty Food Grade Fabric Reinforced Material Handling Hose | with Grounding Wire | Polyurethane | 2" ID | 2.65" OD | 100ft Length
Package Quantity: 100 Foot
Buy more, save moreDiscounts applied in cart/checkout.
Food Grade Material Handling Hose
Tigerflex™ 2020 Series
Heavy duty, abrasion-resistant polyurethane-lined hose for food grade material handling — built for bulk truck and railcar unloading in both suction and discharge service.
Double-Ply PU Tube
Extra thick, severe-abrasion rated
Food Grade
FDA & USDA compliant liner
Grounding Wire
Helps dissipate static charge
See-the-Flow
Transparent construction
1
What is this product used for?
- Bulk truck and railcar unloading
- Food grade material handling — heavy duty abrasive
- Suction and discharge
2
What are the key specifications?
Tube
Extra thick double-ply polyurethane
Reinforcement
Polyester fabric, rigid PVC helix, and grounding wire
Service Temperature Range
-40°F (-40°C) to +150°F (+65°C)
(Actual service temperature range is application dependent)
Compliance
BSE/TSE (02), FDA (03), Phthalate Free (10), RoHS (11), USDA (12)
Origin
Made in the USA
3
What are the main product features?
- Extra Thick Abrasion Resistant Double-Ply Polyurethane Tube — Designed for dry applications where severe abrasion is a factor. Provides for longer hose life and lower operating costs versus rubber or PVC hoses.
- Food Grade Materials — Hose liner (product contact surface) complies with applicable FDA (04) and USDA (12) requirements.
- Fabric Reinforcement — Designed with high tensile strength, food grade (05), polyester yarn jacket to handle both suction and higher pressure discharge applications.
- Grounding Wire — Multi-strand wire helps prevent the build-up of static electricity for added safety and to help keep material flowing smoothly. It's embedded within the rigid helix to prevent contamination of transferred materials.
- Transparent Construction — "See-the-flow." Allows for visual confirmation of material flow.
- "Cold-Flex" Materials — Hose remains flexible in subzero temperatures.
- Easy Slide Helix — Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-to-handle.
- Oil Resistant Polyurethane Tube — Resists most animal and petroleum based oils.
4
Which sizes or configurations are available?
| Part Number | ID | OD | Working Pressure (PSI) | Vacuum Rating (in Hg) | Min. Bending Radius | Length | Weight (lbs/ft) | ||
|---|---|---|---|---|---|---|---|---|---|
| at 68°F | at 104°F | at 68°F | at 104°F | ||||||
| 2" ID | |||||||||
| 2020-200X100 | 2" (50.1 mm) | 2.65" (67.5 mm) | 75 PSI | 40 PSI | Full | 28 in Hg | 9" | 100 ft | 0.94 |
| 3" ID | |||||||||
| 2020-300X50 | 3" (76.2 mm) | 3.78" (96.0 mm) | 70 PSI | 35 PSI | Full | 28 in Hg | 10" | 50 ft | 1.20 |
| 2020-300X100 | 3" (76.2 mm) | 3.78" (96.0 mm) | 70 PSI | 35 PSI | Full | 28 in Hg | 10" | 100 ft | 1.20 |
| 4" ID | |||||||||
| 2020-400X50 | 4" (101.6 mm) | 4.84" (123.0 mm) | 65 PSI | 30 PSI | Full | 28 in Hg | 12" | 50 ft | 1.60 |
| 2020-400X100 | 4" (101.6 mm) | 4.84" (123.0 mm) | 65 PSI | 30 PSI | Full | 28 in Hg | 12" | 100 ft | 1.60 |
| 5" ID | |||||||||
| 2020-500X50 | 5" (127.0 mm) | 5.79" (147.0 mm) | 45 PSI | 22 PSI | 28 in Hg | 25 in Hg | 14" | 50 ft | 2.45 |
| 6" ID | |||||||||
| 2020-600X25 | 6" (152.4 mm) | 6.93" (176.0 mm) | 40 PSI | 22 PSI | 28 in Hg | 25 in Hg | 16" | 25 ft | 2.86 |
| 2020-600X50 | 6" (152.4 mm) | 6.93" (176.0 mm) | 40 PSI | 22 PSI | 28 in Hg | 25 in Hg | 16" | 50 ft | 2.86 |
5
Where can I find product documents?
Kuriyama Tigerflex Hose Specifications Guide PDF
For more information on specification codes and hose details, consult the Kuriyama Tigerflex Hose Specifications Guide.
⚠ CAUTION: Grounding wire is designed to help dissipate static charge when extracted and connected to ground. Hose is not to be used in combustible situations unless it has been determined by the end user the application is not sufficient to result in propagating brush discharge.
Note: Service life may vary depending on operating conditions and type of material being conveyed.
