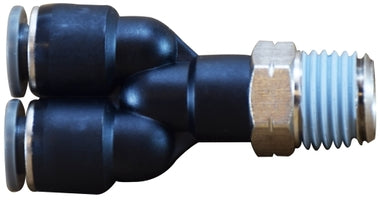

20187C by Midland | Push-In Fitting | Swivel Connector | 1/4" Tube OD x 1/8" Male NPT | Y | Composite Body
Buy more, save moreDiscounts applied in cart/checkout.
| Fluid Admitted: | Air | Working Pressure Range: | 0-150 PSI (10 BAR) |
|---|---|---|---|
| Min. Burst Pressure: | 340 PSI (23 BAR) | Working Temperature Range: | 0°F ~160°F |
| Tolerance: | +/- .02 on all dimensions. | ||
| Materials of Construcion | ||
|---|---|---|
| 1 | Body | Composite Polyacetal (Hemopolymer, Copolymer) |
| 2 | Body | Brass |
| 3 | Tube Release | Acetal Resin |
| 4 | Retainer | Brass |
| 5 | Gripper Ring | Stainless Steel |
| 6 | Spacer | Brass |
| 7 | O-Ring | NBR 70 |
| 8 | Threads | Brass with White Sealant |
| Crossover Series: |
|---|
| PQ88PS |
| Part Number | Tube O.D. x Male NPT | Approx. Weight (Lbs.) |
|---|---|---|
| 20187C (20-187C) |
1/4" x 1/8" | 0.02 |
| 20557C (20-557C) |
1/4" x 1/4" | 0.02 |
| 20188C (20-188C) |
3/8" x 1/4" | 0.04 |
| 20189C (20-189C) |
3/8" x 3/8" | 0.04 |
| 20193C (20-193C) |
3/8" x 1/2" | 0.07 |
| 20194C (20-194C) |
1/2" x 3/8" | 0.06 |
| 20195C (20-195C) |
1/2" x 1/2" | 0.09 |
Dimension Data can change without notice.
Additional Product Data:
Shape:
Y
Ends Configuration:
Material(s):
Seal Material(s):
