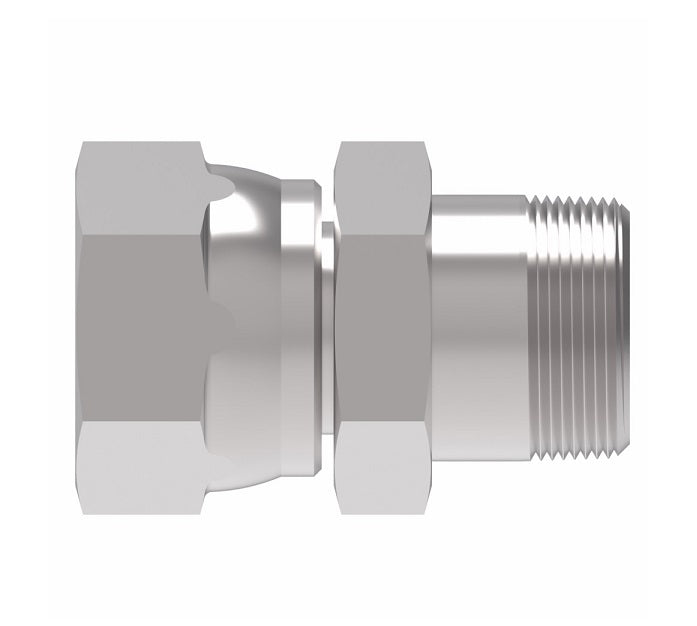

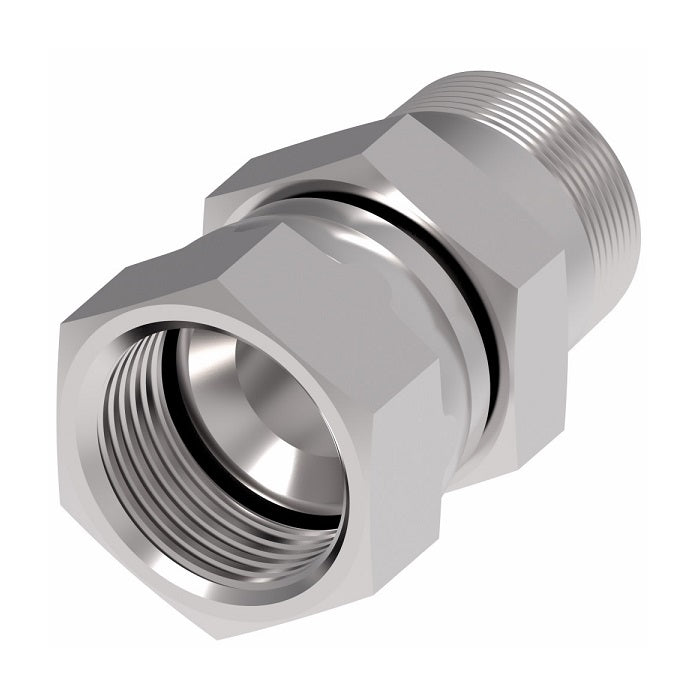

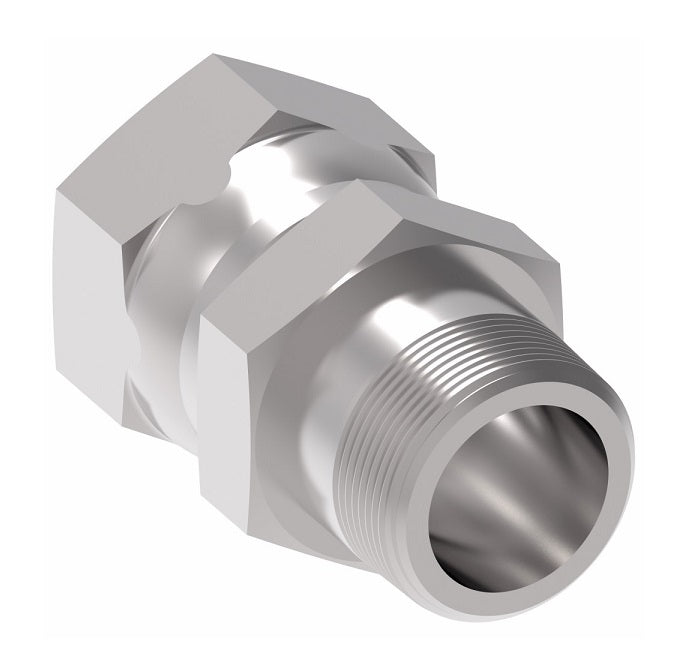

2018-4-4S Aeroquip by Danfoss | External Pipe/37° JIC Flare Swivel Adapter | -04 Male NPTF x -04 Female JIC | Steel
2018-4-4S Aeroquip by Danfoss | External Pipe/37° JIC Flare Swivel Adapter | -04 Male NPTF x -04 Female JIC | Steel
2018-4-4S Aeroquip by Danfoss | External Pipe/37° JIC Flare Swivel Adapter | -04 Male NPTF x -04 Female JIC | Steel

2018-4-4S Aeroquip by Danfoss | External Pipe/37° JIC Flare Swivel Adapter | -04 Male NPTF x -04 Female JIC | Steel

Minimum Order Quantity: 5 Units

Sale price$5.63
In stock
Buy more, save moreDiscounts applied in cart/checkout.
Part Number
Steel		 Tube O.D. Thread P Thread T A
2018-2-4S 0.25" 1/8-27 7/16-20 1.32"
2018-4-4S 0.25" 1/4-18 7/16-20 1.50"
2018-4-5S - - - -
2018-4-6S 0.38" 1/4-18 9/16-18 1.59"
2018-6-6S 0.38" 3/8-18 9/16-18 1.59"
2018-6-8S 0.50" 3/8-18 3/4-16 1.74"
2018-6-10S 0.63" 3/8-18 7/8-14 1.92"
2018-8-8S 0.50" 1/2-14 3/4-16 1.93"
2018-8-10S - - - -
2018-8-12S - - - -
2018-12-12S 0.75" 3/4-14 1-1/16-12 2.15"
2018-12-16S - - - -
2018-16-16S 1.00" 1-11-1/2 1-5/16-12 2.54"
2018-20-20S 1.25" 1-1/4-11-1/2 1-5/8-12 2.78"

Additional Product Data:

Shape:

Straight

Ends Configuration:
  • 1/4in Male NPTF
  • 1/4in Female JIC
Material(s):
  • Steel
